Heater Core Temperature Sensor / Switch: Service and Repair

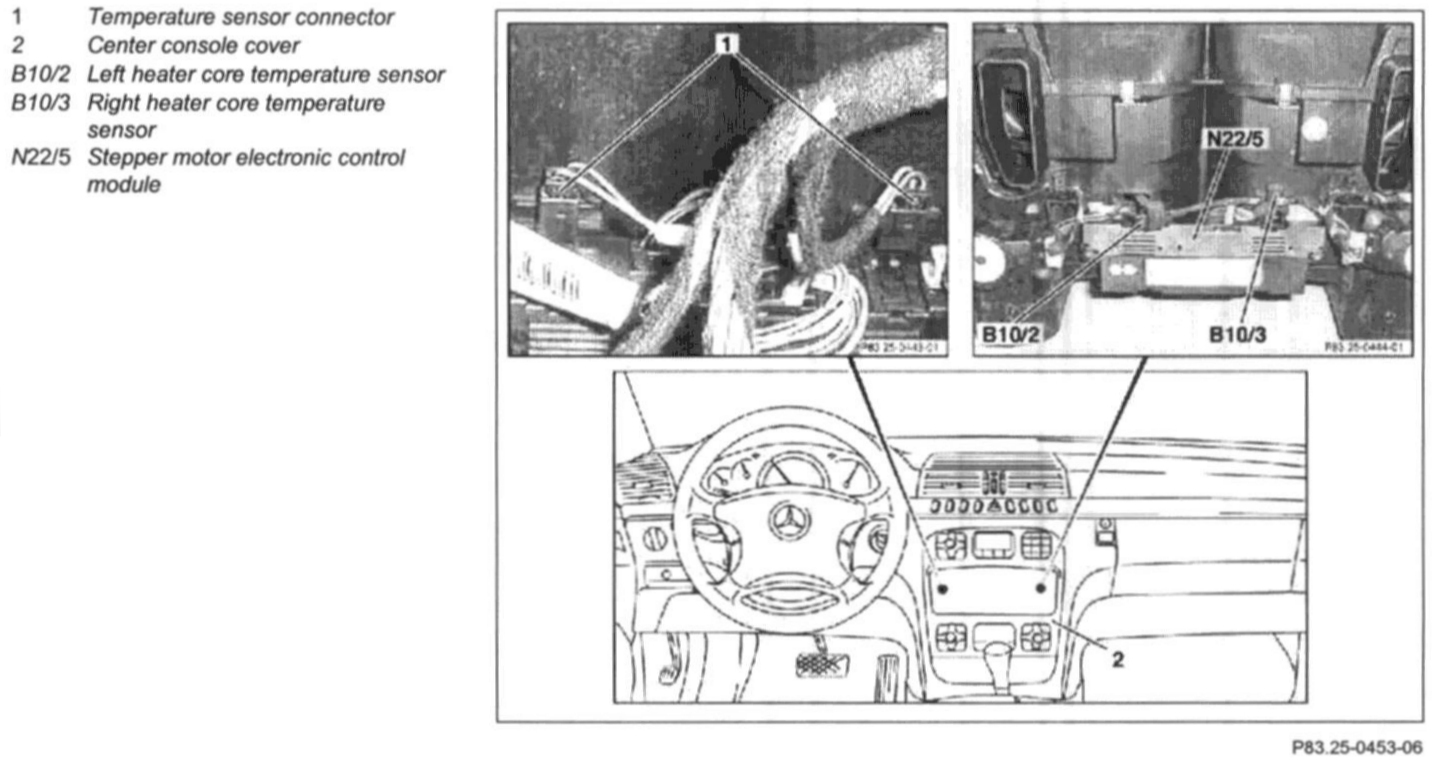

AR83.25-P-1110M Remove/Install Heater Core Temperature Sensor 1
Remove cover on center console (2)
2
Disconnect connectors (1)
3
Pull left
heat exchanger temperature sensor (B10/2) out of A/C housing
4
Pull right heat exchanger temperature sensor (810/3) out of A/C housing
5
Install in opposite order.
