Control Module HVAC: Service and Repair

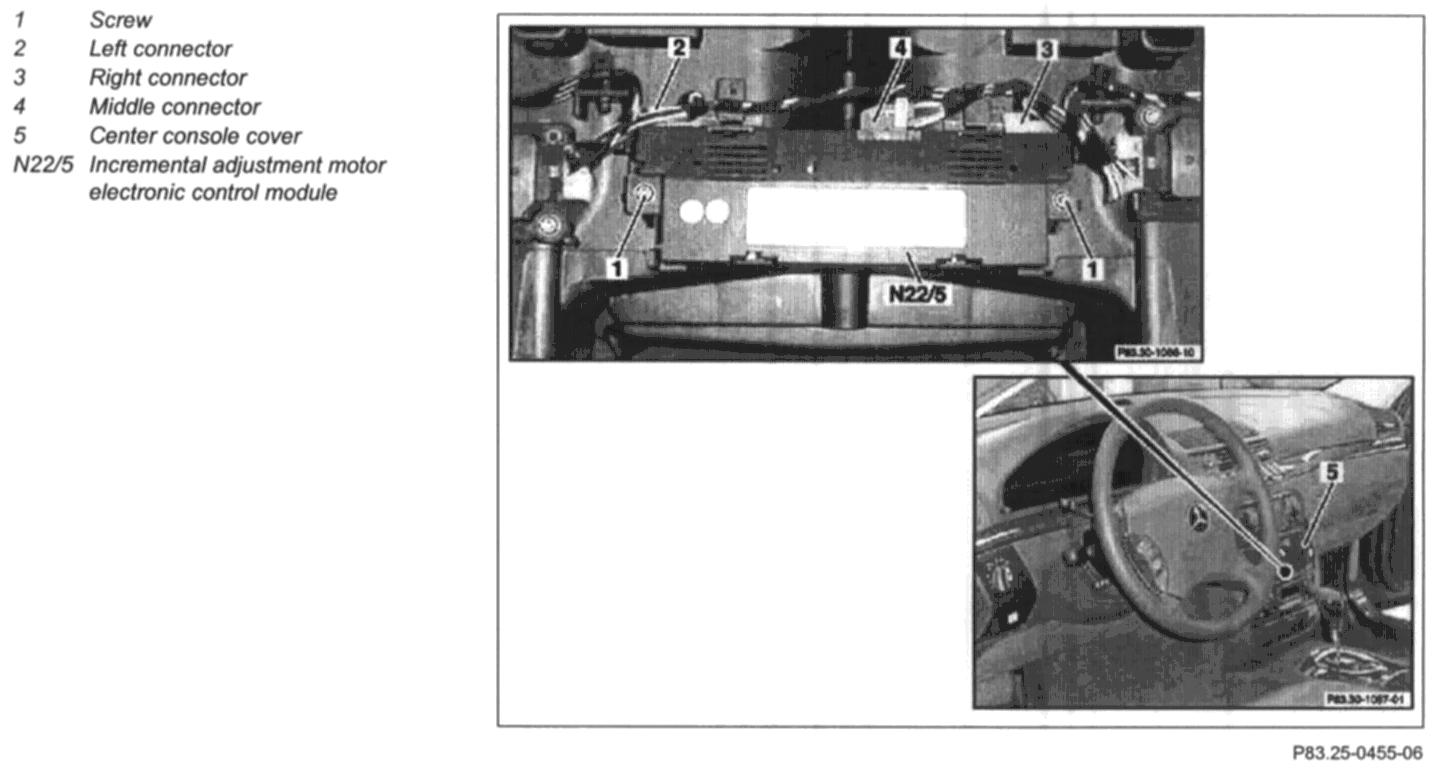

AR83.30-P-2005M Remove/Install Incremental Adjustment Motor Electronic Control Module 1
Remove cover from center console (5)
2
Disconnect connectors (2, 3 and 4)
NOTE: Connection and disconnection aid.
3
Unscrew screws (1)
4
Remove
incremental adjustment motor electronic control module (N22/5)
5
Install in opposite order.
6
Synchronize incremental adjustment motors.
