Solar Sensor: Service and Repair

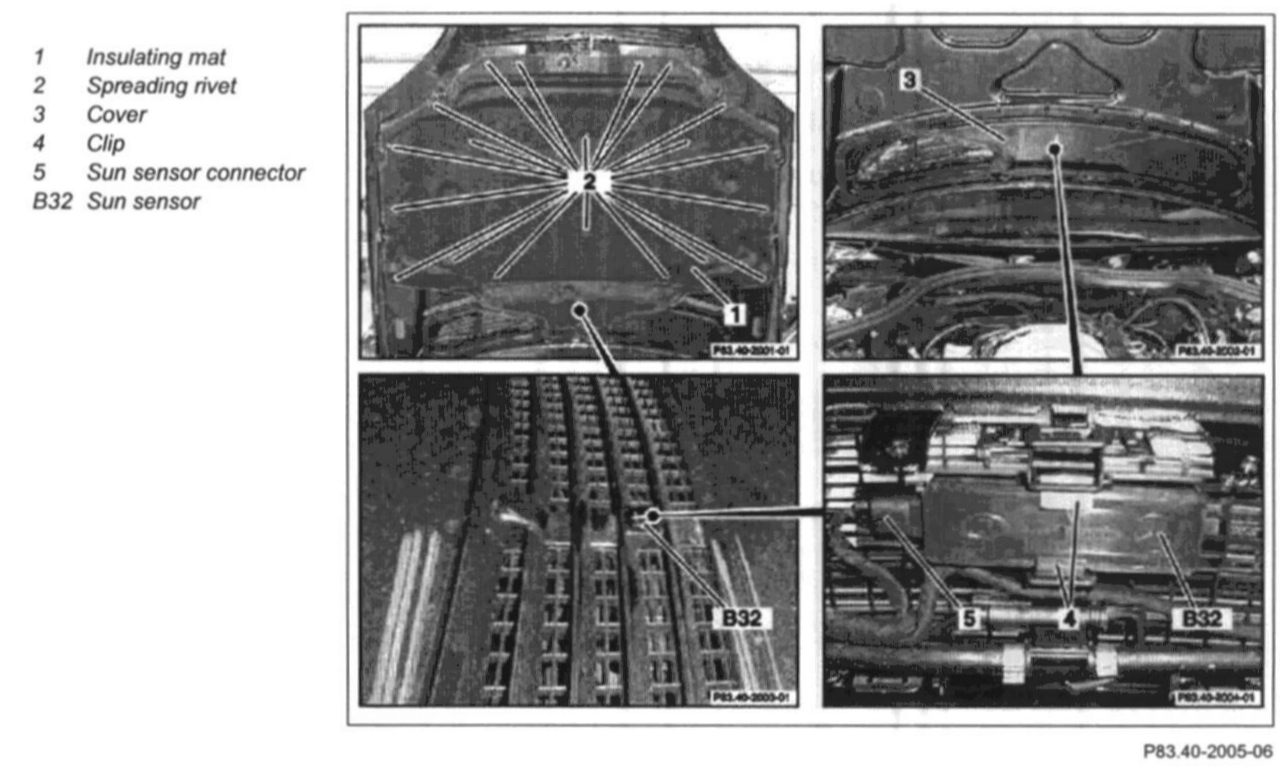

AR83.40-P-6720M Remove/Install Sun Sensor 1
Remove spreading rivets (2)
2
Remove insulating
mat (1)
3
Unclip cover (3)
4
Disconnect connector for
sun sensor (5)
5
Press clip (4) together and pull out
sun sensor(B32)
NOTE: When the
sun sensor is to be replaced, the old mounting clip must be reused for installation.
6
Install in opposite order.
