Headlamp Alignment Control Module: Service and Repair

AR82.10-P-4081M Remove/Install Headlamp Range Adjustment Control Module
- with CODE (612b) Xenon headlamps

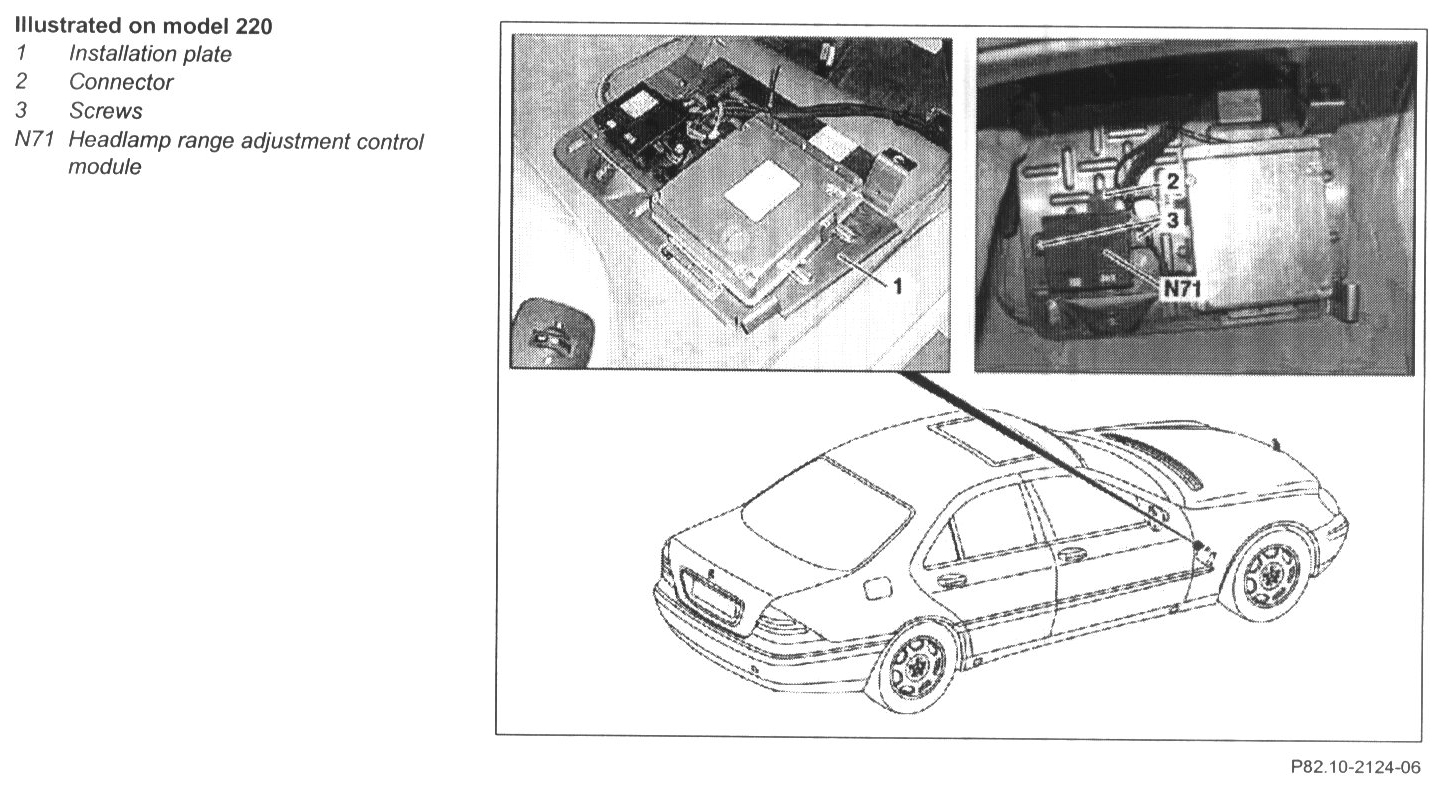

Illustrated On Model 220:

1 Connect quiescent current retention unit
2 Disconnect ground lead from battery
3 Fold back floor covering in passenger footwell and remove Styrofoam panel
4 Remove mounting plate (1) in passenger footwell and fold down into footwell

NOTE: Grip mounting plate at top and fold down into footwell

5 Release catch and disconnect connector (2)
6 Unscrew screws (3) and remove headlamp range adjustment control module (N71) from mounting plate
7 Install in opposite order.
