O2 Sensors, Location

O2 Sensors, Position




Engine 112, 113

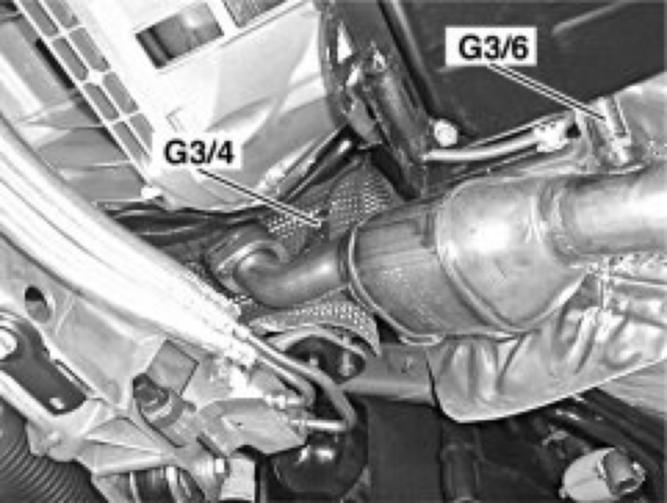

G3/4 O2 sensor on right, upstream of TWC
G3/6 O2 sensor on right, downstream of TWC




Engine 112, 113

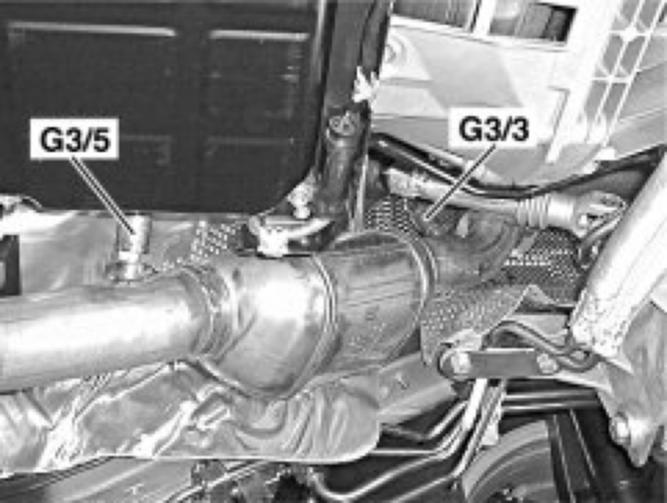

G3/3 O2 sensor on left, upstream of TWC
G3/5 O2 sensor on left, downstream of TWC




Position on engine 137

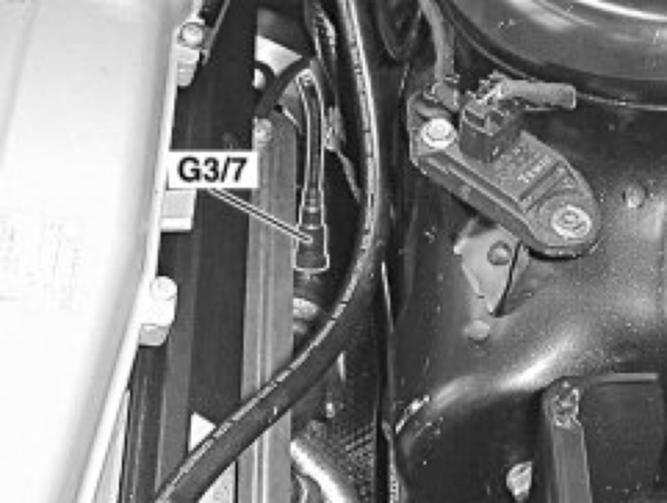

G3/7 O2 sensor on left upstream of TWC Cylinders 7 - 9




Position on engine 137

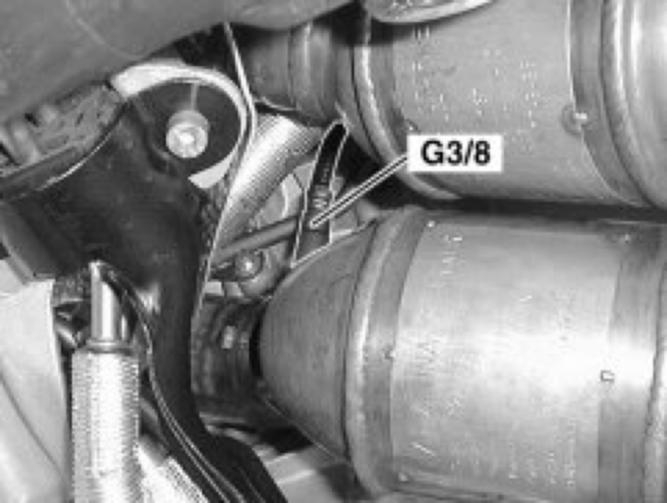

G3/8 O2 sensor on left upstream of TWC Cylinders 10 - 12




Position on engine 137

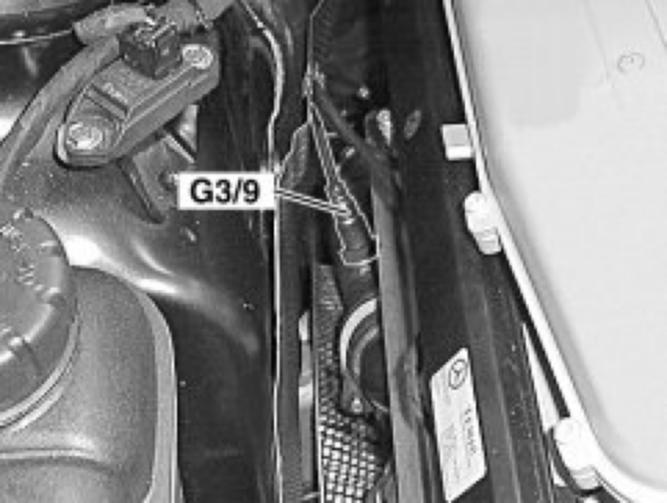

G3/9 O2 sensor on right upstream of TWC Cylinders 1 - 3




Position on engine 137

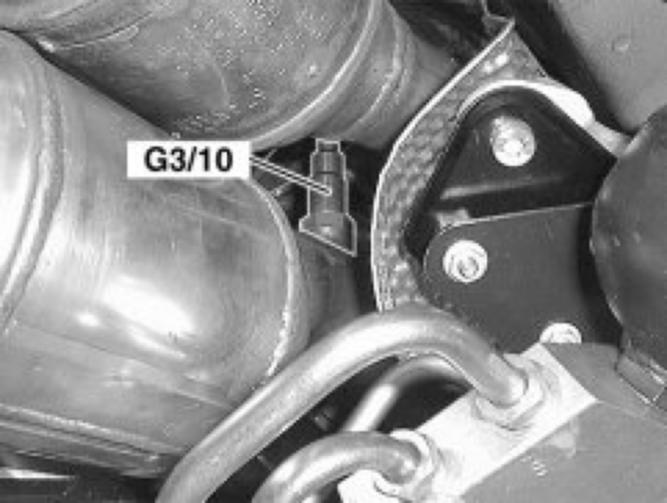

G3/10 O2 sensor on right upstream of TWC Cylinders 4 - 6




Position on engine 137

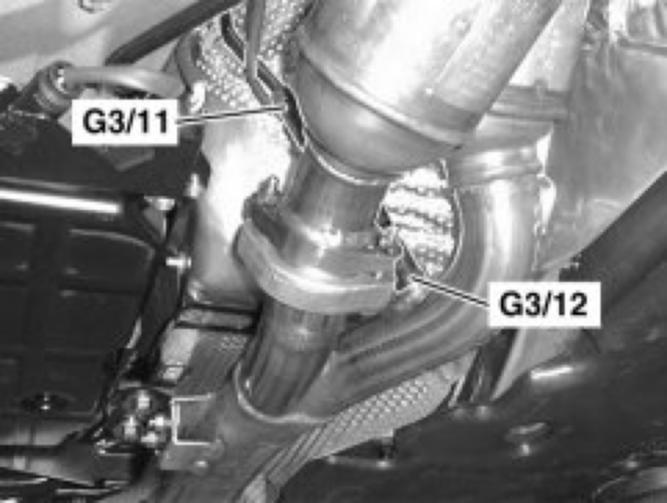

G3/11 O2 sensor on left downstream of TWC Cylinders 7 - 9
G3/12 O2 sensor on left downstream of TWC Cylinders 10 - 12




Position on engine 137

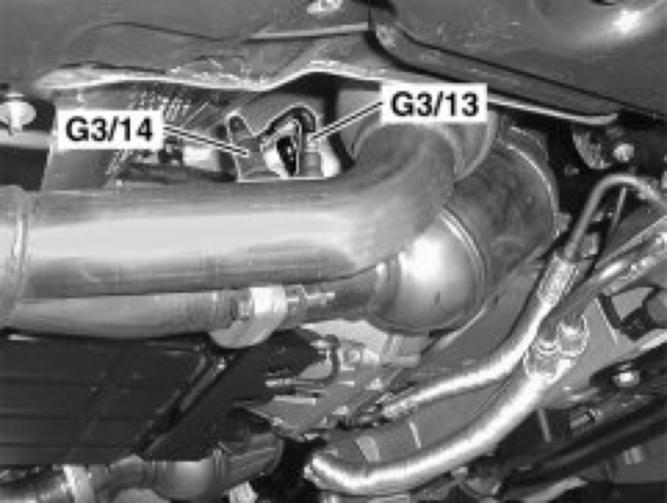

G3/13 O2 sensor on right downstream of TWC Cylinders 1 - 3
G3/14 O2 sensor on right downstream of TWC Cylinders 4 - 6
