Oxygen Sensor: Service and Repair

Removing and Installing Oxygen Sensor

Shown On Model 220:

Work instructions

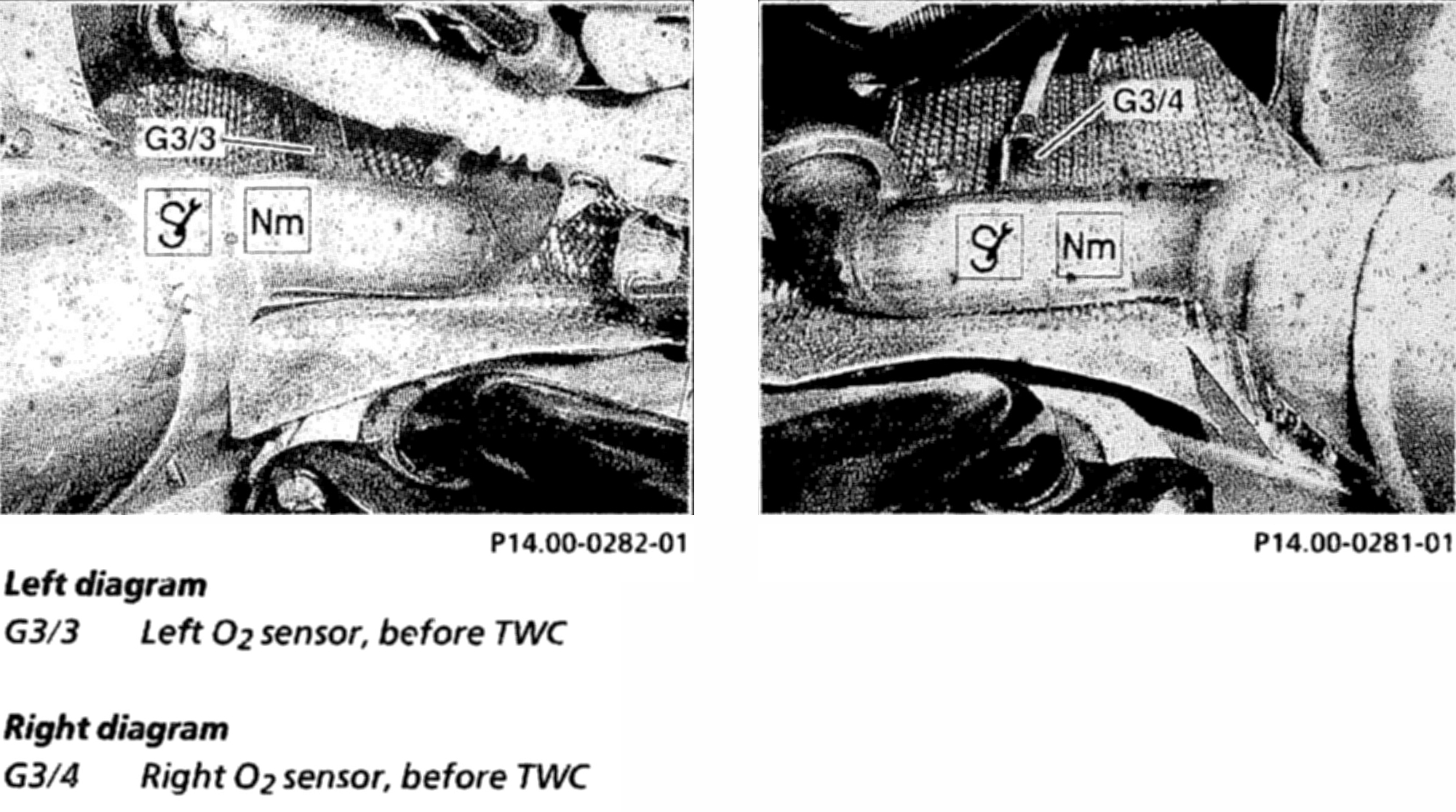

G3/3, G3/4 Oxygen sensor


NOTE: Installation: Coat thread on oxygen sensor with heat-resistant lubricant.


Refer to Repair Products below
Refer to O2 Sensor below
Refer to Special Tool below

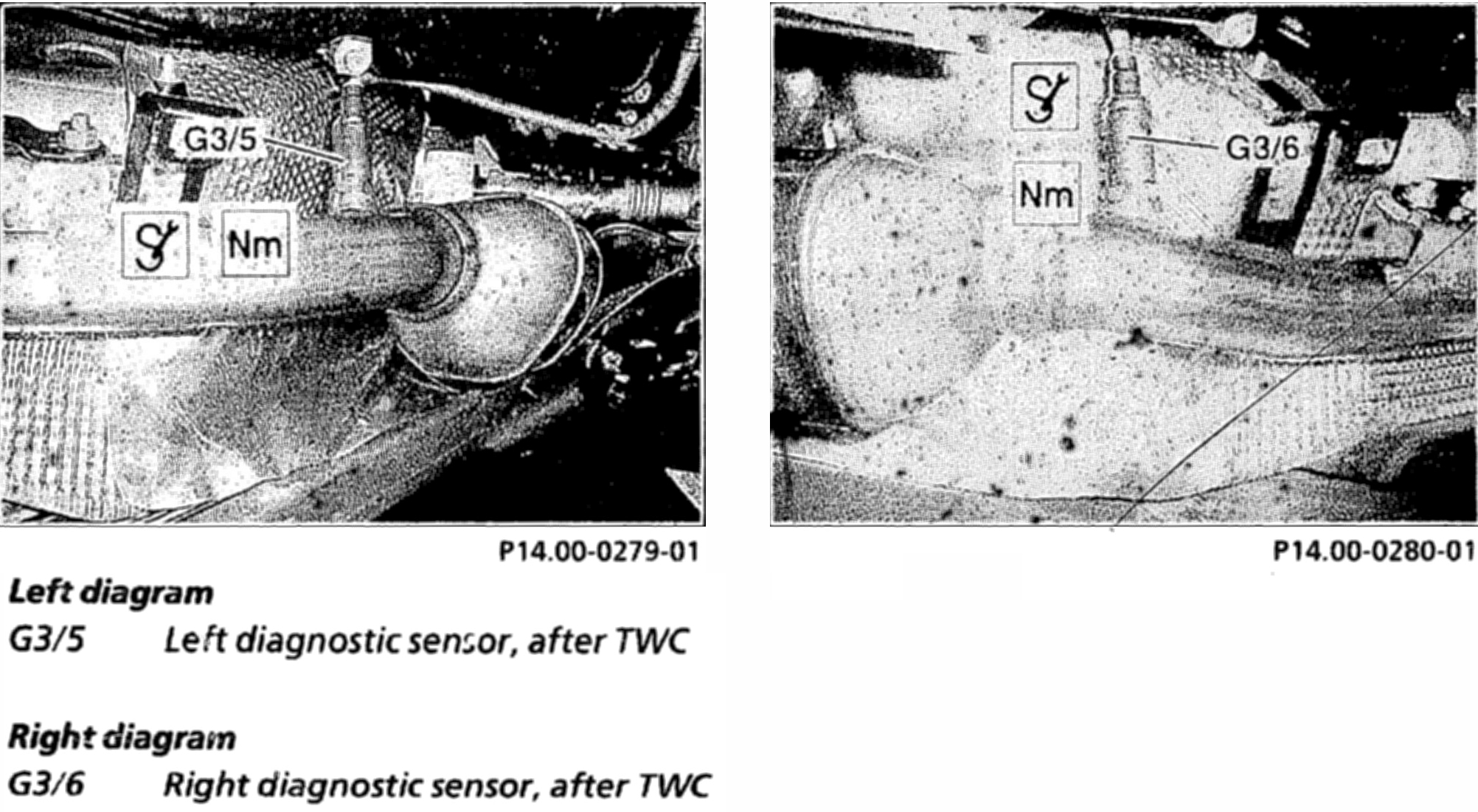

G3/5, G3/6 Diagnostic sensor


NOTE: Installation: Coat thread on diagnostic sensor with heat-resistant lubricant.


Refer to Repair Products below
Refer to O2 Sensor below
Refer to Special Tool below

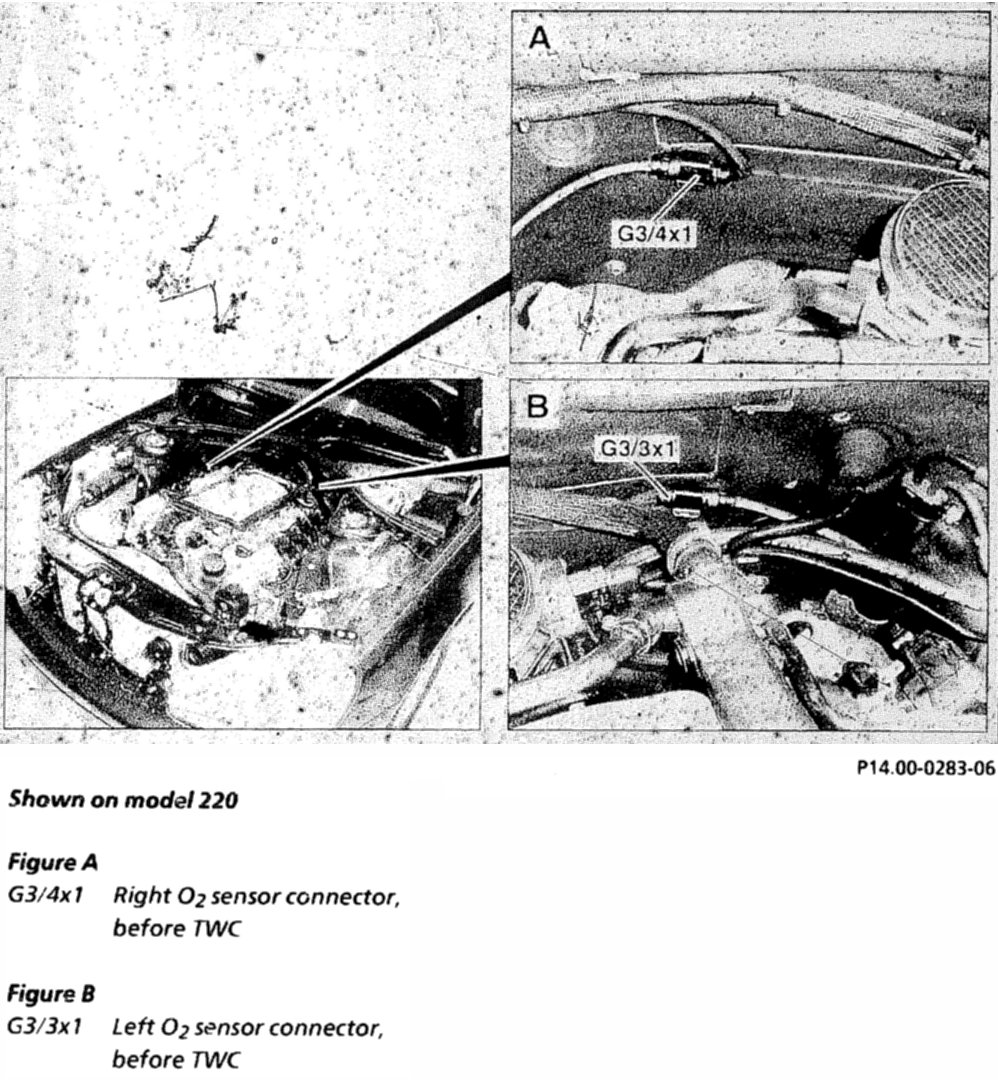

G3/3x1, G3/4x1 Oxygen sensor connector
- Left and right, before TWC

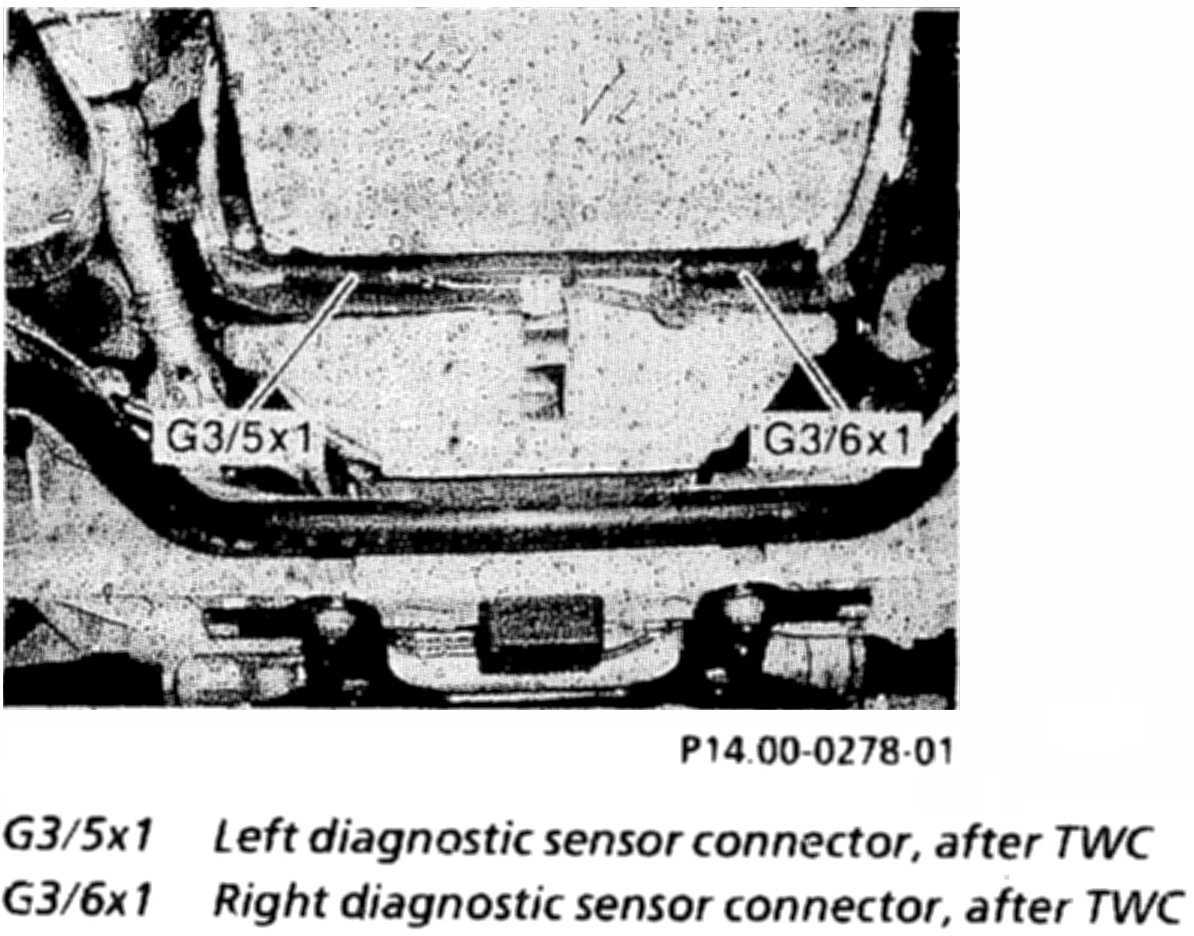

G3/5x1, G3/6x1 Diagnostic sensor connector
- Left and right, after TWC

O2 Sensor:

Repair Products:

Special Tool:
