Distronic Switch Block, Function

Distronic Switch Block, Function

ENGINES 112, 113, 137, 275, 613, 628 in MODEL 220 with CODE (219a) Distronic (DTR)
ENGINES 113, 137, 275 in MODEL 215 with CODE (219a) Distronic (DTR)
ENGINES 112, 113 in MODEL 230 with CODE (219a) Distronic (DTR)
ENGINES 112, 113, 271, 646, 647, 648 in MODEL 211 with CODE (219a) Distronic (DTR)
ENGINE 112, 113, 271, 612 in MODEL 209 with CODE (219a) Distronic (DTR)
ENGINE 285 in MODEL 240 with CODE (219a) Distronic (DTR)
ENGINE 113, 272 in MODEL 219 with CODE (219a) Distronic (DTR)

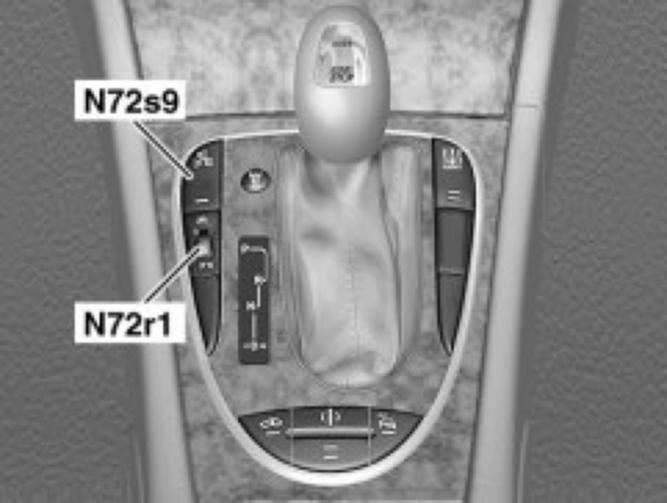

Shown on models 211, 219
N72 DTR distance potentiometer
N72s9 DTR switch (distance warning function)

Upper control panel control unit (models 215, 220) or lower control panel control unit (models 209, 211, 219, 230, 240) detect the switch and potentiometer position and transfer them onto the CAN interior compartment.
