AR01.10-P-0010-01L Connect Compression Tester



AR01.10-P-0010-01L Connect compression tester
Information on preventing damage to electronic components due to electrostatic discharge

Special Tools:




Component Identification:

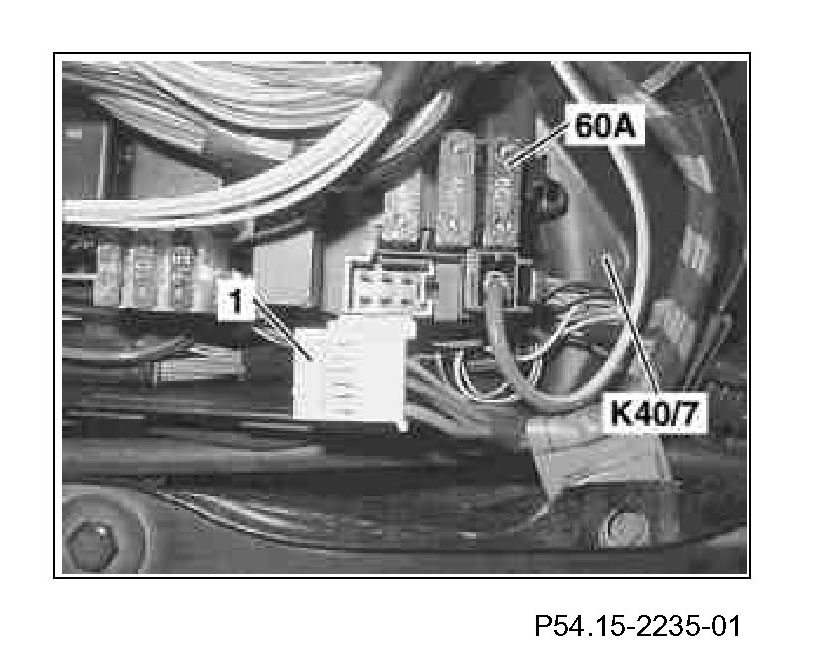

1 Remove cover of right front fuse and relay module (K40/7) in the engine compartment.
2 Pull out engine fan maxi fuses (60A) from right front fuse and relay module (K40/7).
3 Detach white connector (1).

Component Identification:

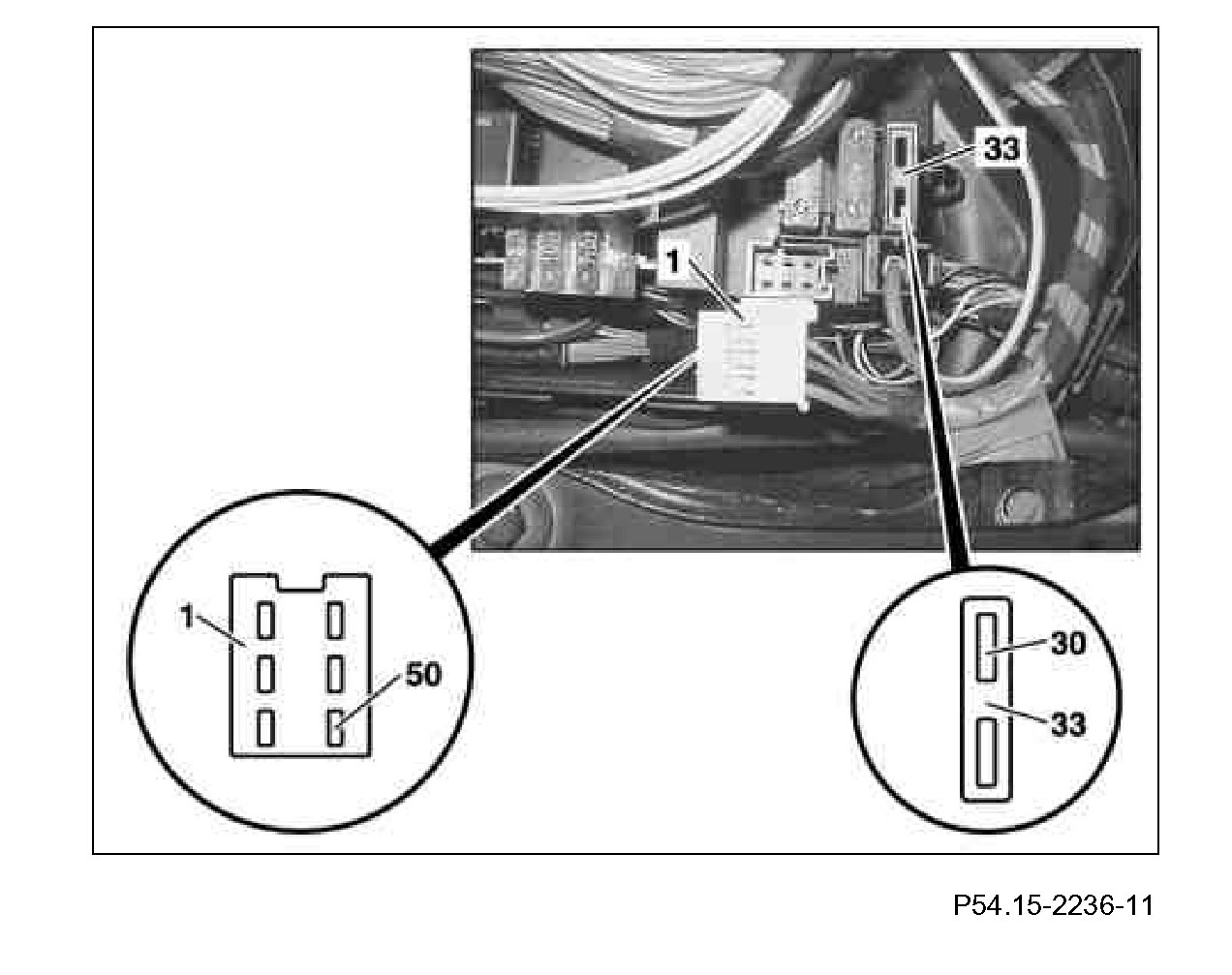

4 Connect compression tester with adapter lines to the base terminal (30) of the fuse plug station (33) and the plug-in terminal (50) of the white plug (1).
