Headlamp Control Module: Service and Repair
AR82.10-P-4632N Remove/Install Xenon Headlamp Control Module
- with CODE (612) Xenon headlamp unit

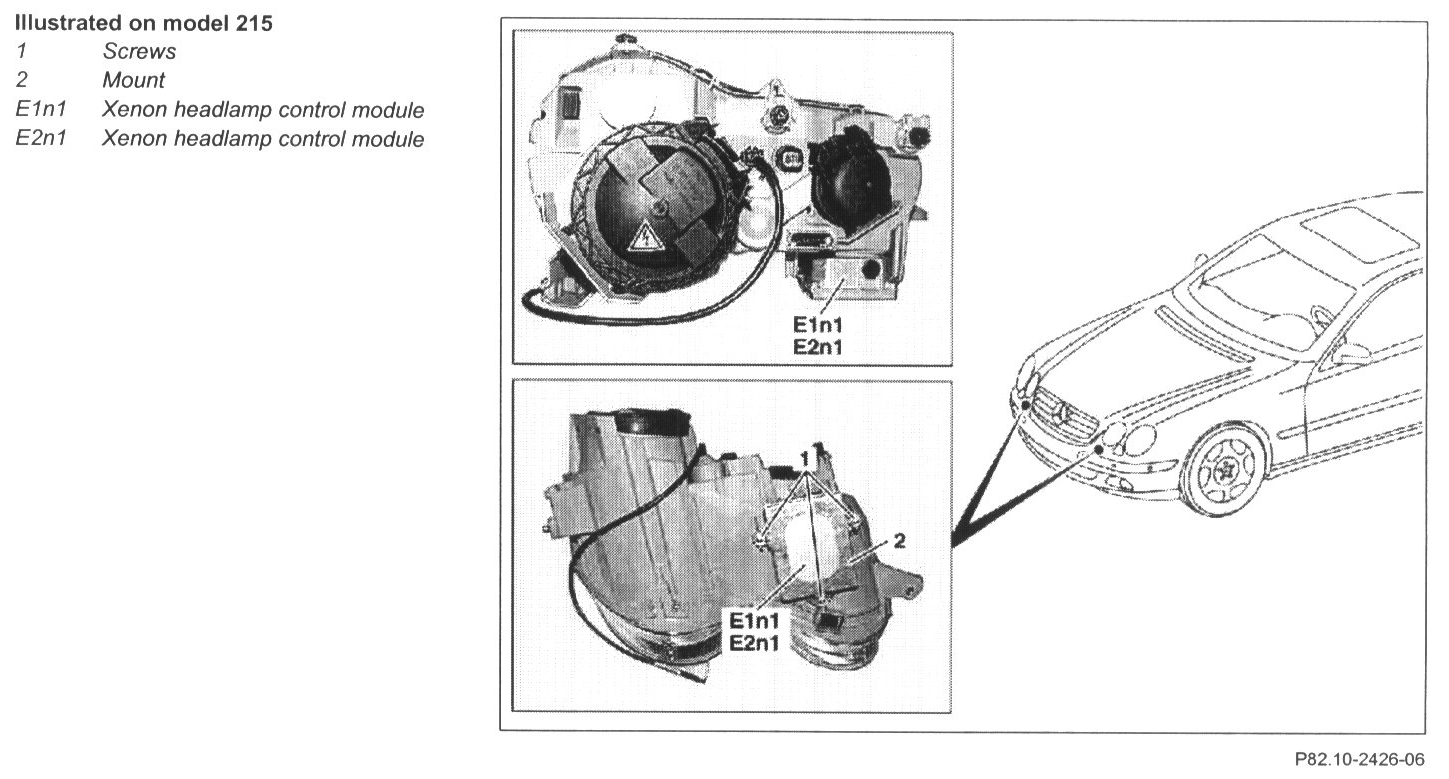

Illustrated On Model 215:
DANGER:
- Contact with components under high voltage can pose lethal hazard
- Do not touch parts under high voltage. Persons with electronic implants (e.g. pacemakers) should not perform work on ignition system.
- High voltage from xenon headlamps
- Do not touch parts under high voltage. Persons with electronic implants (e.g. pacemakers) should never work on xenon headlamps.
1 Removing and installing headlamp unit
2 Unscrew screws (1) and remove mount (2)
3 Disconnect xenon headlamp control module (E1n1, E2n1) from headlamp
4 Install in the reverse order
5 Check for proper function.
