Cassette Mode, Function

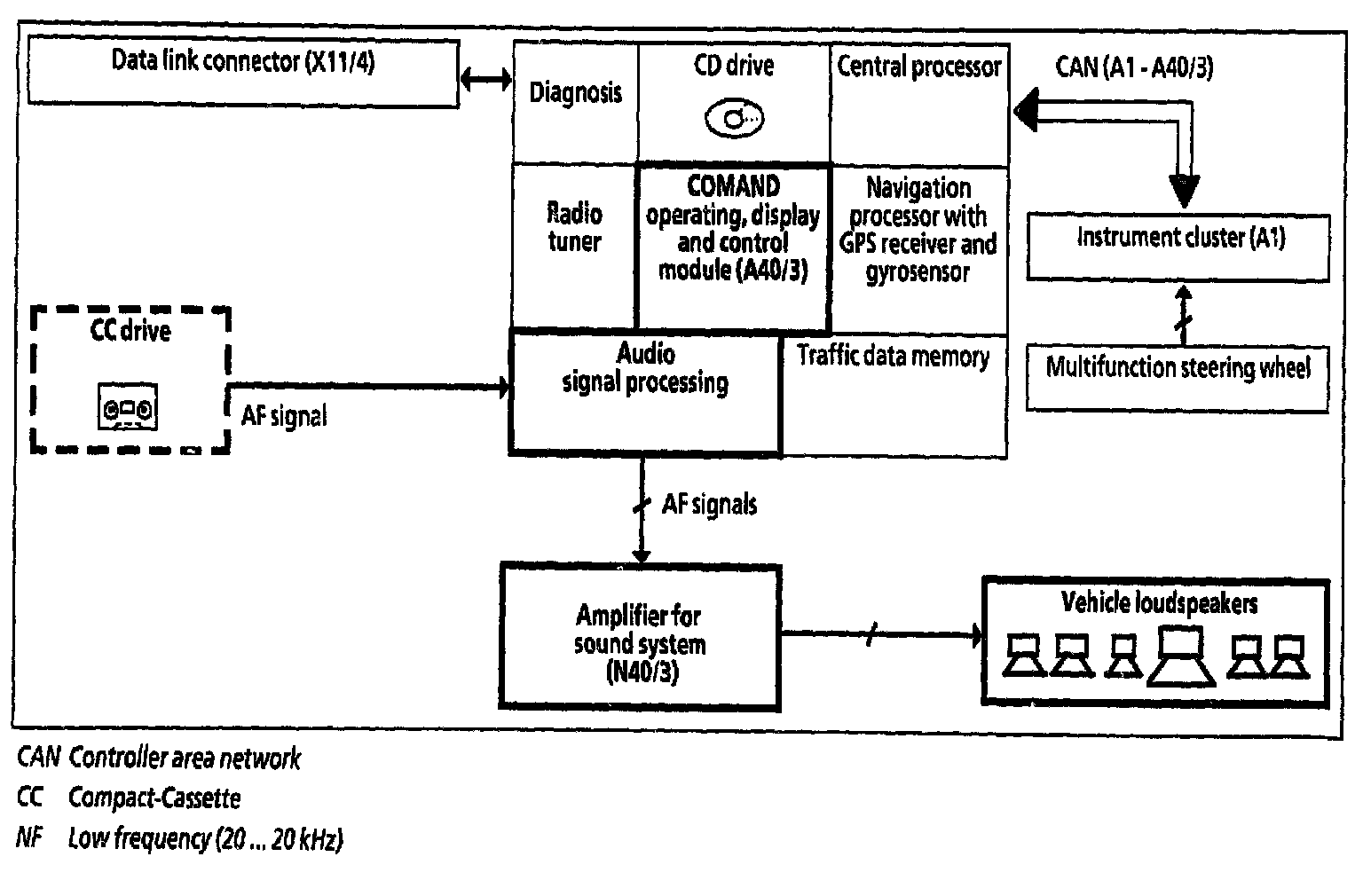

Block diagram of COMAND cassette mode, illustrated with the following equipment:

- Sound system (code 810)

The marked elements are the components which are essentially used for cassette mode.

A 3.5 mm standard jack is installed in the glove compartment with which a standard walkman or discman can be connected. The audio signals are preamplified by the COMAND operating, display and control module (A40/3) and the desired tone settings made (volume, bass, trebble and fader). The sound system amplifier (N40/3) (only with code 810) is responsible for final amplification of the signals before they are fed to the vehicle loudspeakers (see figure).
