Refrigeration System Test Program

Air Conditioning (A/C)

Models 208 as of MY 1998

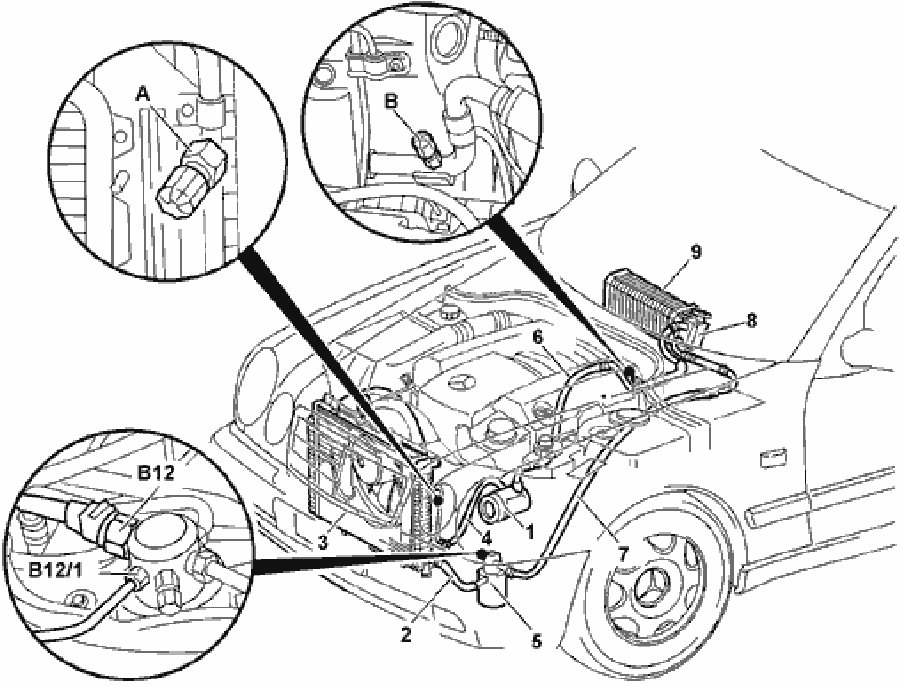

Refrigeration System Test Program - Component Locations

A High pressure connection
B Low pressure connection (engine 112)
B12 Refrigerant pressure sensor
B12/1 Refrigerant temperature sensor
1 A/C compressor
2 High pressure line
3 Condenser
4 Low pressure line
5 Receiver/dryer
6 Suction line
7 Low pressure line to evaporator
8 Expansion valve
9 Evaporator
