Abbreviations For Wiring Diagrams

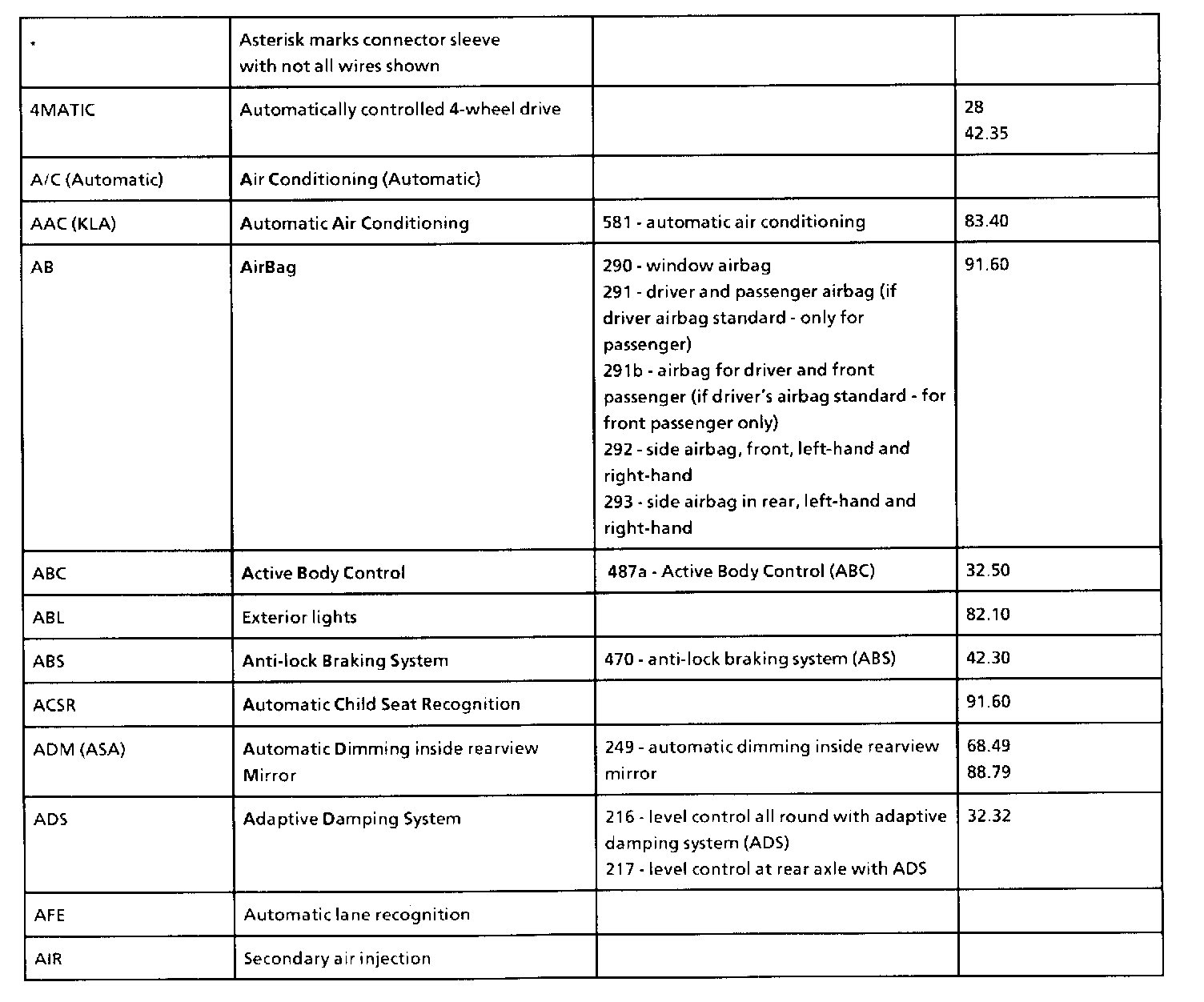

4MATIC - AIR:

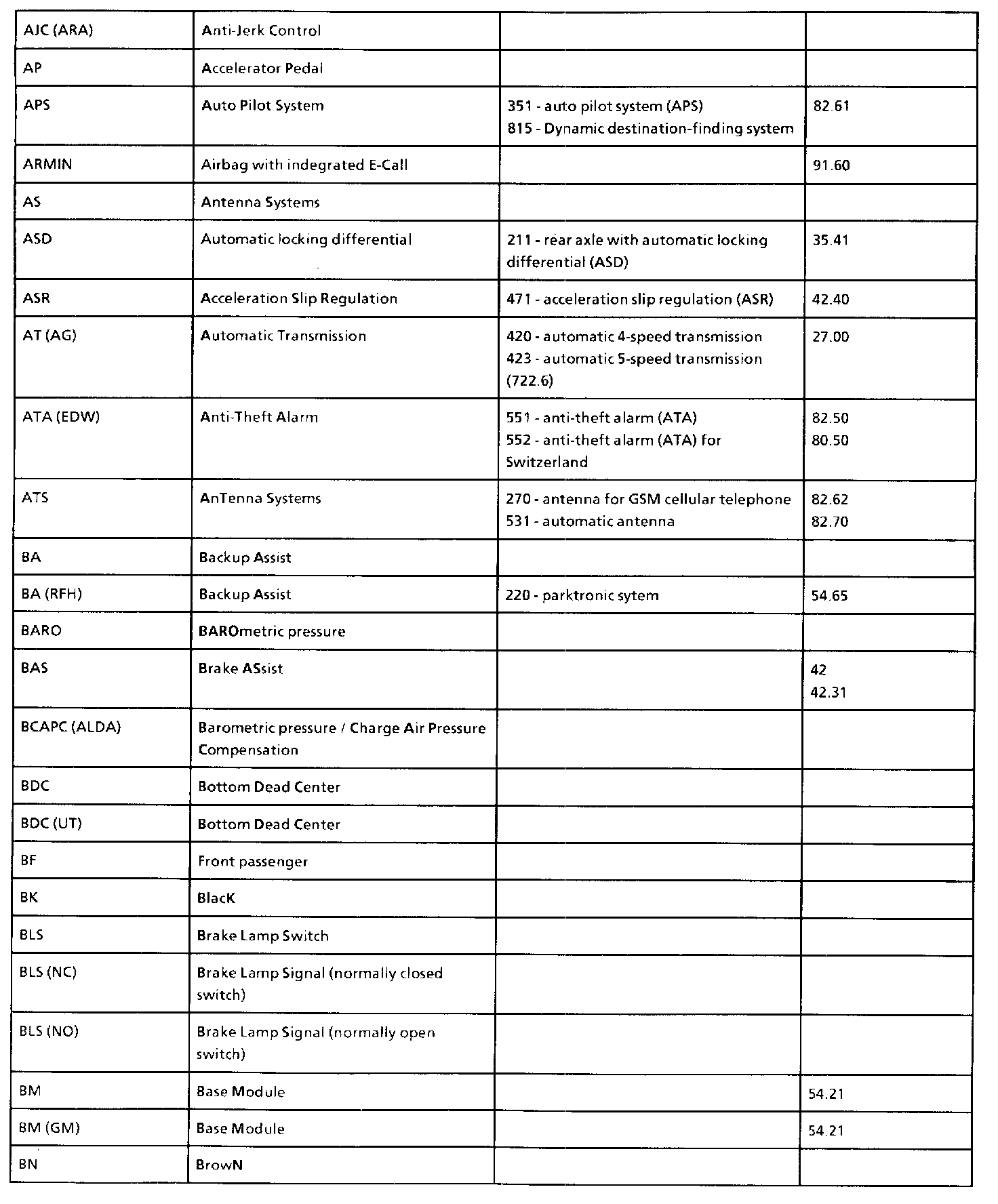

AIC (ARA) - BN:

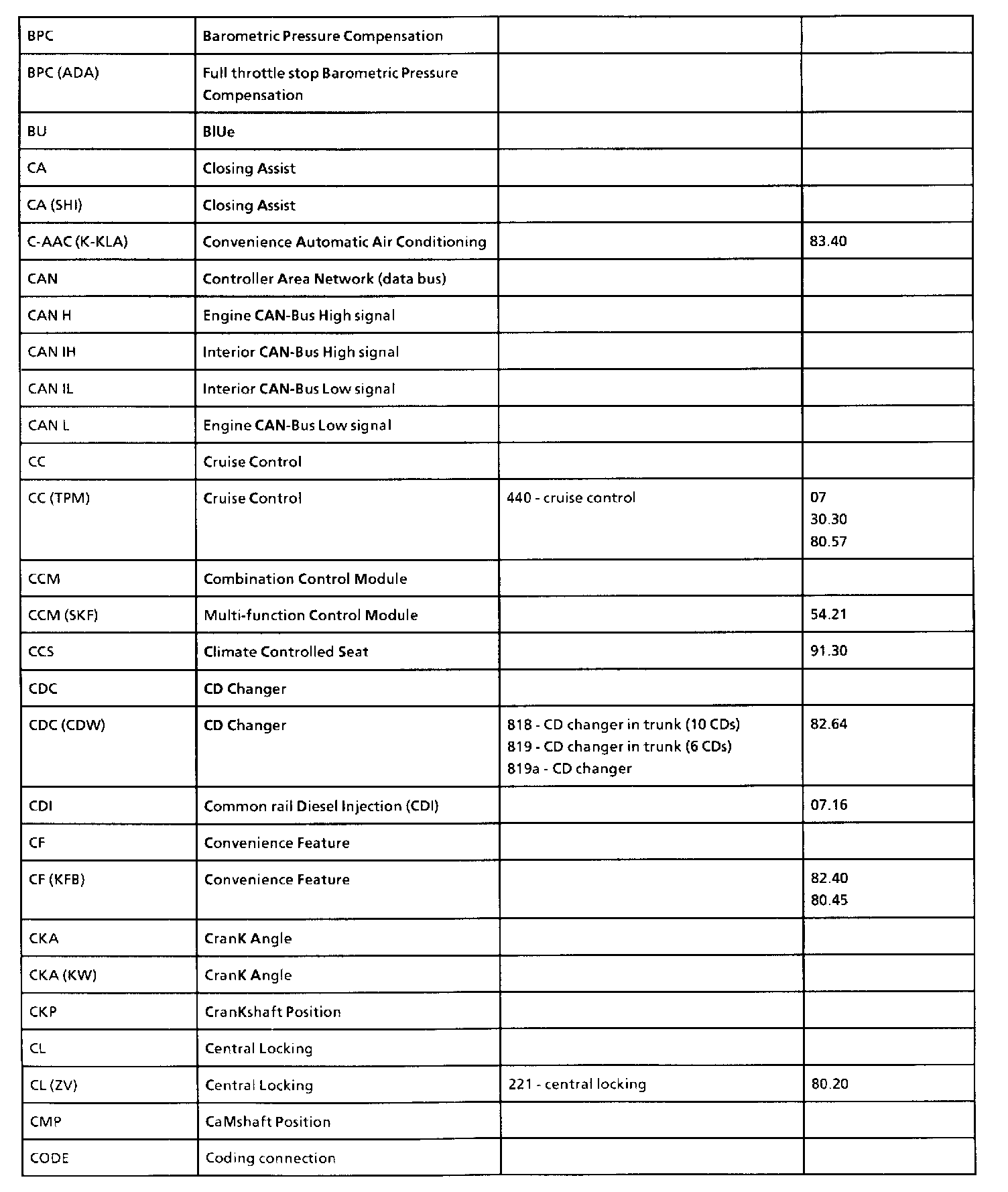

BPC - CODE:

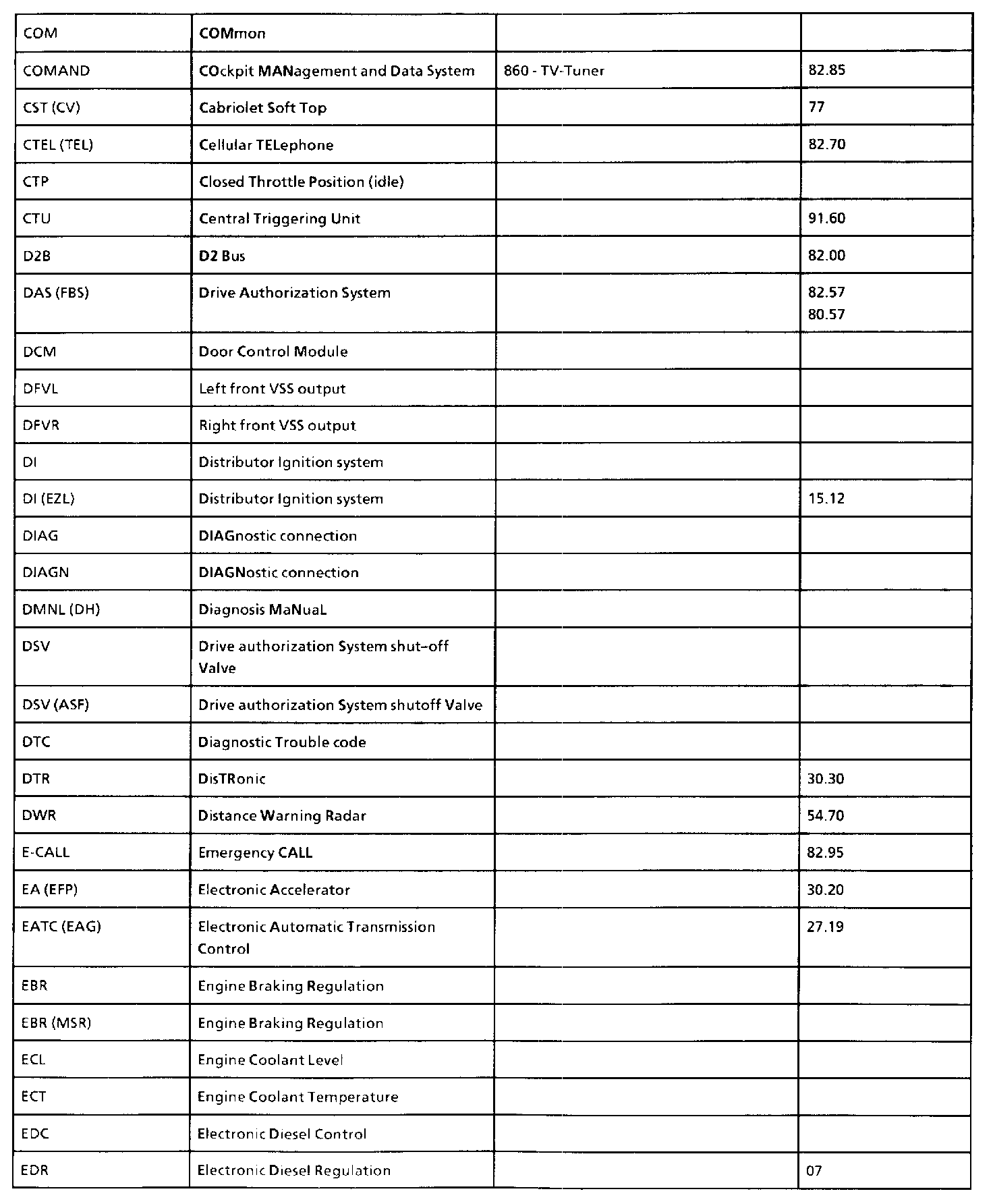

COM - EDR:

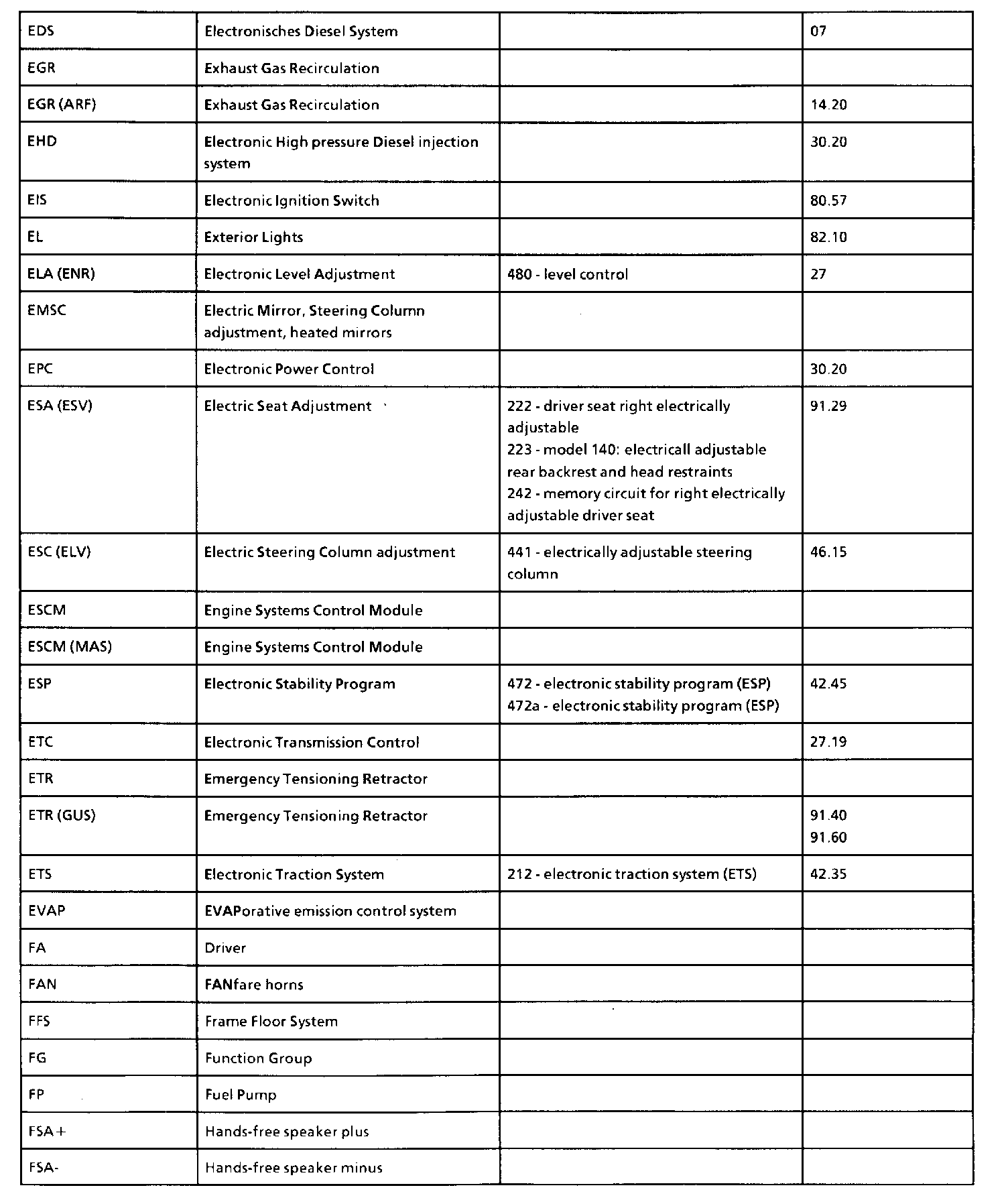

EDS - FSA:

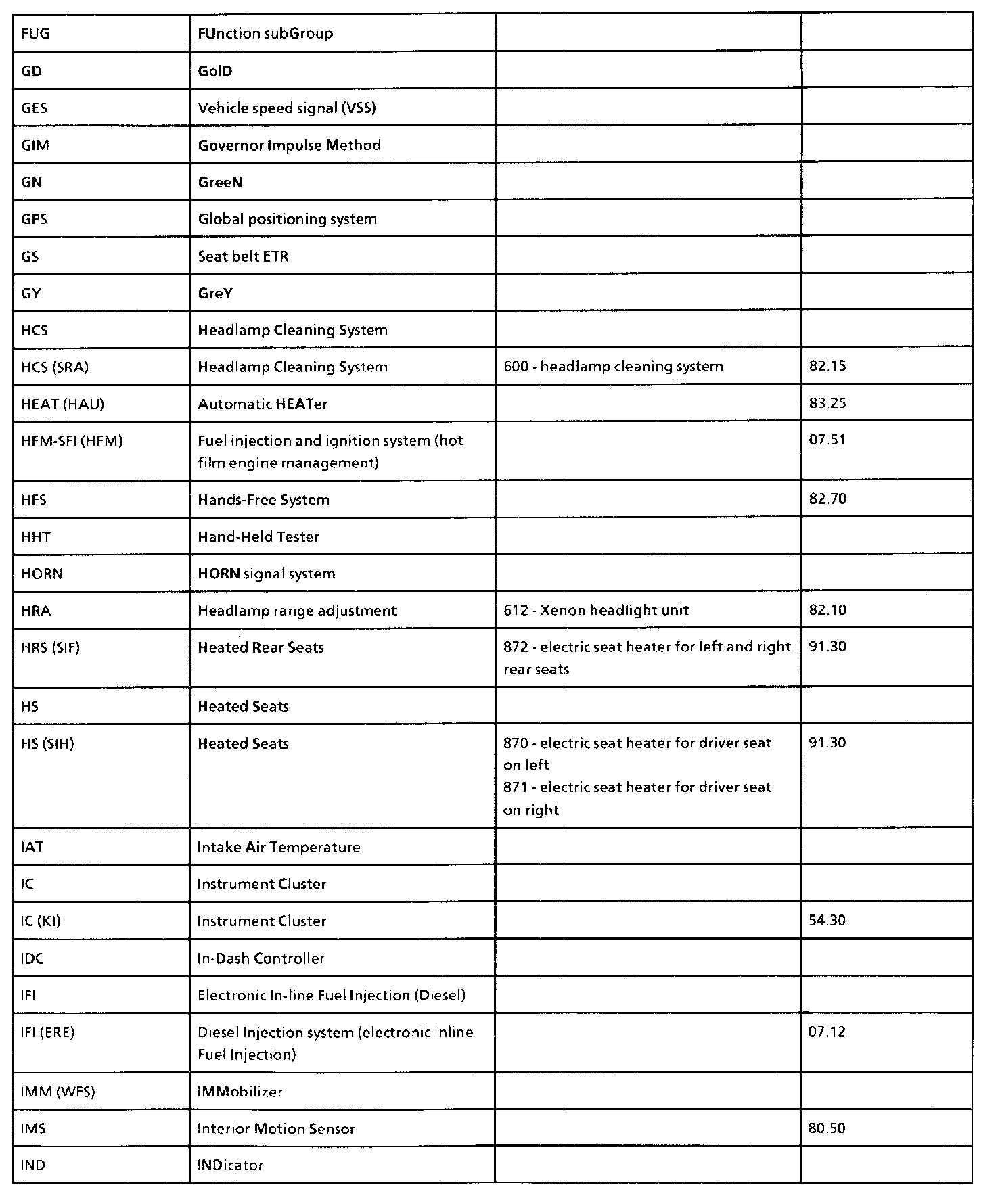

FUG - IND:

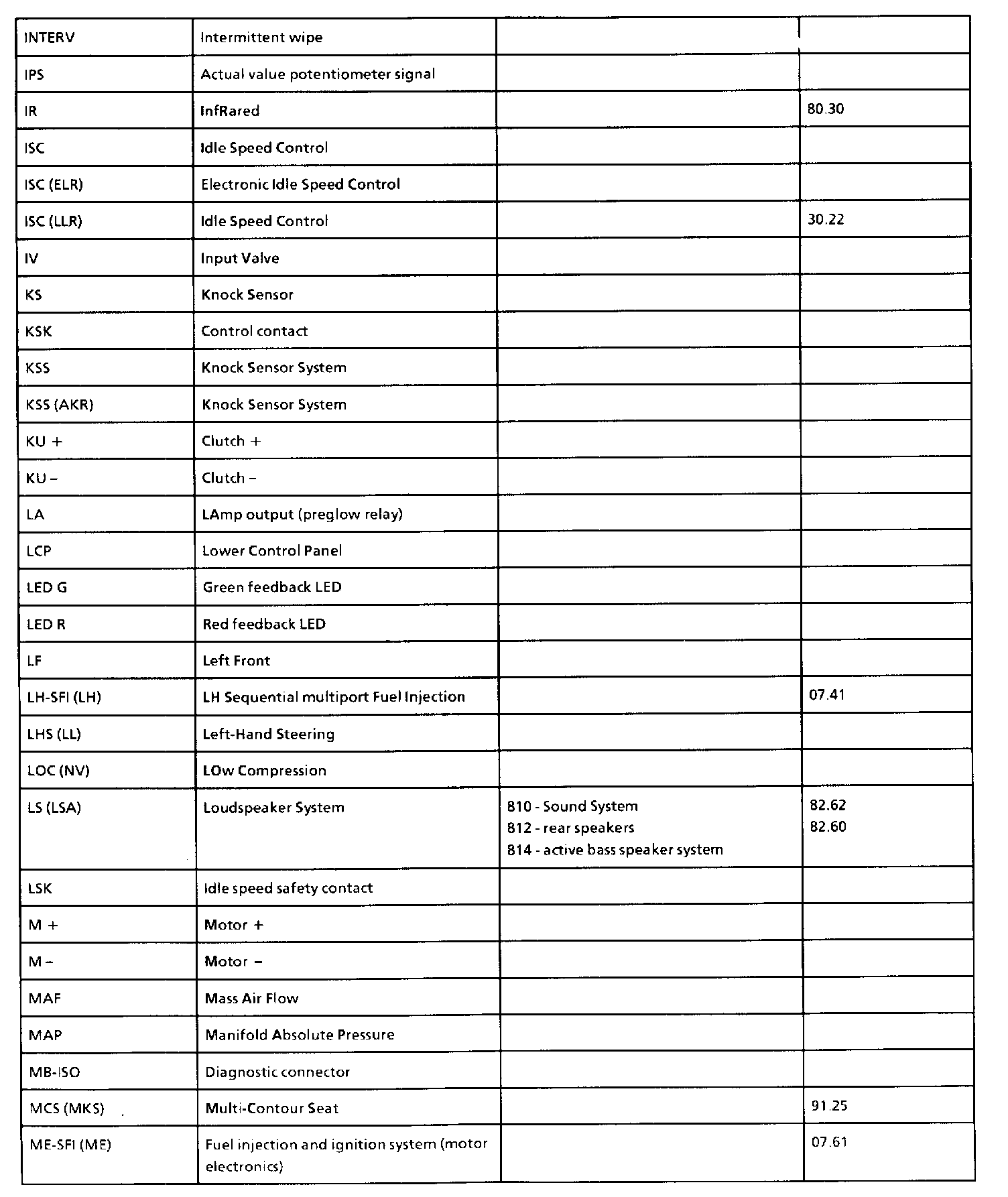

IPS - ME-SFI (ME):

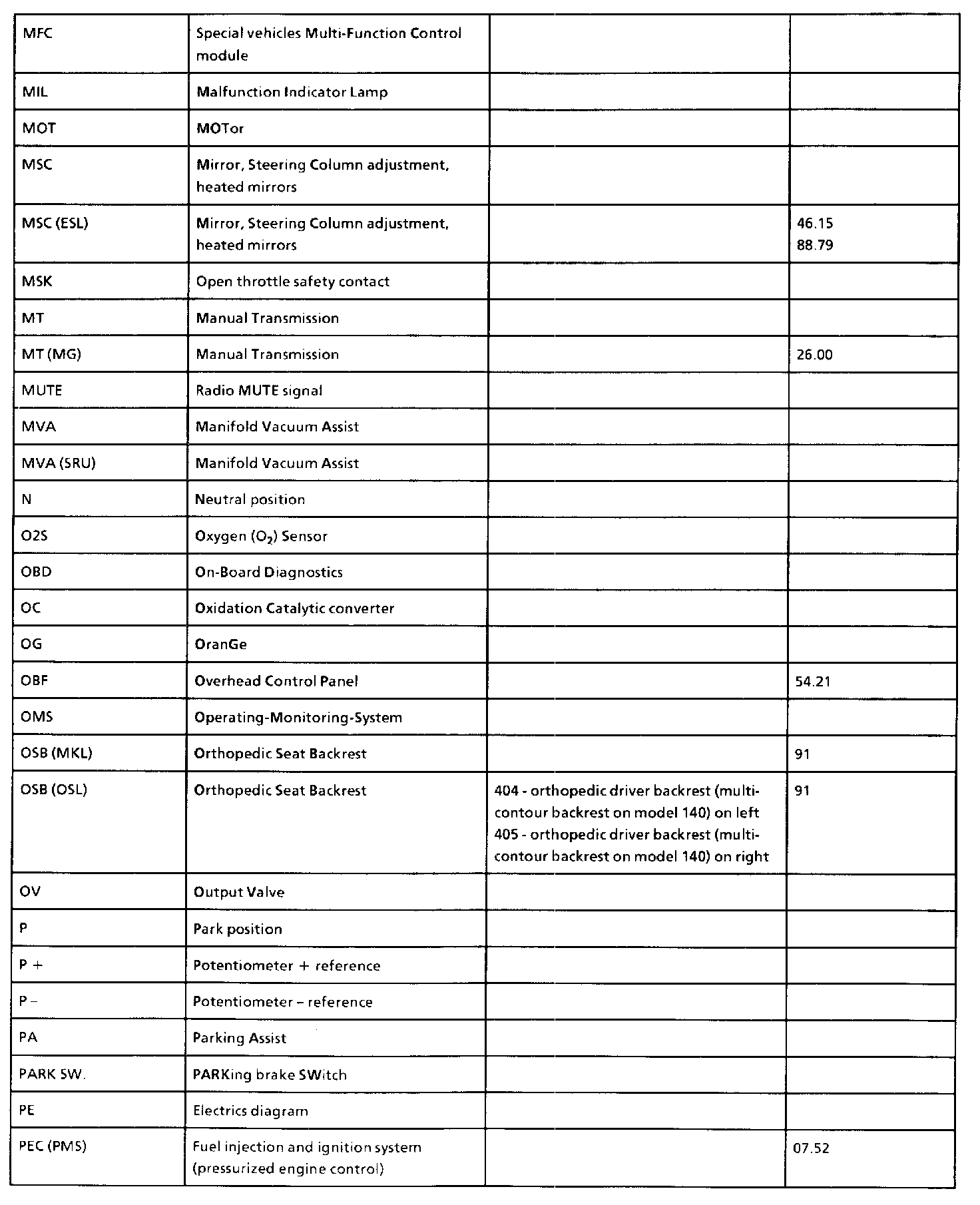

MFC - PEC (PMS):

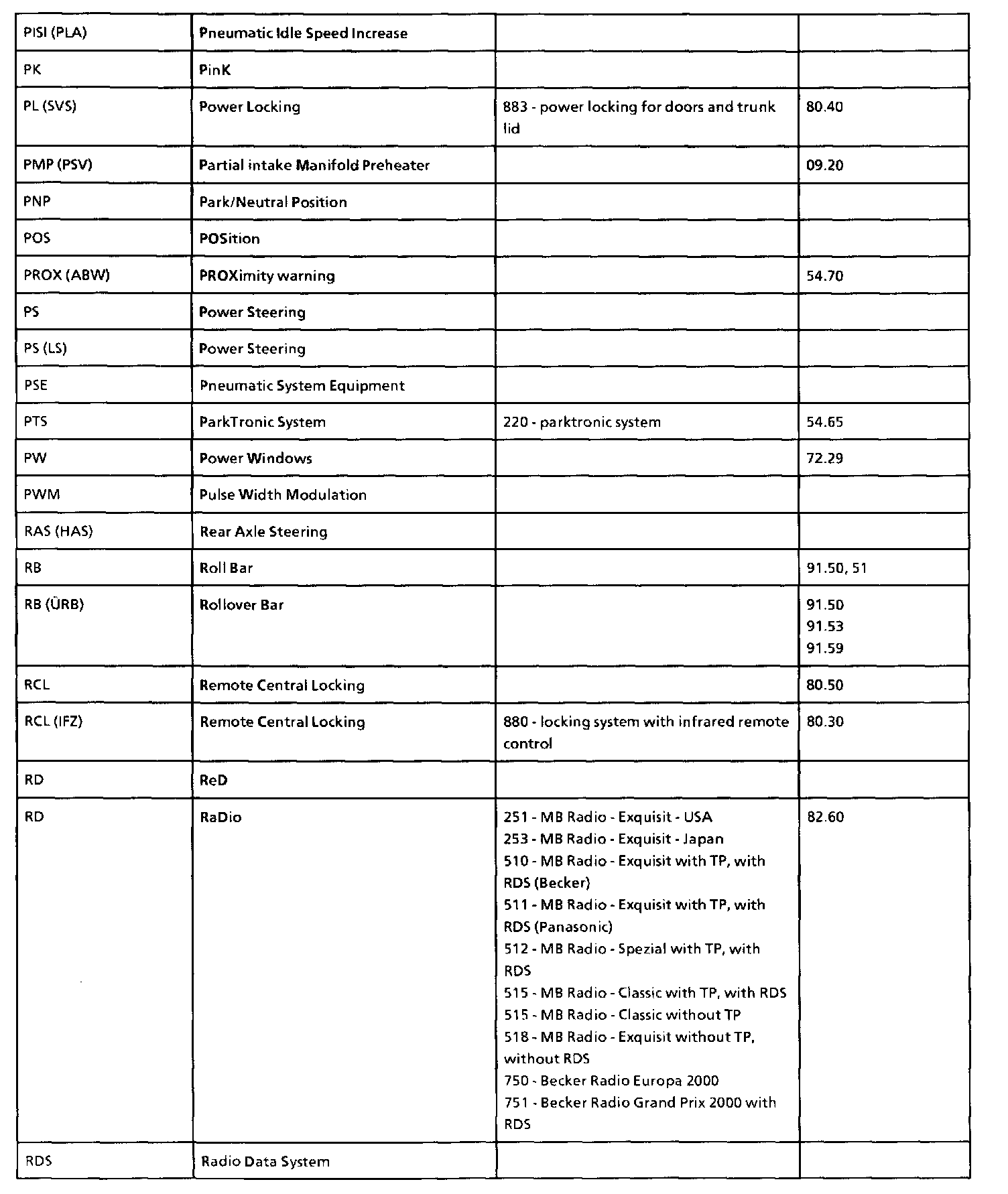

PISI (PLA) - RDS:

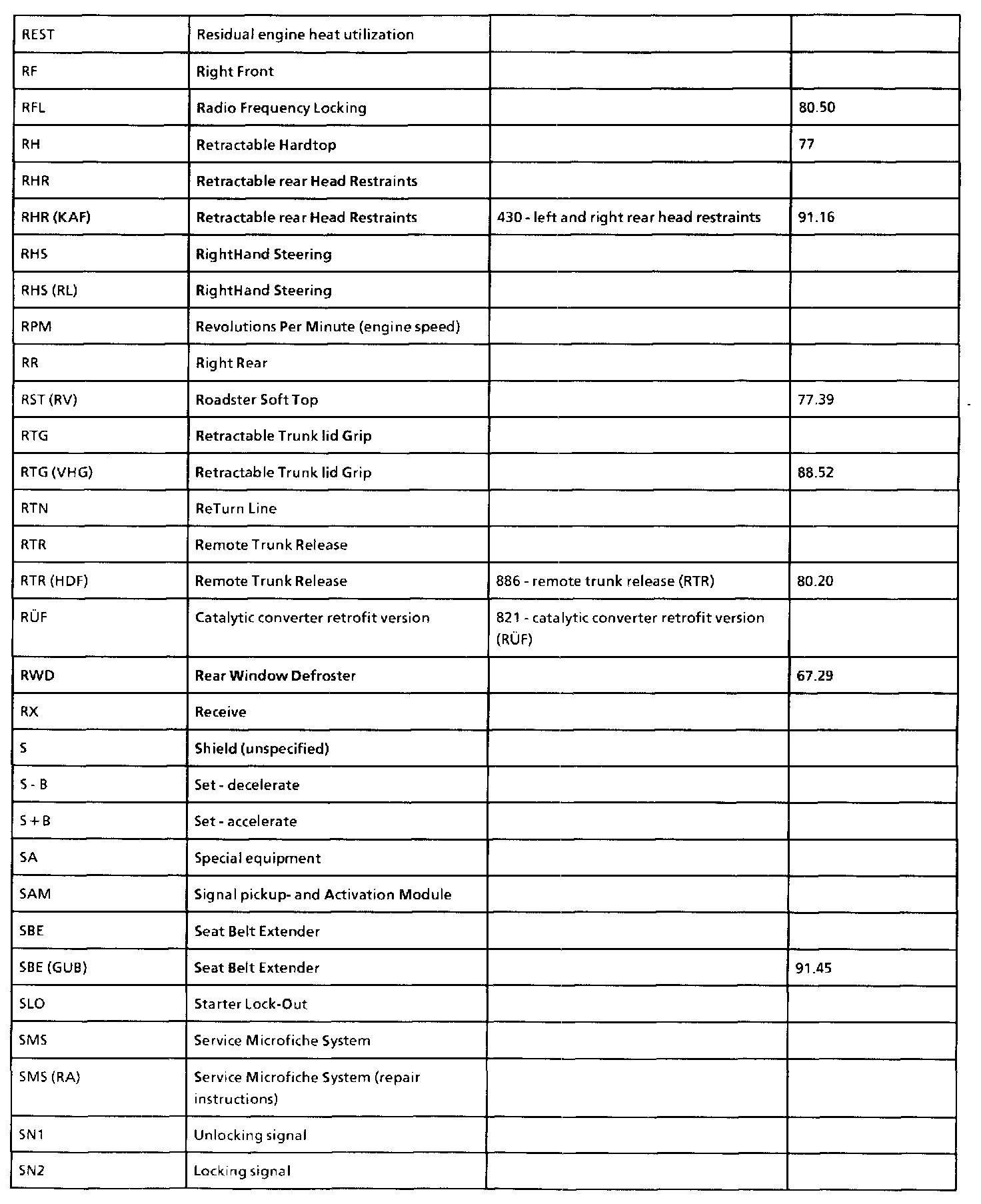

REST - SN2:

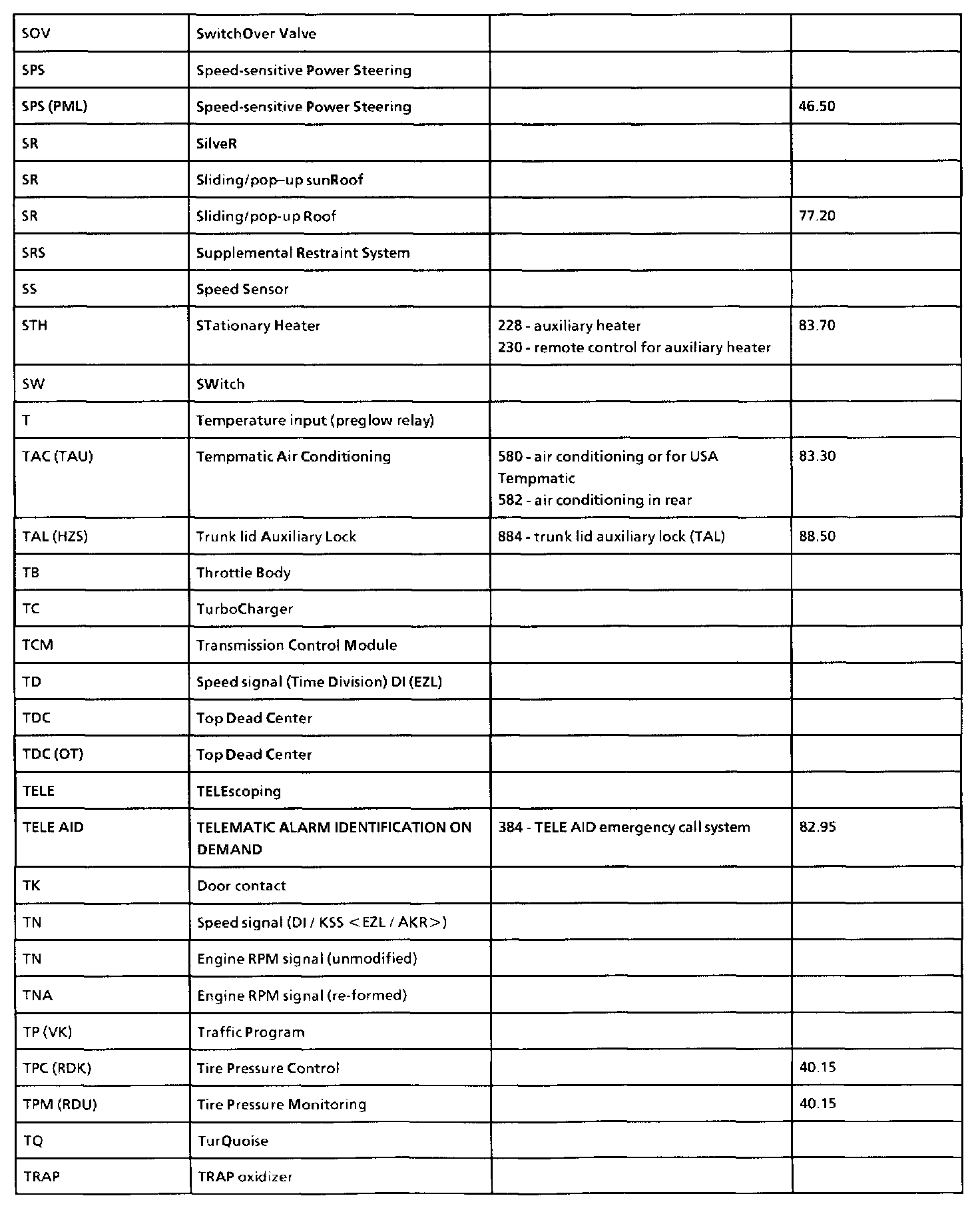

SOV - TRAP:

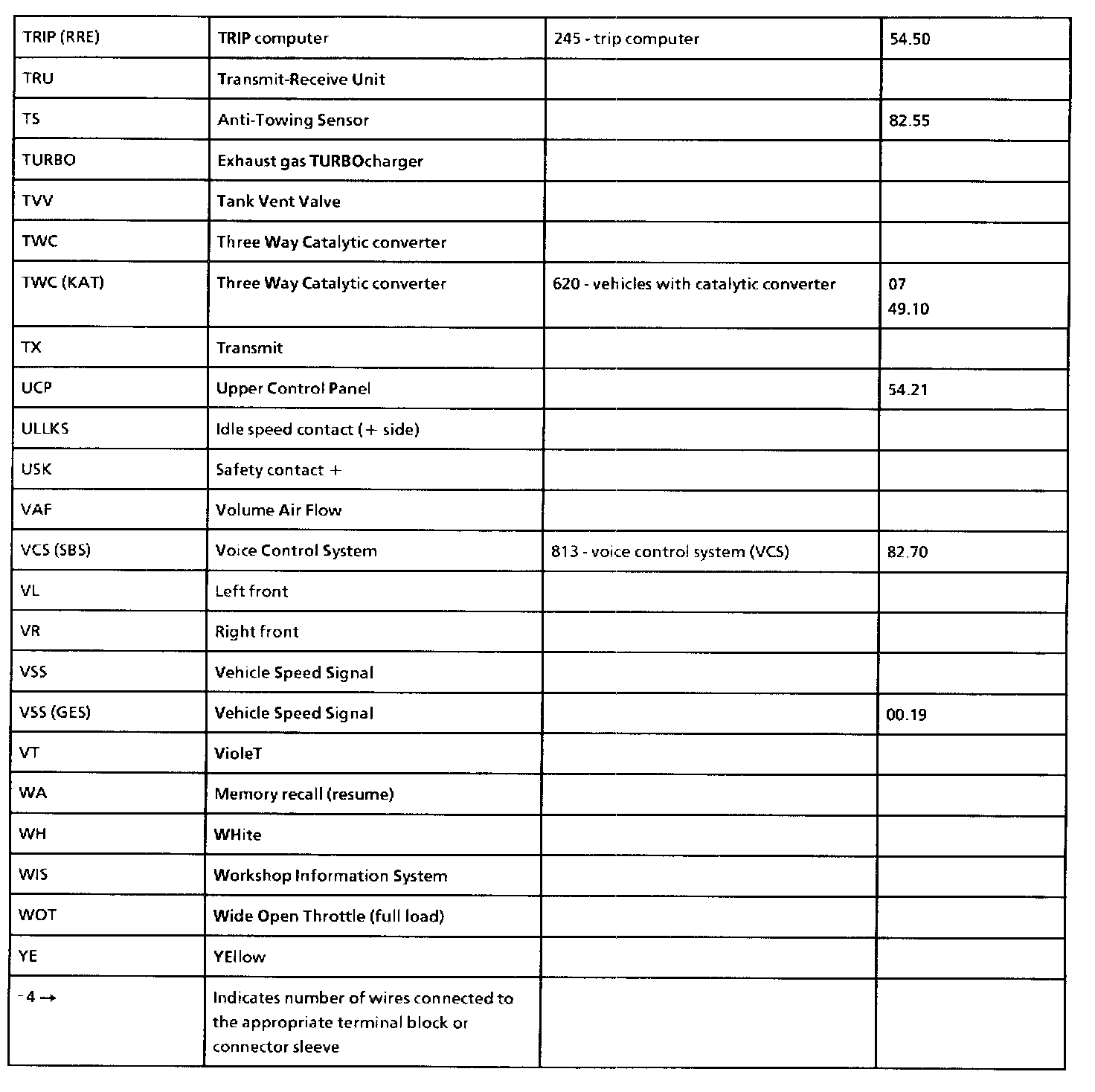

TRIP (RRE) - YE:
