Door Module: Service and Repair

AR72.29-P-1000K Remove/Install Front Door Control Module

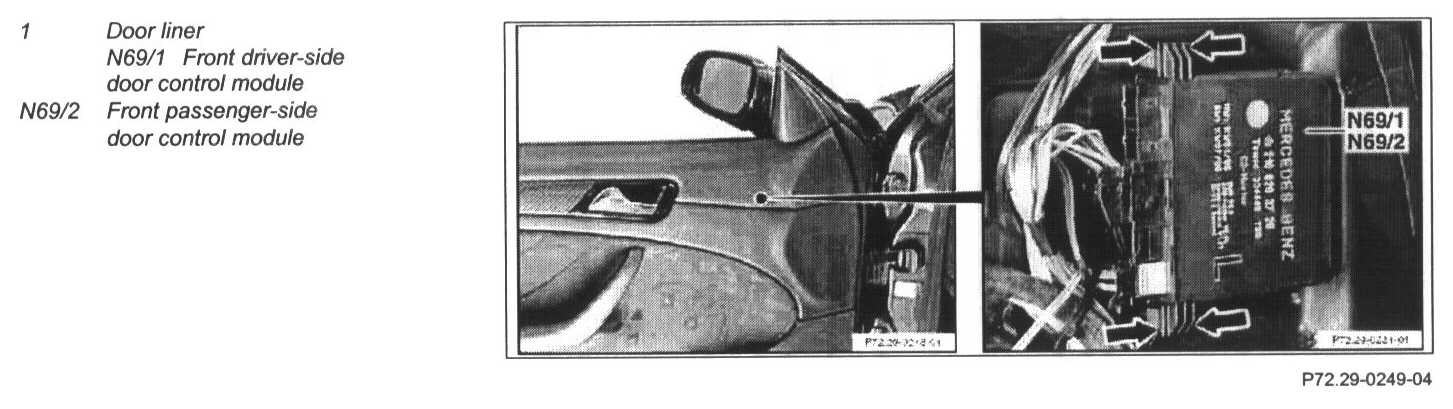

1 Remove door liner (1)
2 Release and disconnect electrical connectors on front driver-side door control module (N69/1) or front passenger-side door control module (N69/2)

NOTE: Use aid for connecting and disconnecting electrical connectors if necessary

3 Press plastic pins together on front driver-side door control module (N69/1) or front passenger-side door control module (N69/2) at top and bottom (arrows)
4 Remove front driver-side door control module (N69/1) or front passenger-side door control module (N69/2)

NOTE: Installation: Insert retaining lugs on front of door control module into inner door panel

5 Reinstall in opposite order
6 Adjust side windows
