Removal and Replacement
AR91.29-P-0002K Replacing Power Seat Control Module With Memory - with CODE (241) Memory circuit for left front power seat
- with CODE (242a) Memory circuit for right front power seat
- with CODE (275a) Memory package (driver's seat, steering column, mirror)

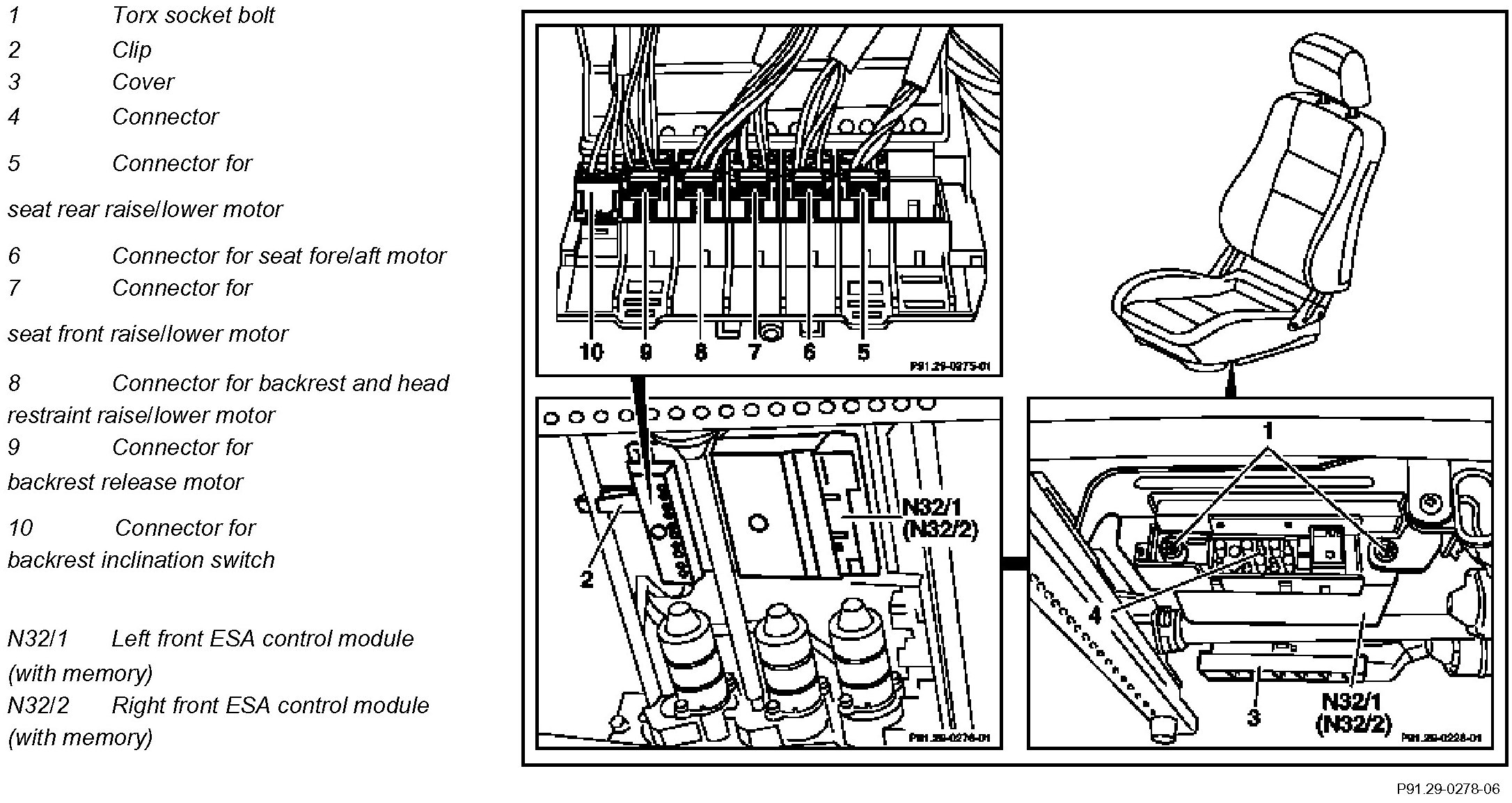

Component Identification:

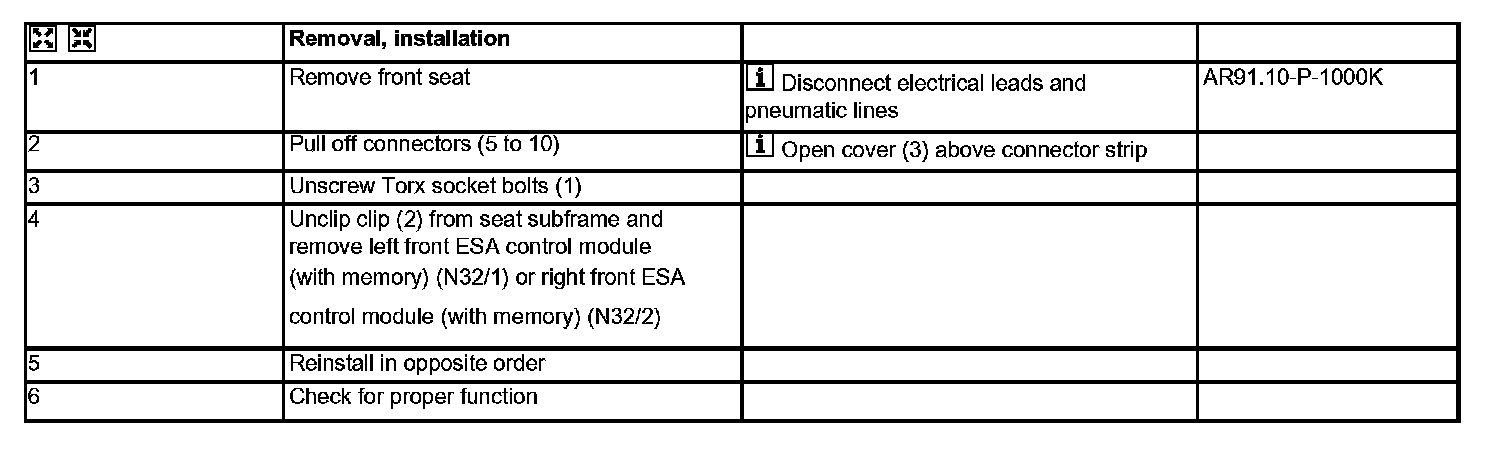

Steps 1 - 6:
