Removal and Replacement



AR91.30-P-0001K Removing And Installing Control Module And Switches For Left And Right Front Heated Seats
- with CODE (873) Left and right front heated seats

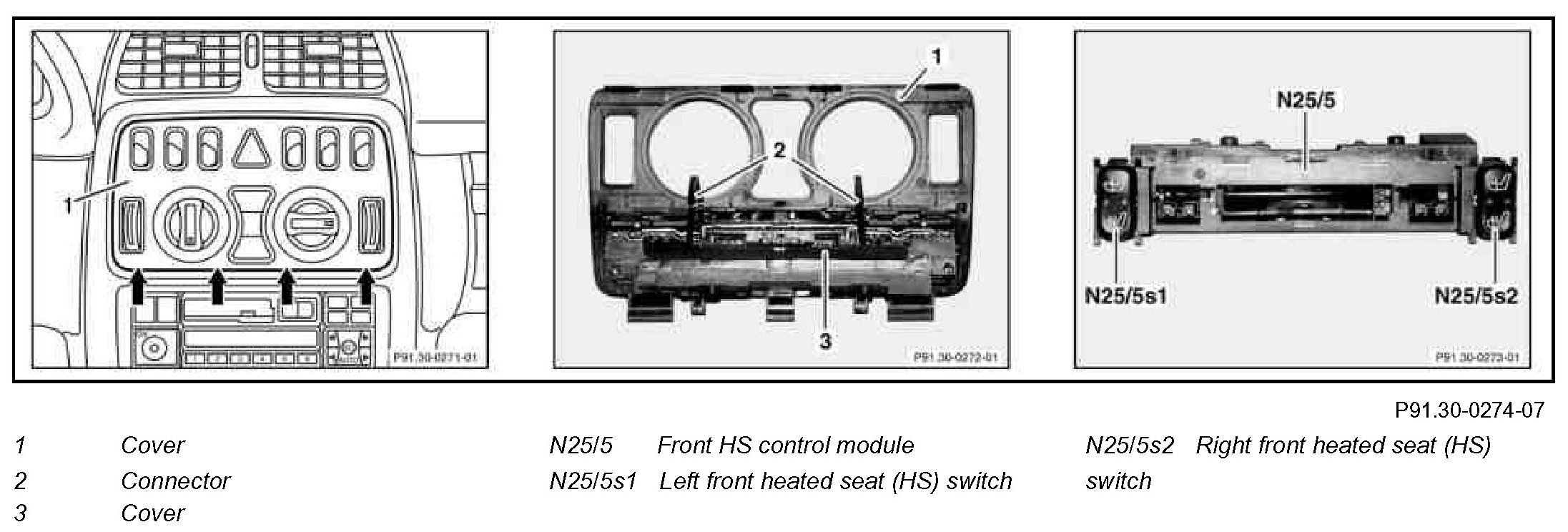

Component Identification:

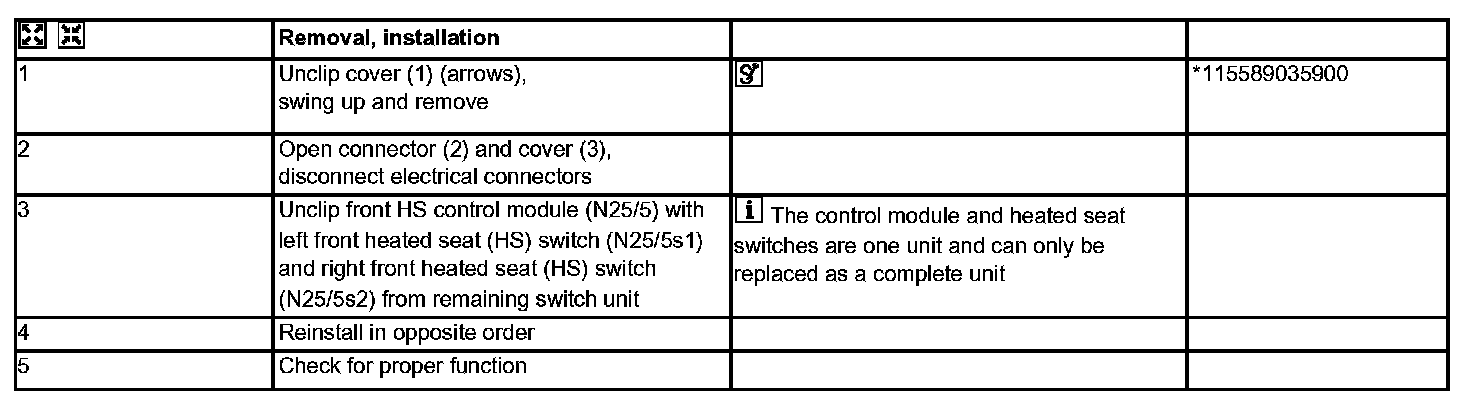

Steps 1 - 5:

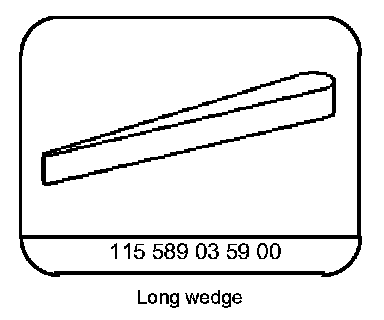

Special Tools:
