Air Bag Control Module: Service and Repair



AR91.60-P-0622K Removing And Installing Airbag/Emergency Tensioning Retractor Control Module

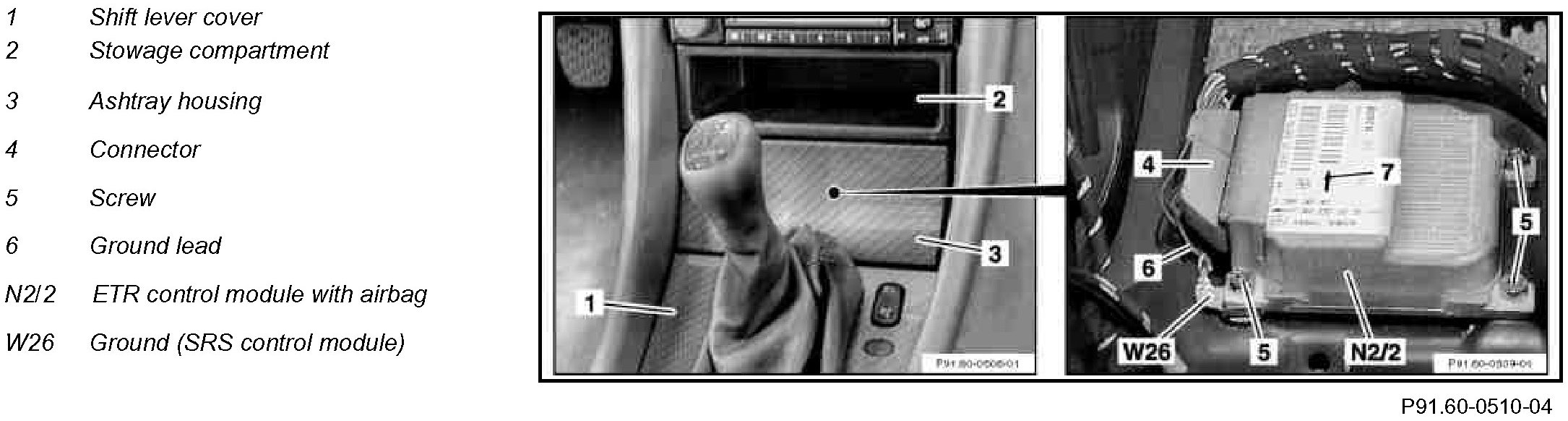

Component Identification:

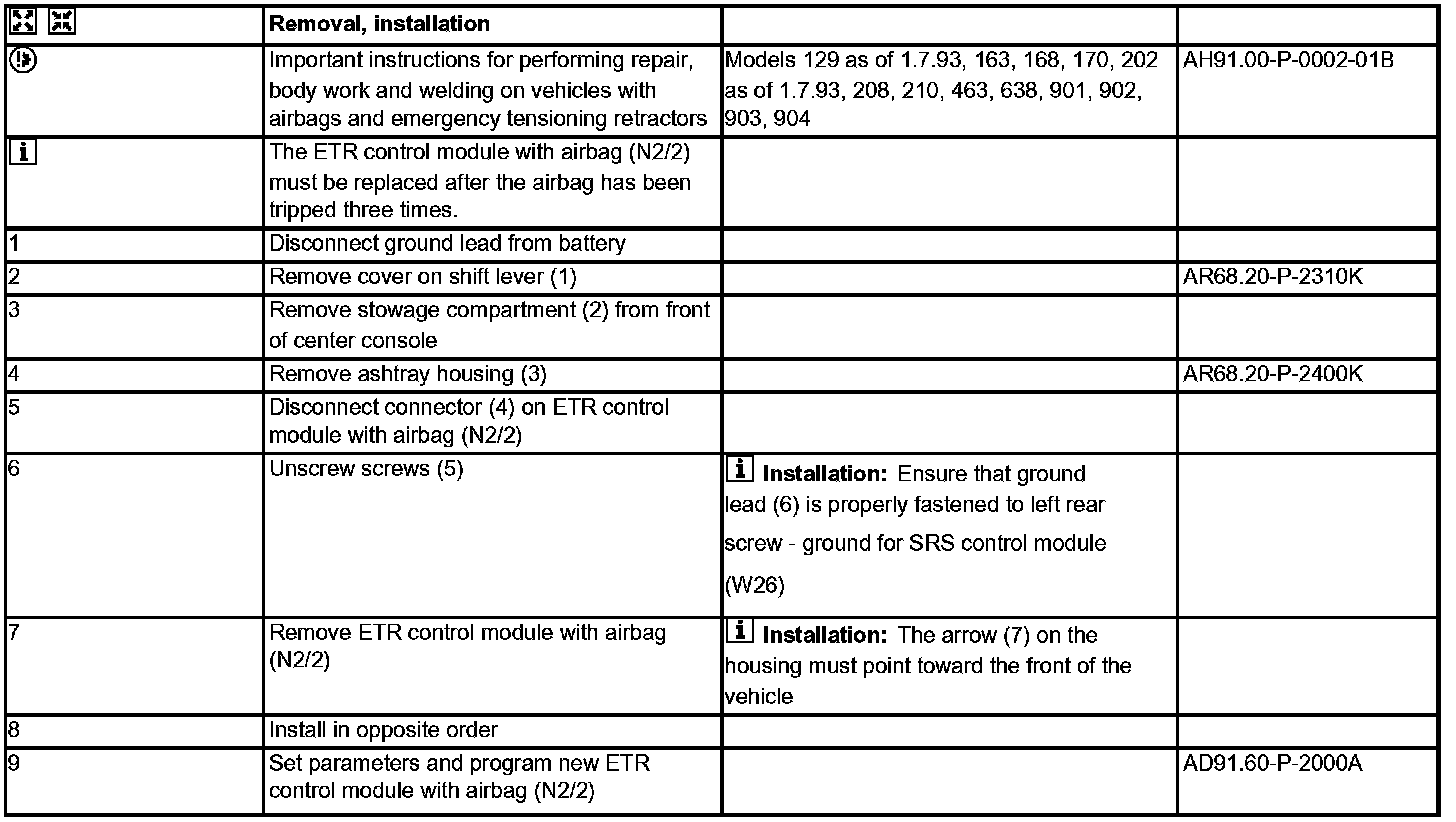

Steps 1 - 9:

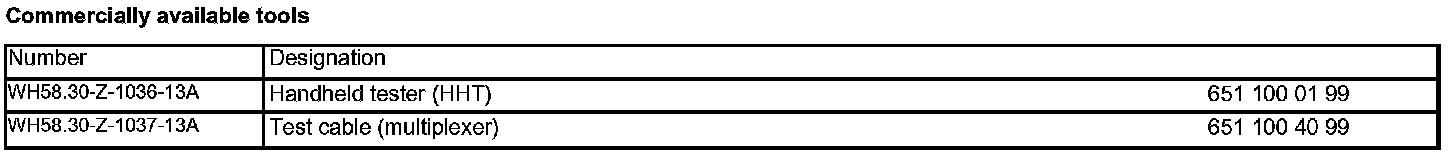

Commercially Available Tools:
