AR83.20-P-1835GH Remove/Install Switch Unit For Heater/Ventilation
Remove, Install Switch Unit For Heater/Ventilation 1
Remove radio
2

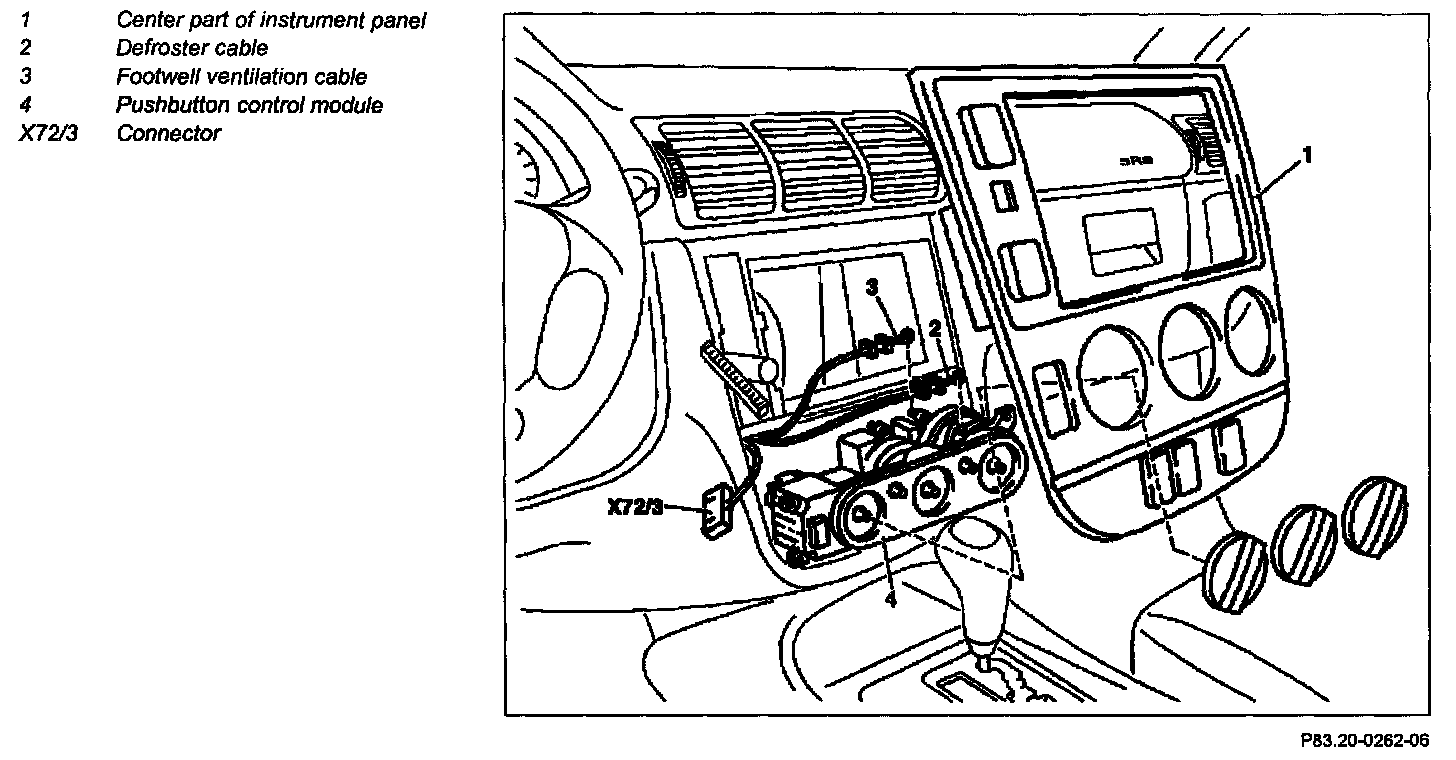

Remove center part of instrument panel (1)
3
Unscrew bolts at heater/AC controls (4) and remove controls
4
Detach cable (2, 3)
NOTE: Unclip cables at heater/AC controls.
5
Disconnect connector (X72/3) at heater/AC controls (4)
6
Install in the reverse order.
