GF83.30-P-2108-02GH All-Activity Module, Location
GF83.30-P-2108-02GH All-activity Module, Location -
with CODE (580) Air conditioning or Tempmatic for USA [MODEL 163 up to 31.8.01]
-
with CODE (580a) Automatic air conditioning [MODEL 163 as of 1.9.01]

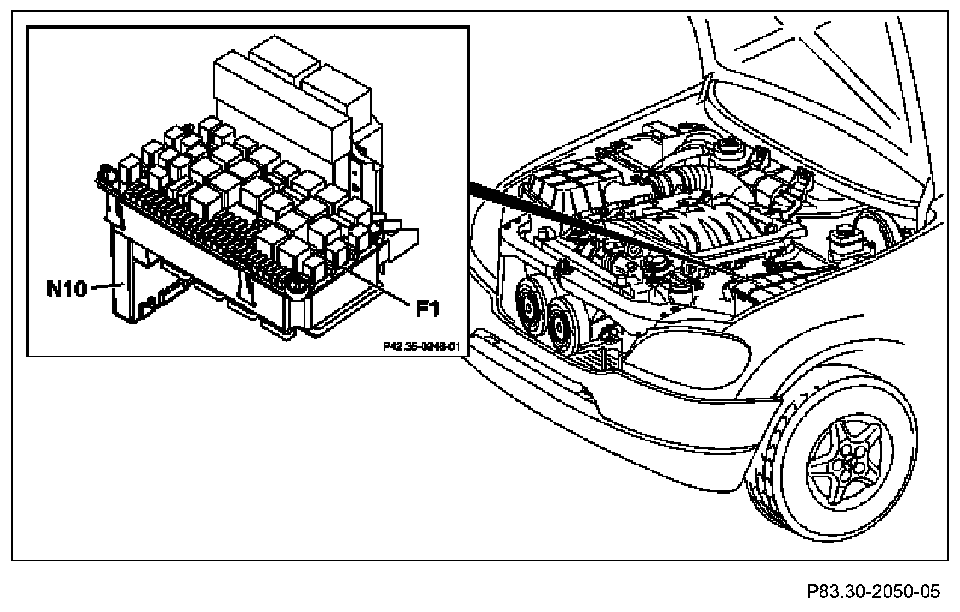

The all-activity module (AAM) (N10) is located in the left-hand side of the engine compartment.
It is plugged on from below to the fuse and relay module (F1).
