Fuse Block: Application and ID




Fuse Assignment

Fuse and Relay Box (In Engine Compartment)

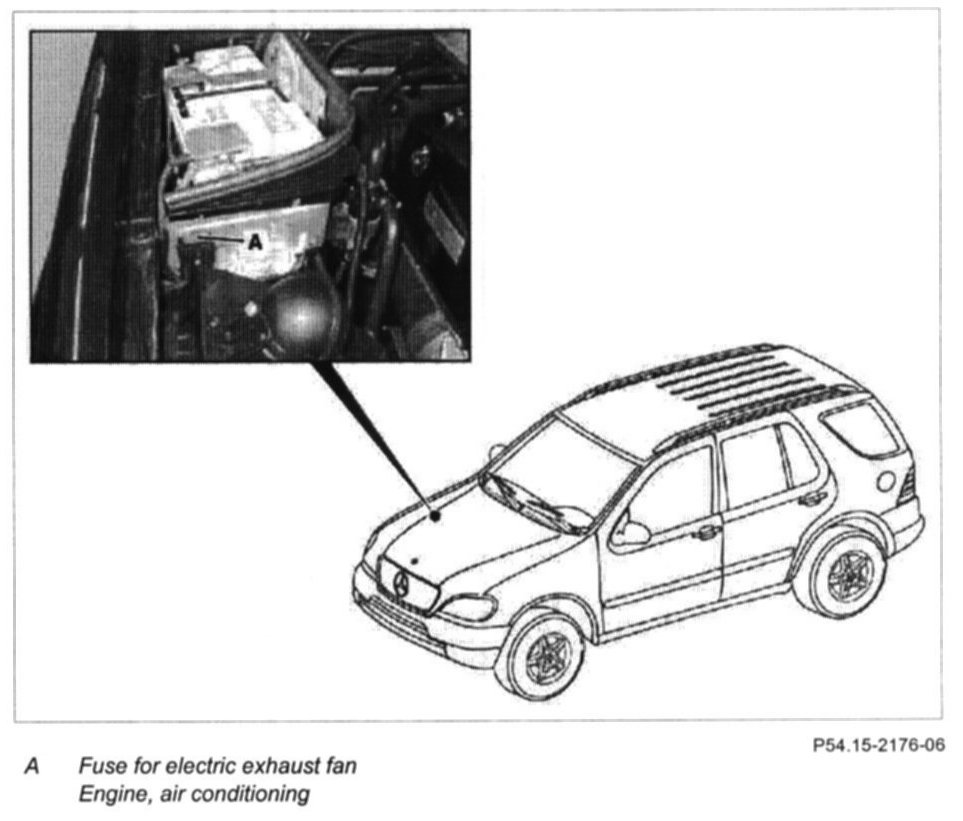

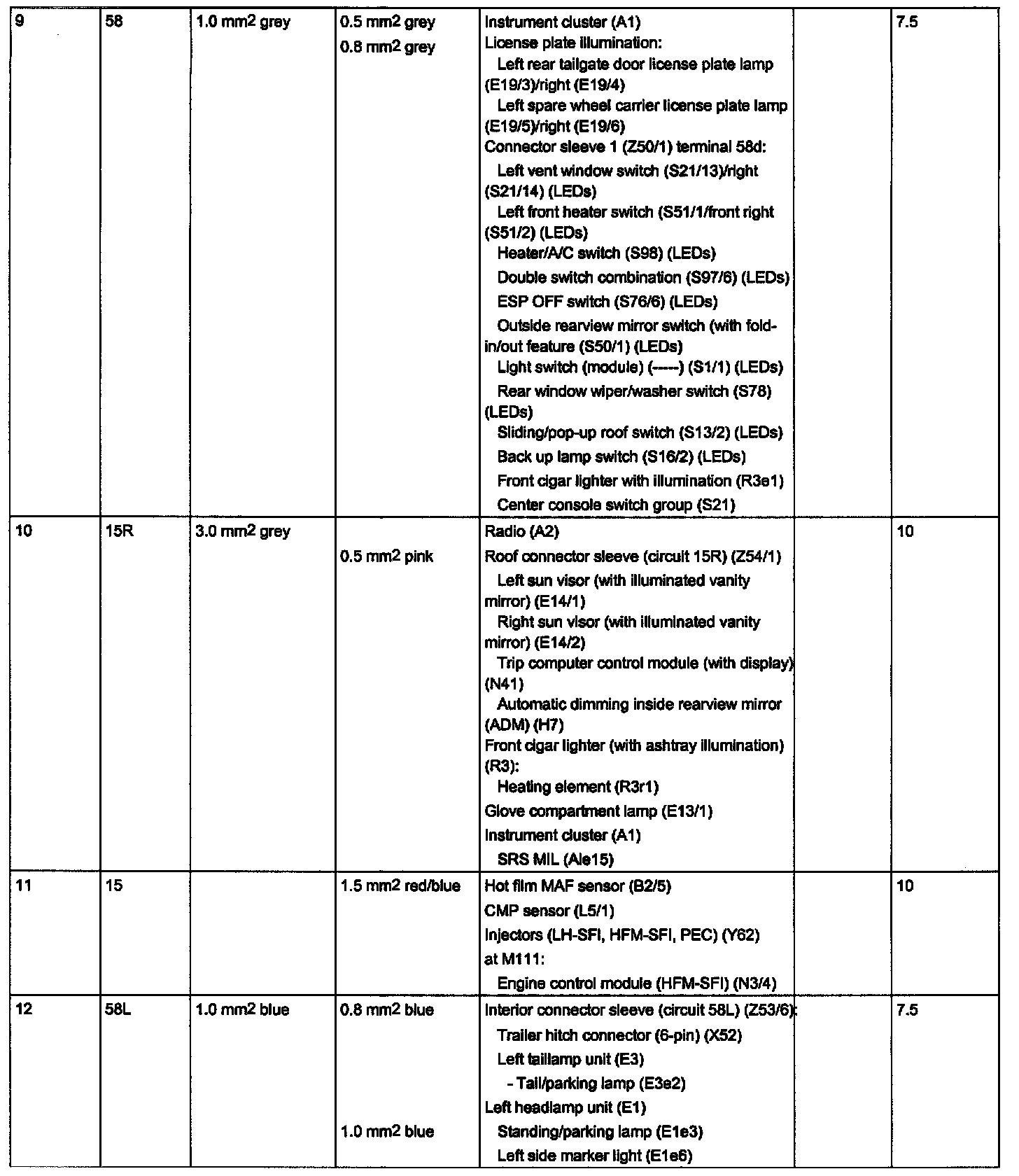

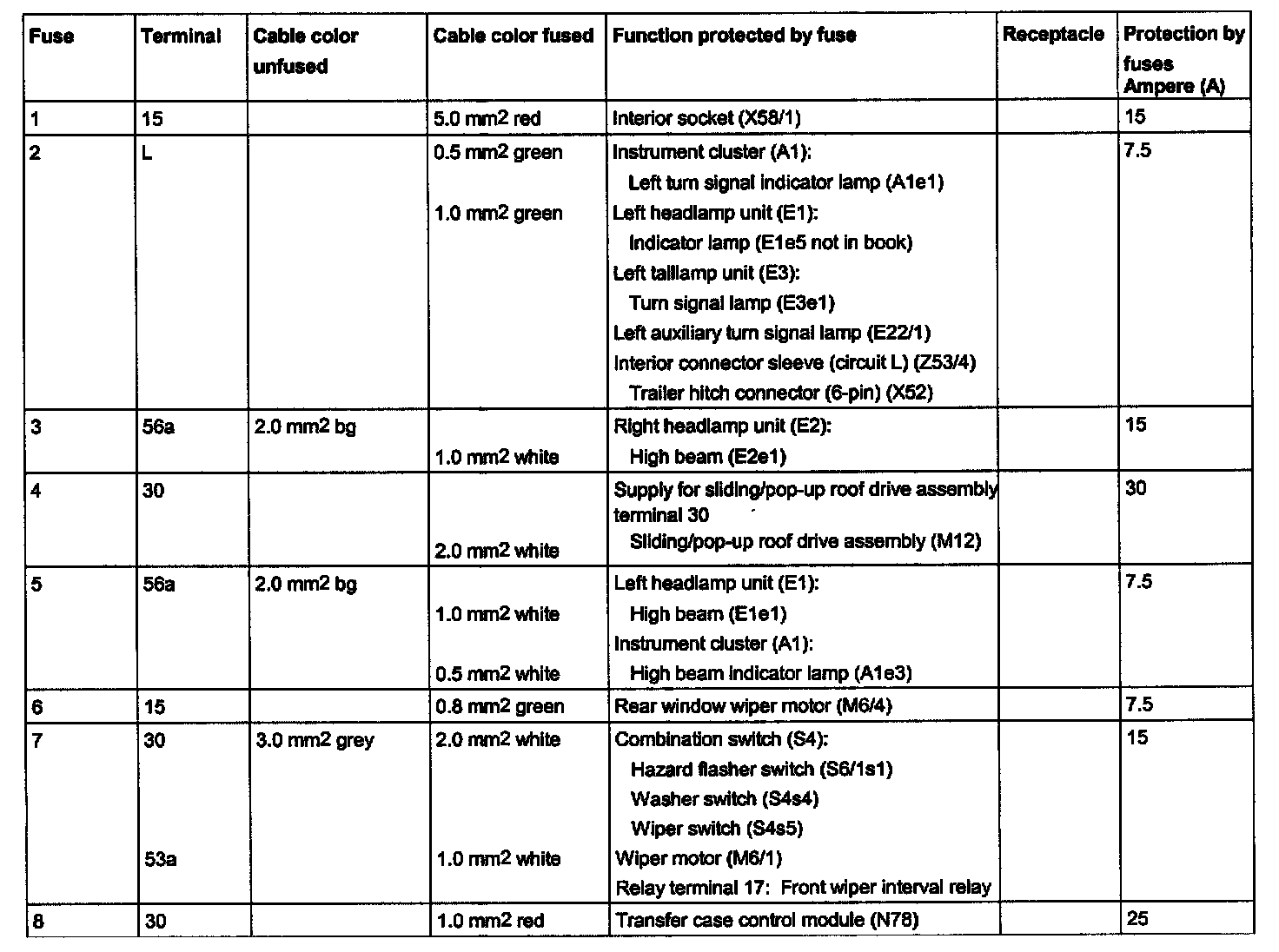

Fuses 1 - 8:




Fuses 9 - 12:

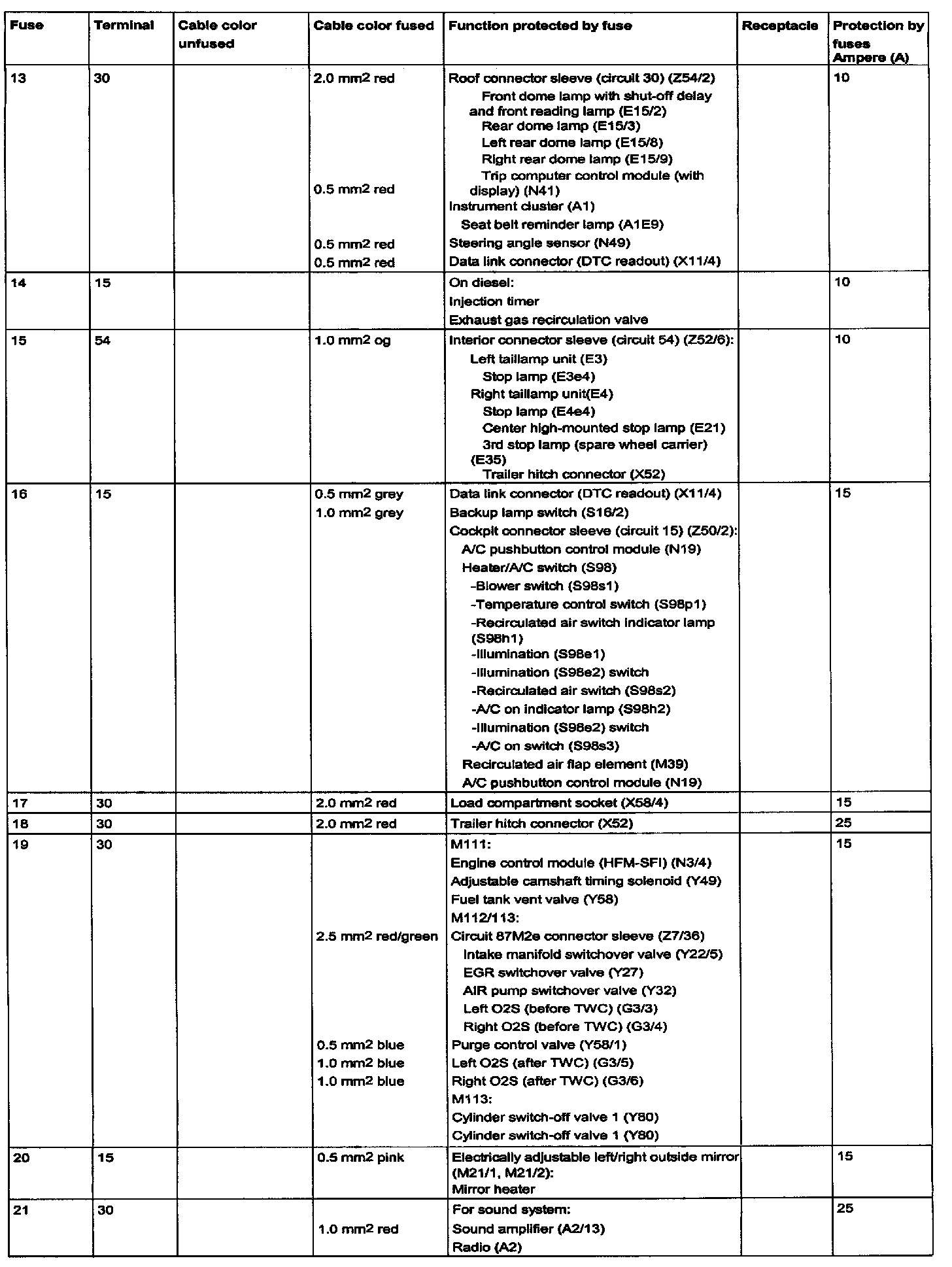

Fuses 13 - 21:

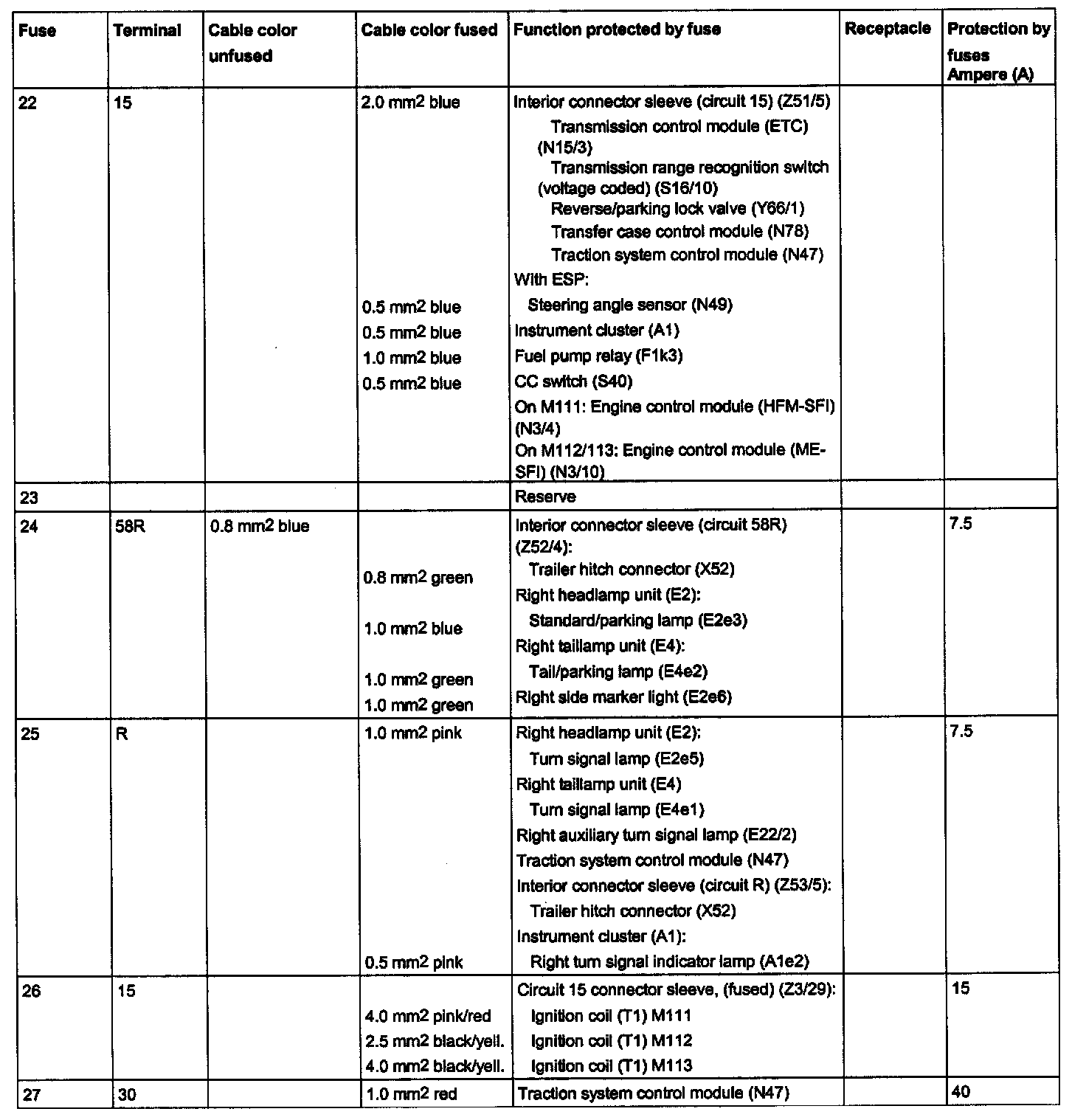

Fuses 22 - 27:

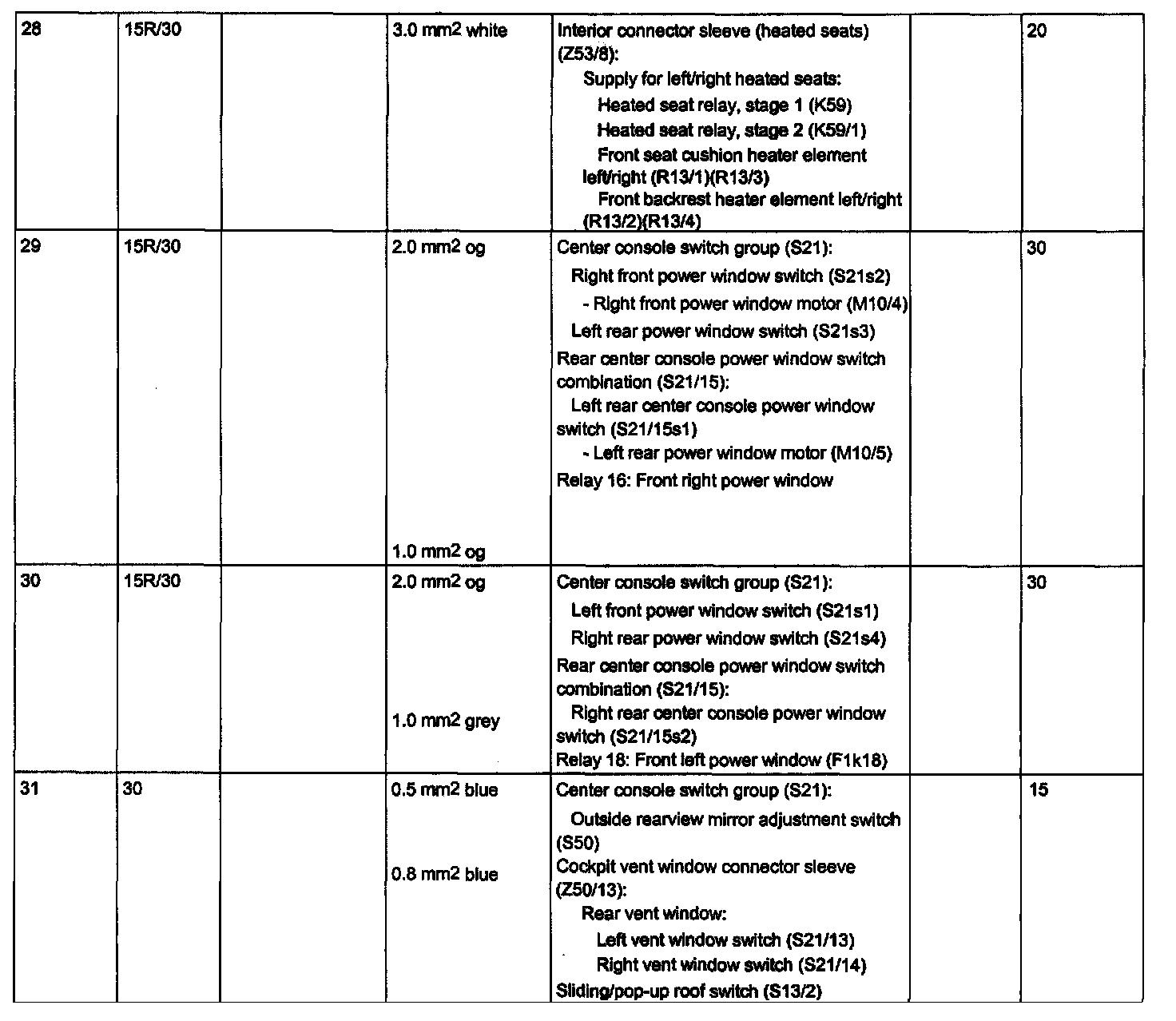

Fuses 28 - 31:

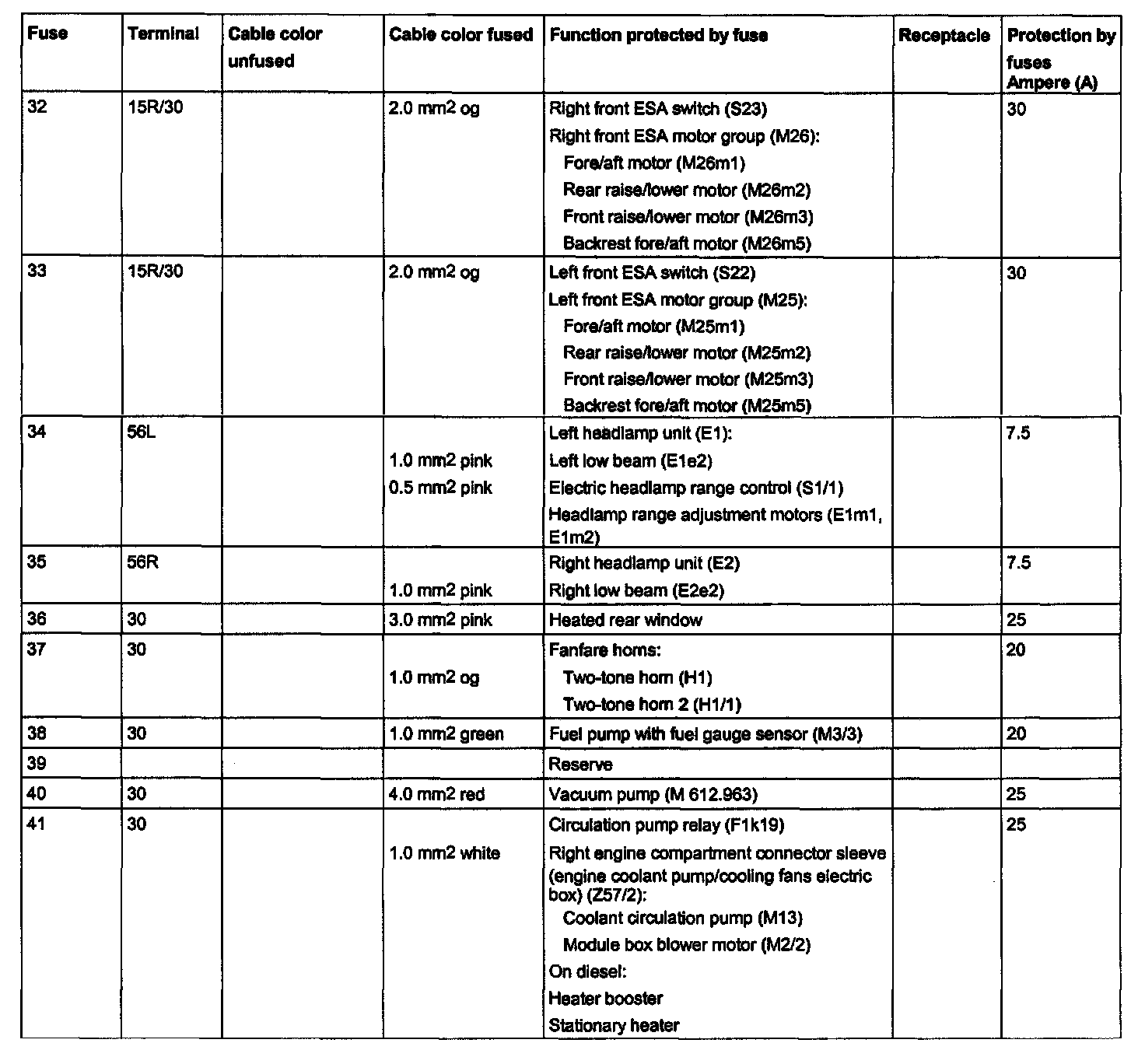

Fuses 32 - 41:

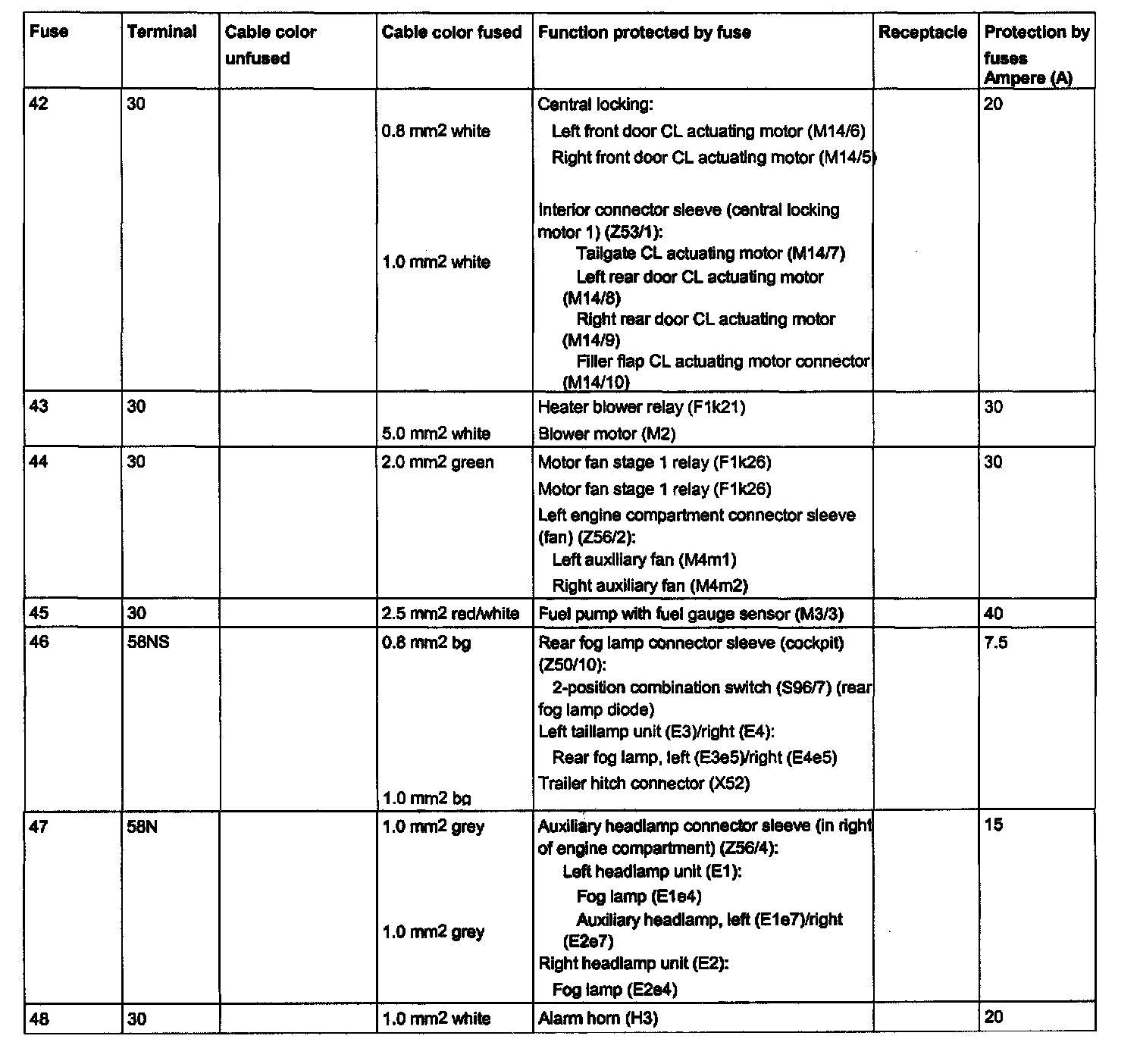

Fuses 42 - 48:






Maxi Fuse Block E








Fuse and Relay Module in Right Front Footwell

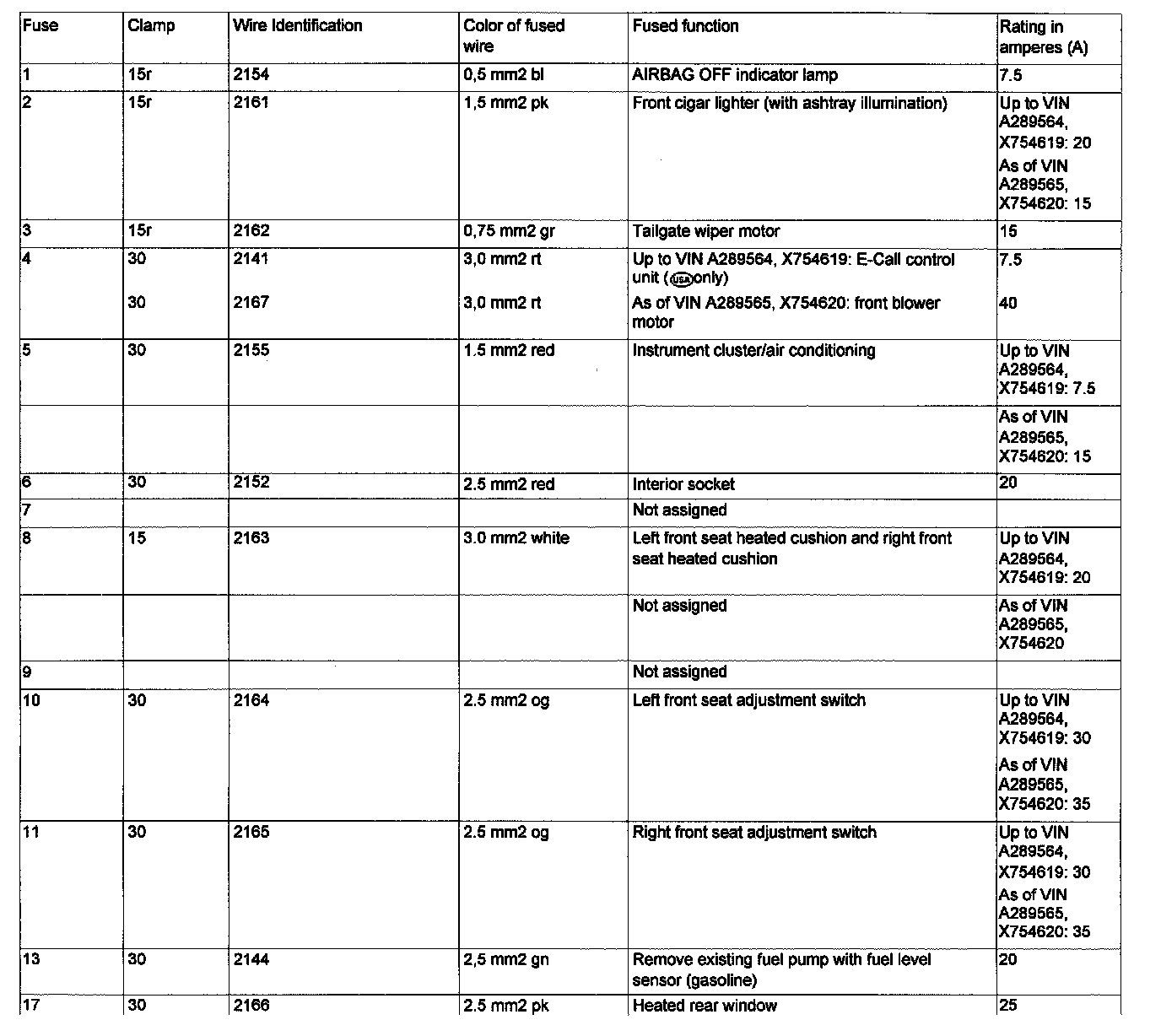

Fuse 1 - 17:




Fuse 19 - 26:
