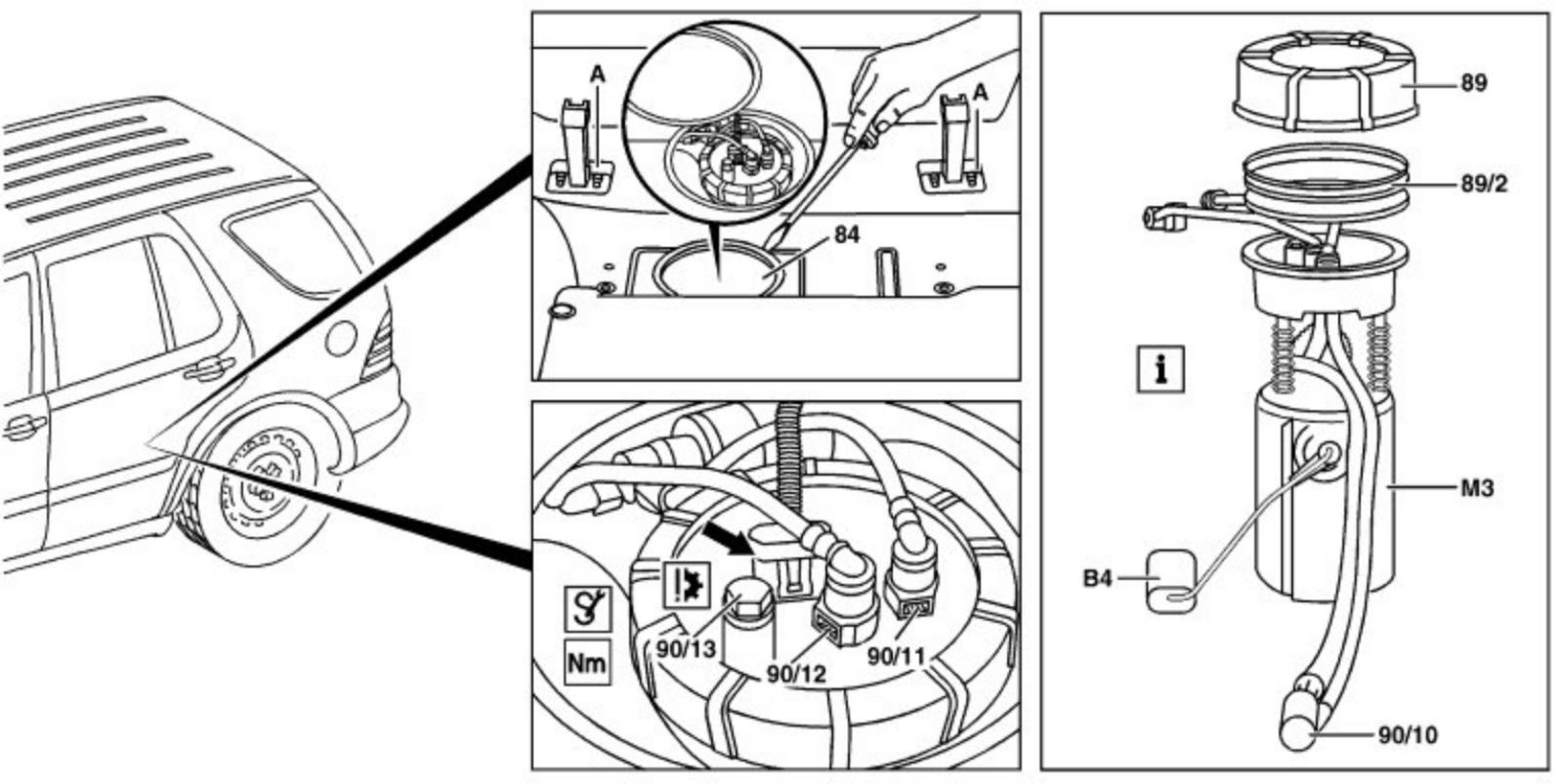

Fuel Delivery Module, Location
Fuel Delivery Module, Location 84
Cap
89
Union nut
89/2
Gasket
90/10
Fuel lines with suction jet pump 90/11 Fuel return line
90/12
Fuel pressure line
90/13
Connection for stationary heater Arrow Electrical connection
A
Rear seat mounts
B4
Fuel level sensor
M3
Fuel pump
Location Installed into the fuel tank from above
