Removal and Replacement
Replace Spark Plugs

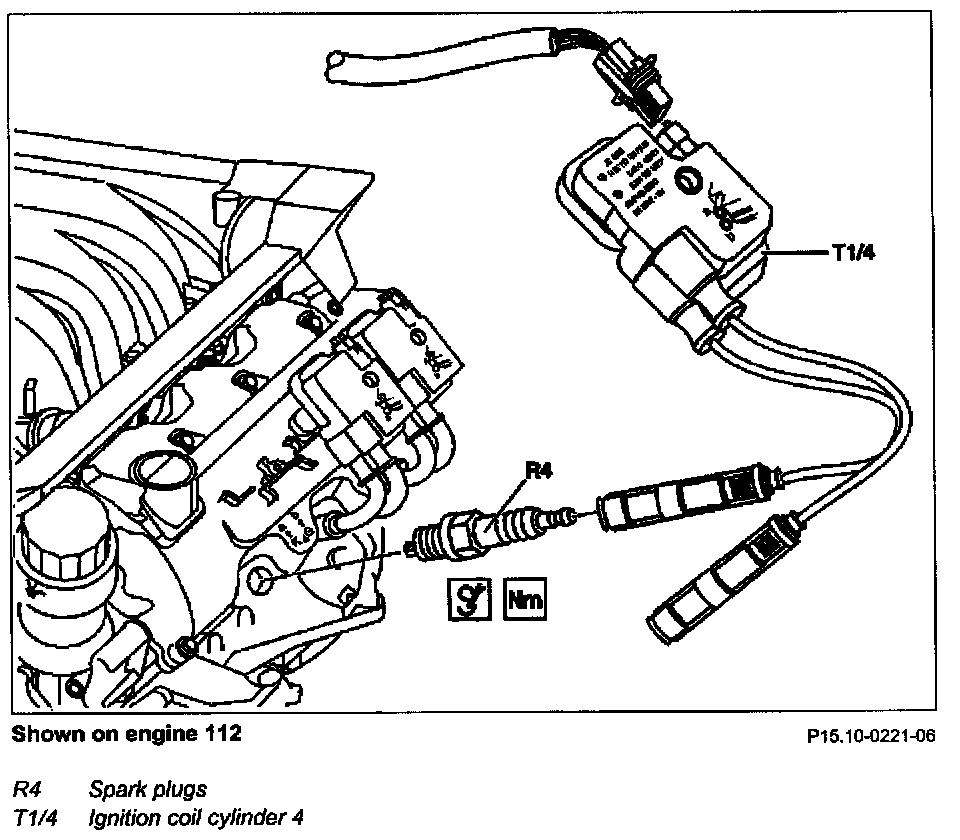

Shown On Engine 112:
Remove/Install and replacing
Danger:
- Risk of death. Death may result if contact is made with parts carrying high voltages.
- Do not touch parts carrying high voltages.
- Persons who wear electronic implants (e.g. heart pacemakers) must not carry out work on the ignition system.
1 Remove/Install air filter upper section
2 Remove/Install ignition coils
3 Disconnect spark plug connectors
NOTE: Prise over cylinder head cover.
- Double open-ended wrench: See Special Tools below.
4 Remove/Install spark plugs (R4)
- Spark plugs = 28 Nm
- Spark plug wrench: See Special Tools below.
Special Tools:
