Electrical Test Program Power Windows - Section 23
Preparation for Test: 1.
See 21
2.
CAUTION! See 22/1
3.
Fuses OK.
4.
Battery voltage
11 - 14 V 5.
Convenience Feature functional.

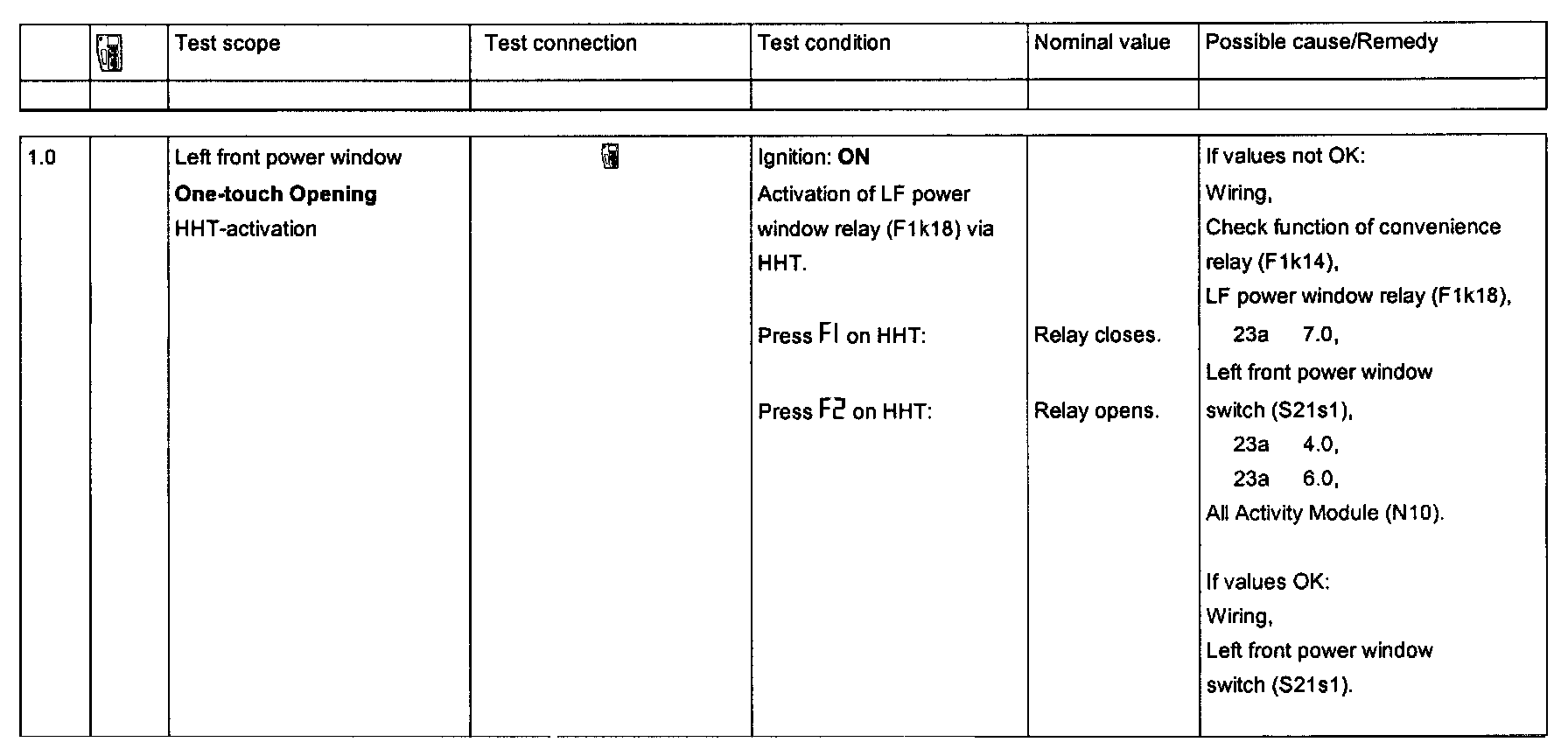

Step 1.0:

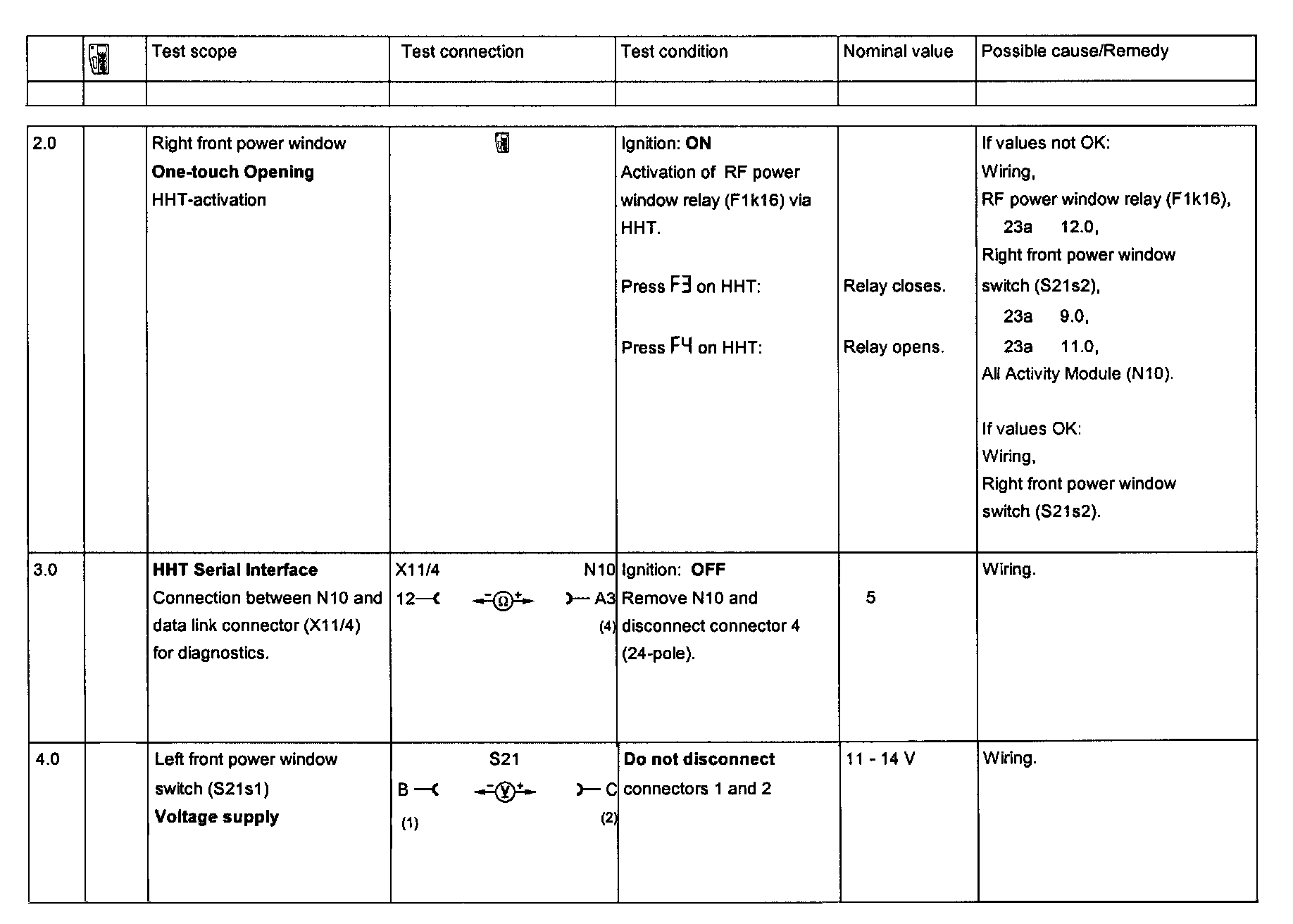

Steps 2.0 - 4.0:

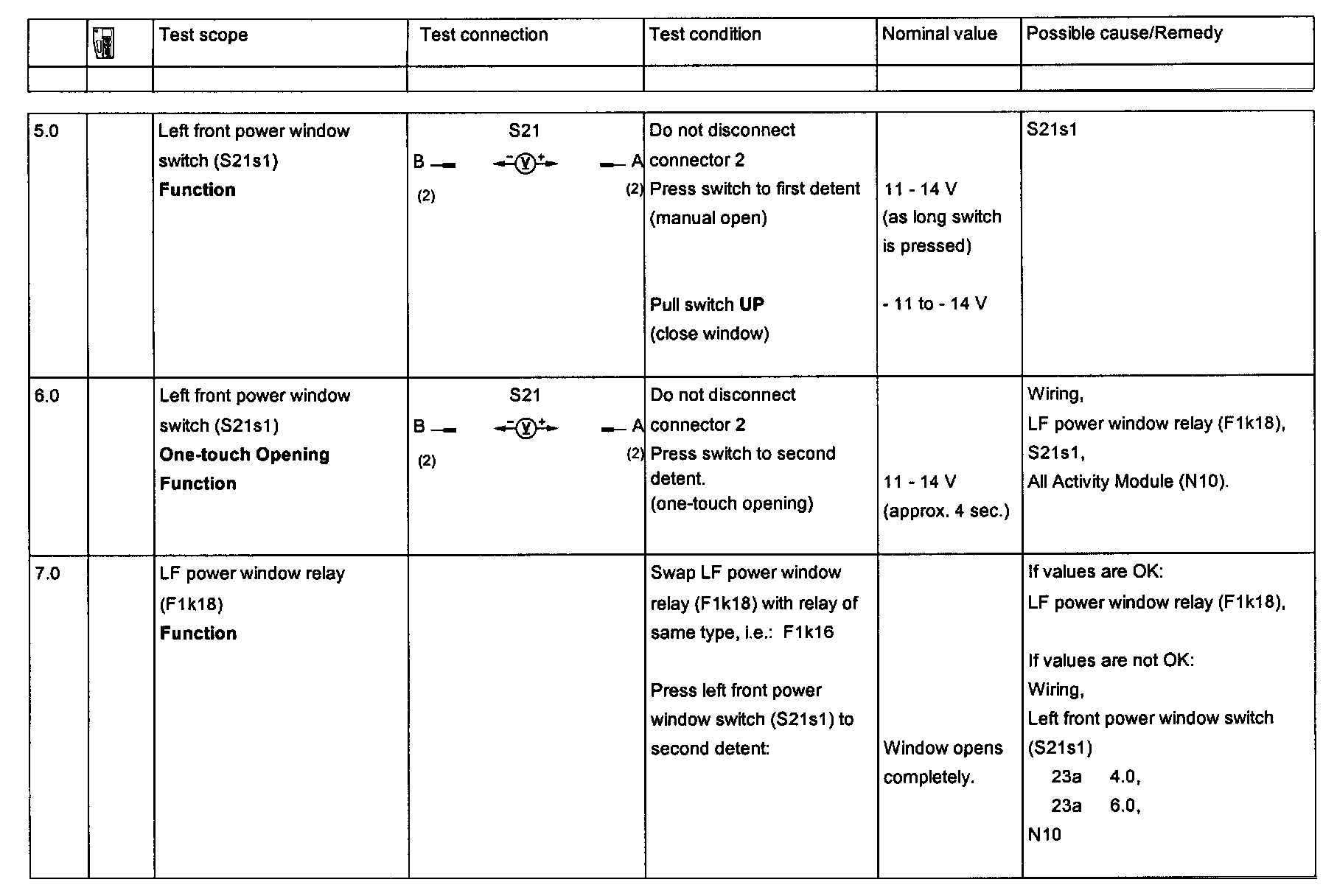

Steps 5.0 - 7.0:

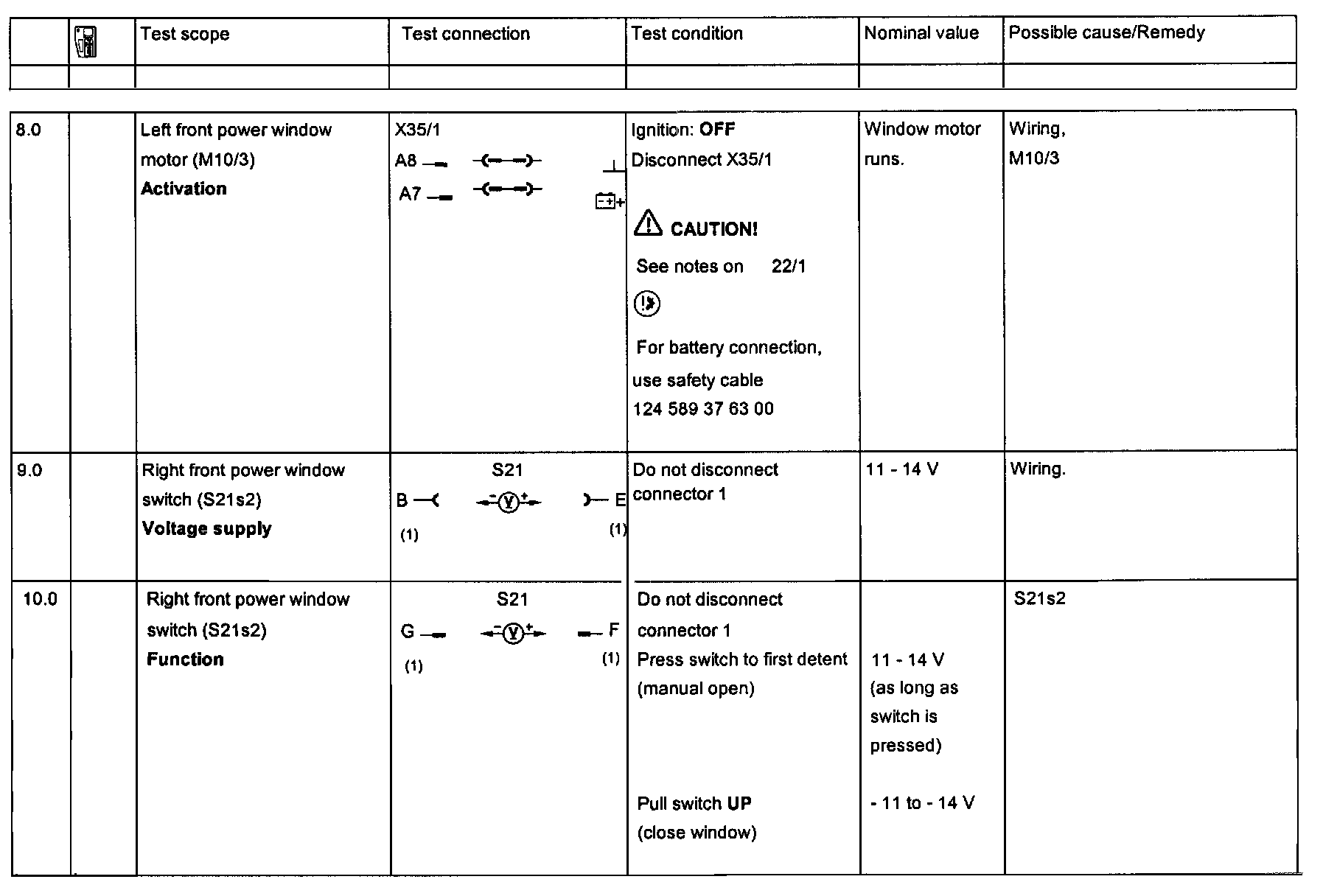

Steps 8.0 - 10.0:

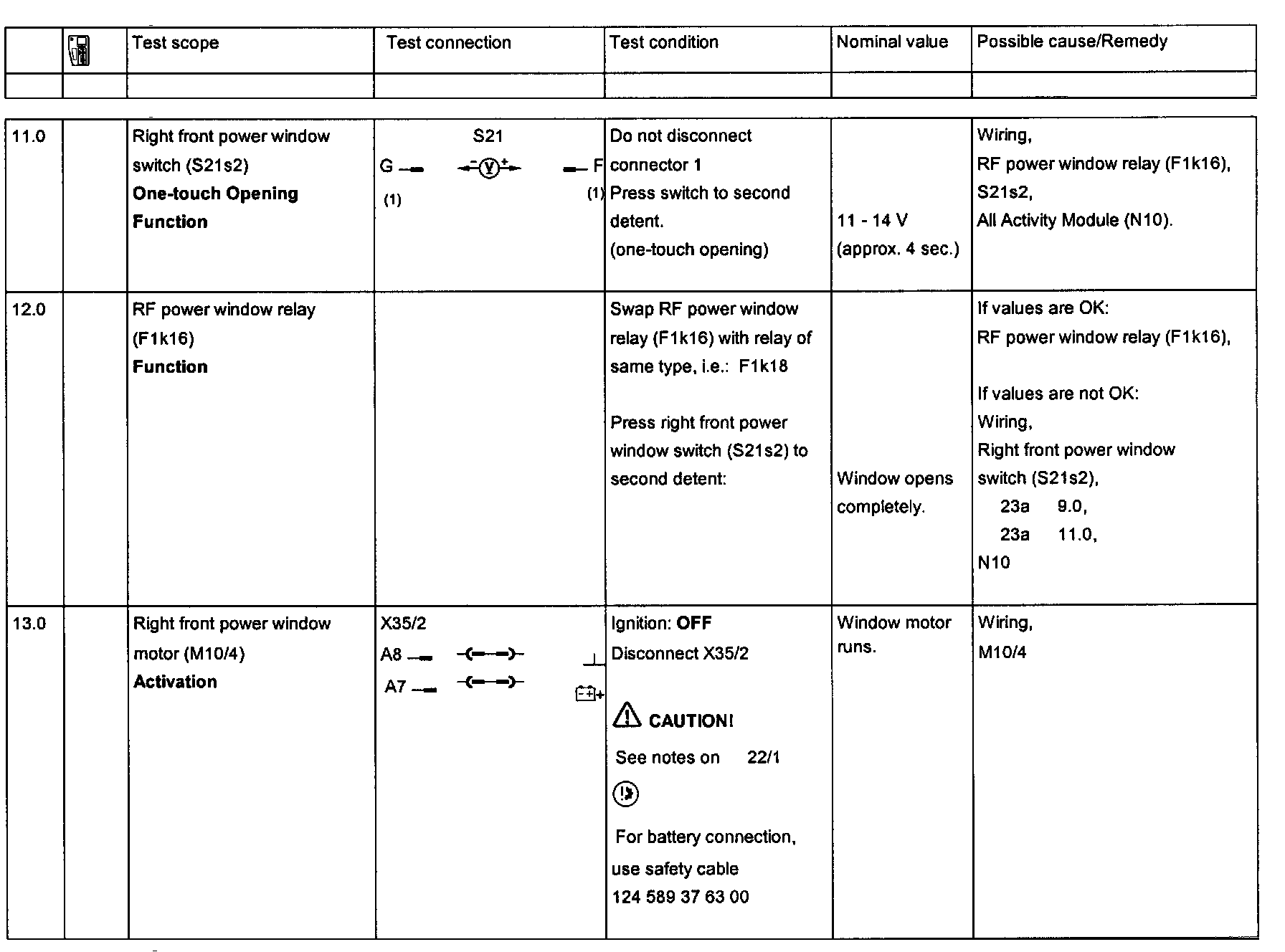

Steps 11.0 - 13.0:

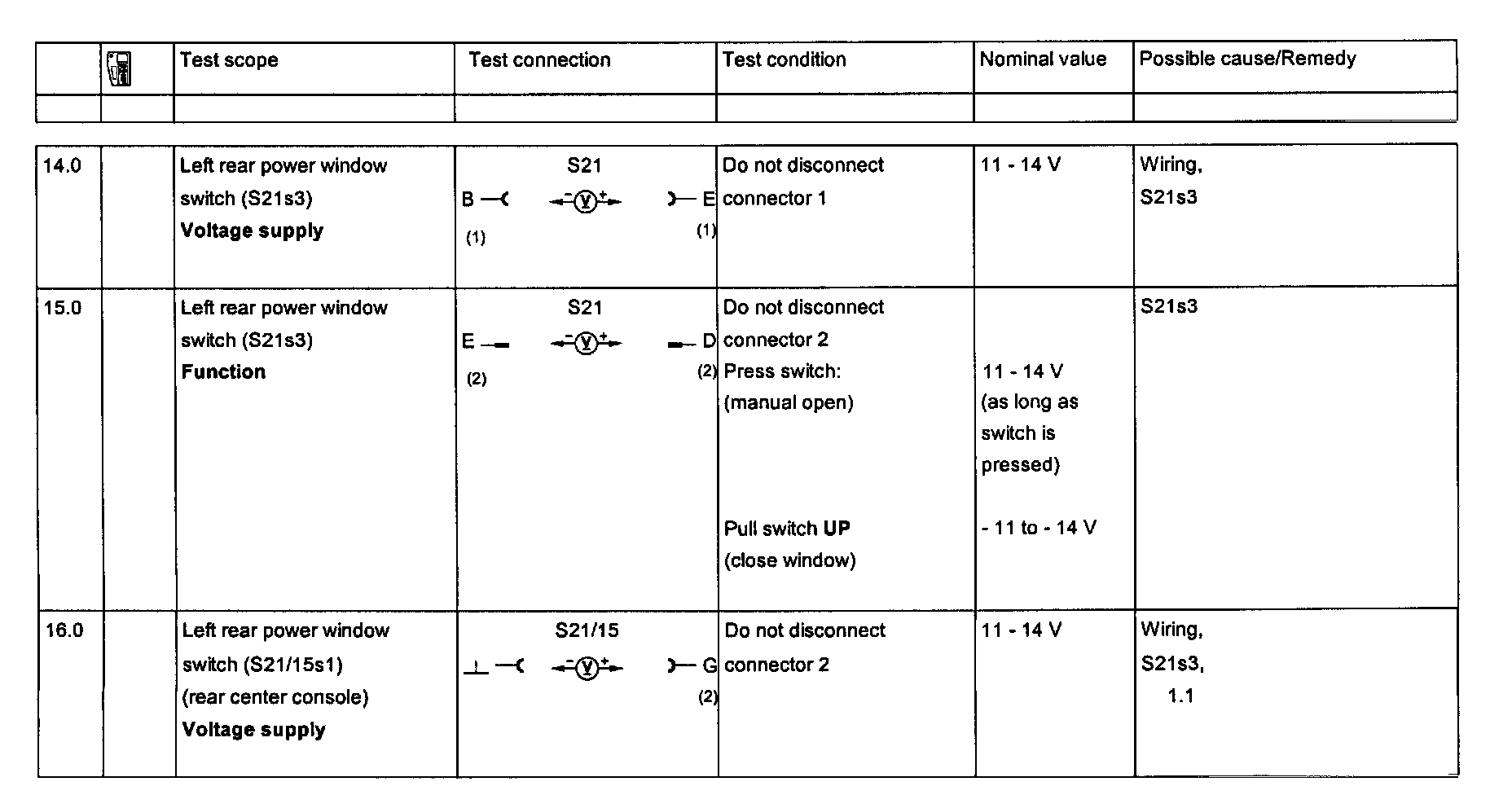

Steps 14.0 - 16.0:

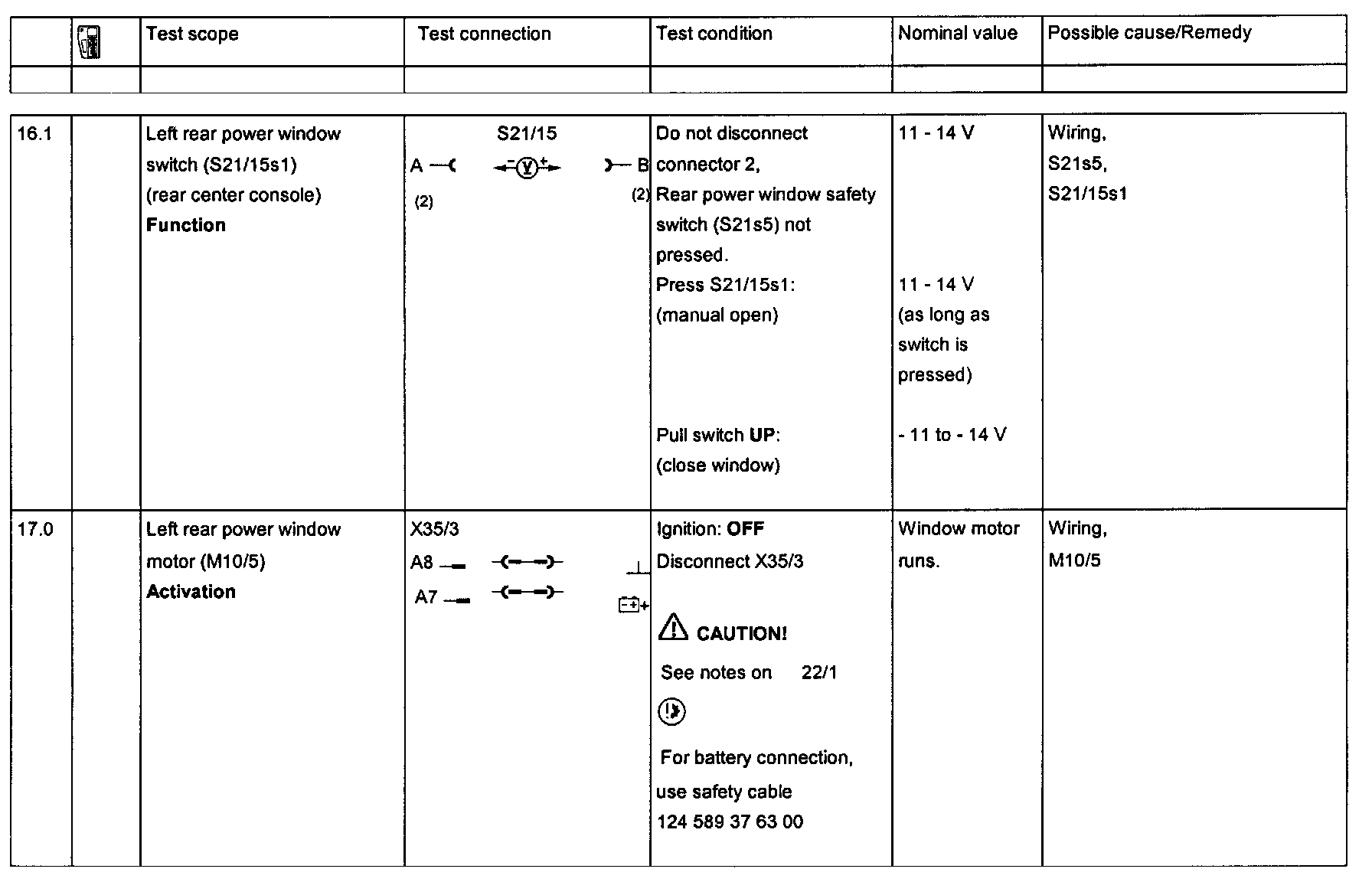

Steps 16.1 - 17.0:

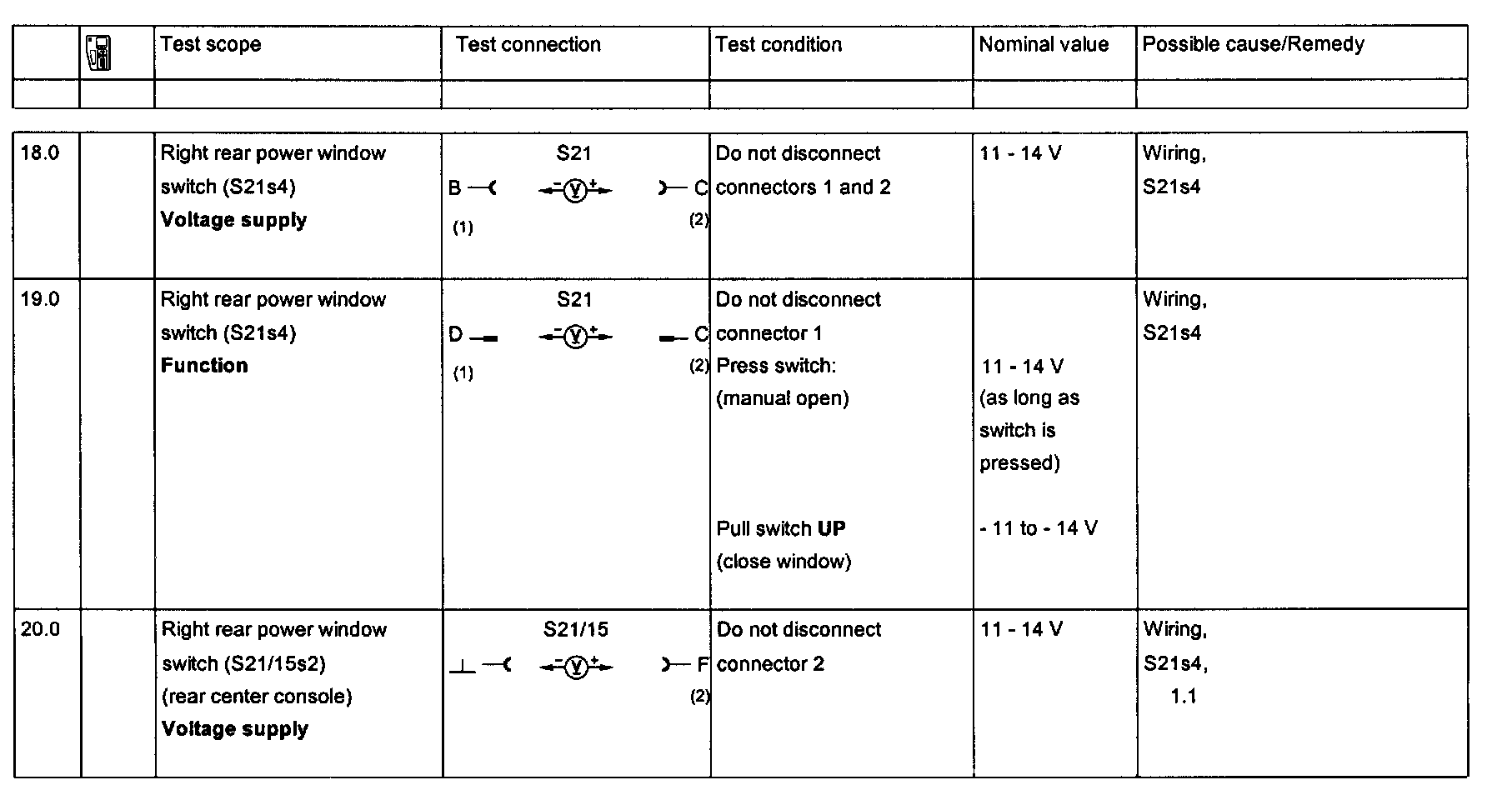

Steps 18.0 - 20.0:

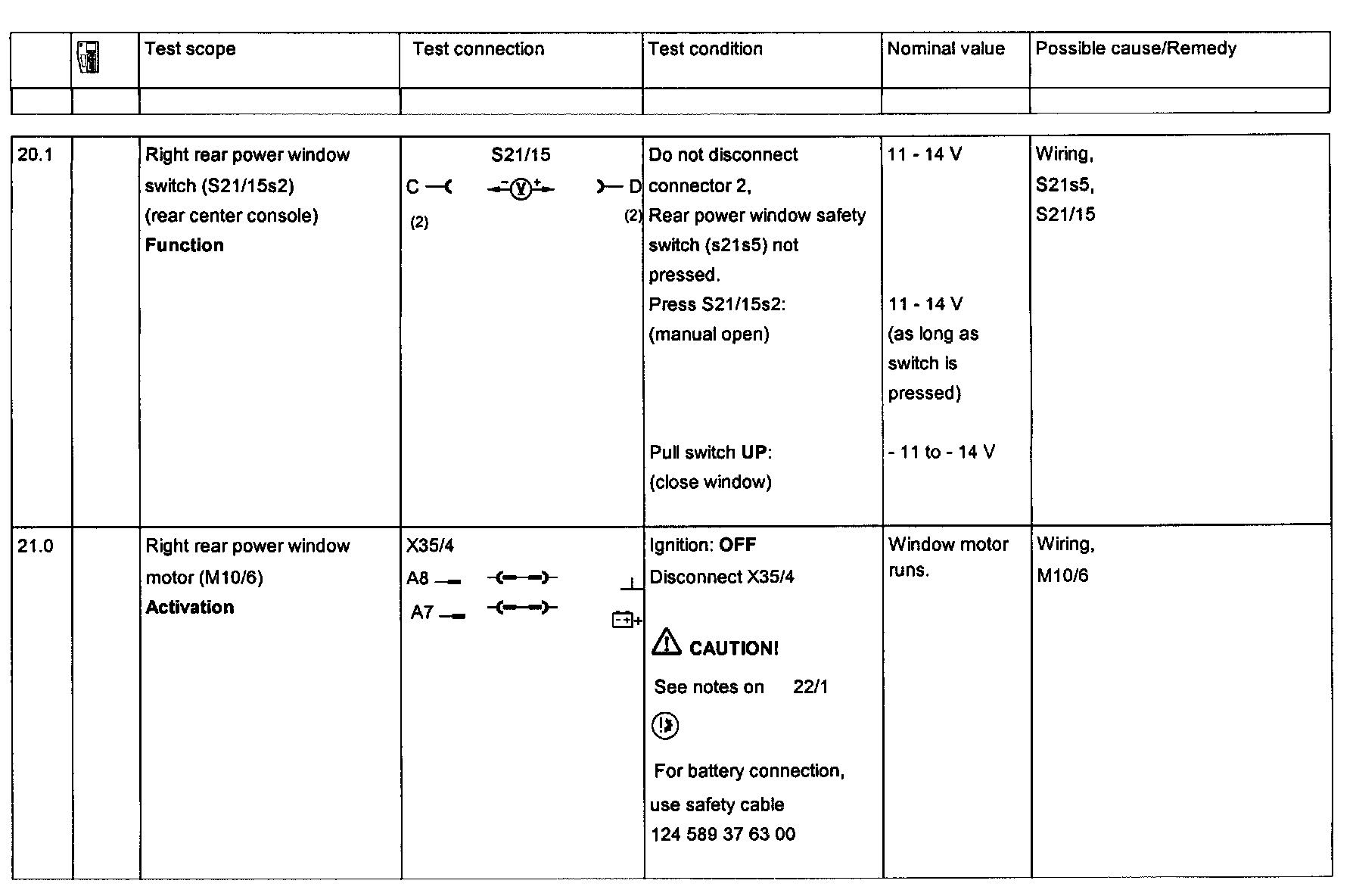

Steps 20.1 - 21.0:

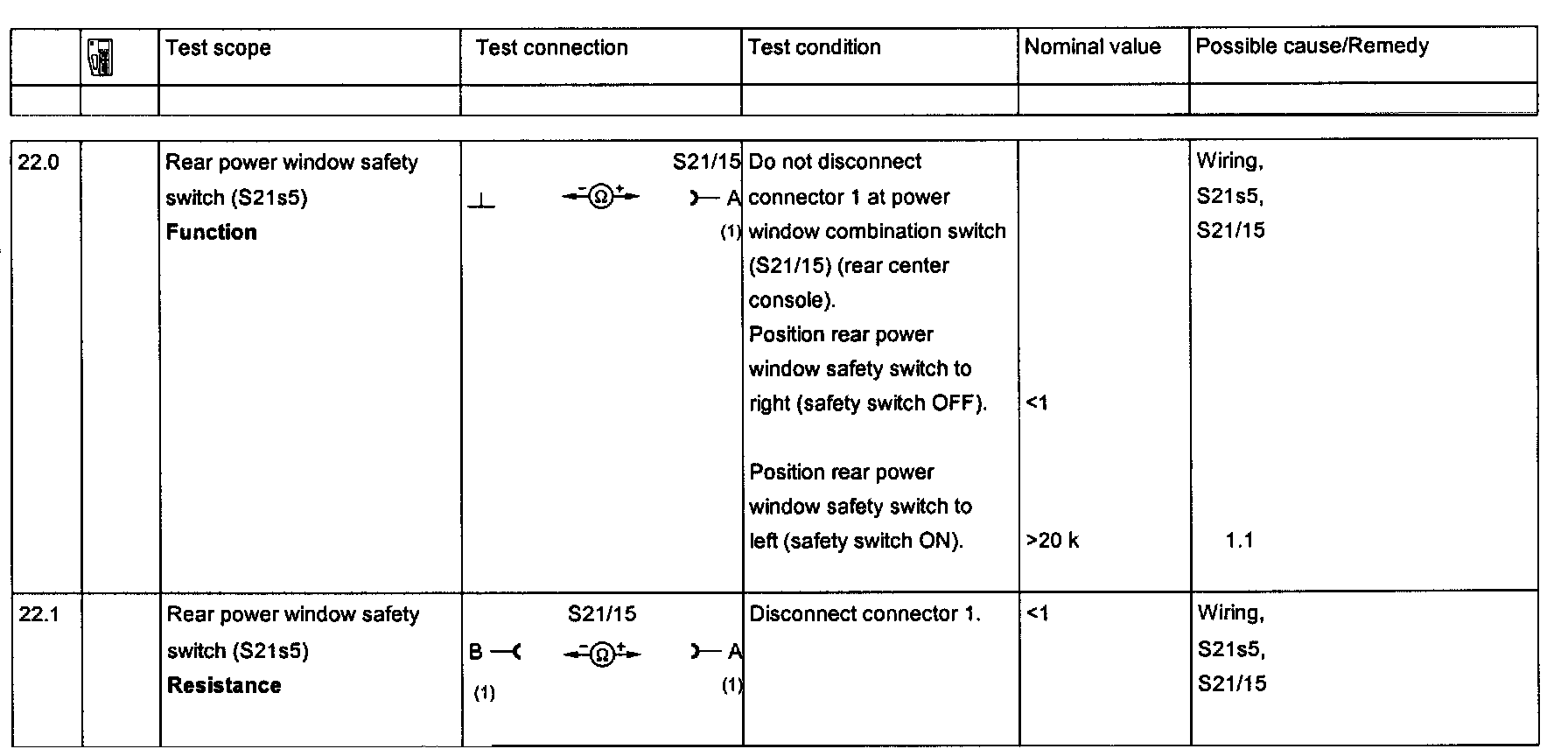

Steps 22.0 - 22.1:
