Electronic Ignition Switch Control Module

Location:

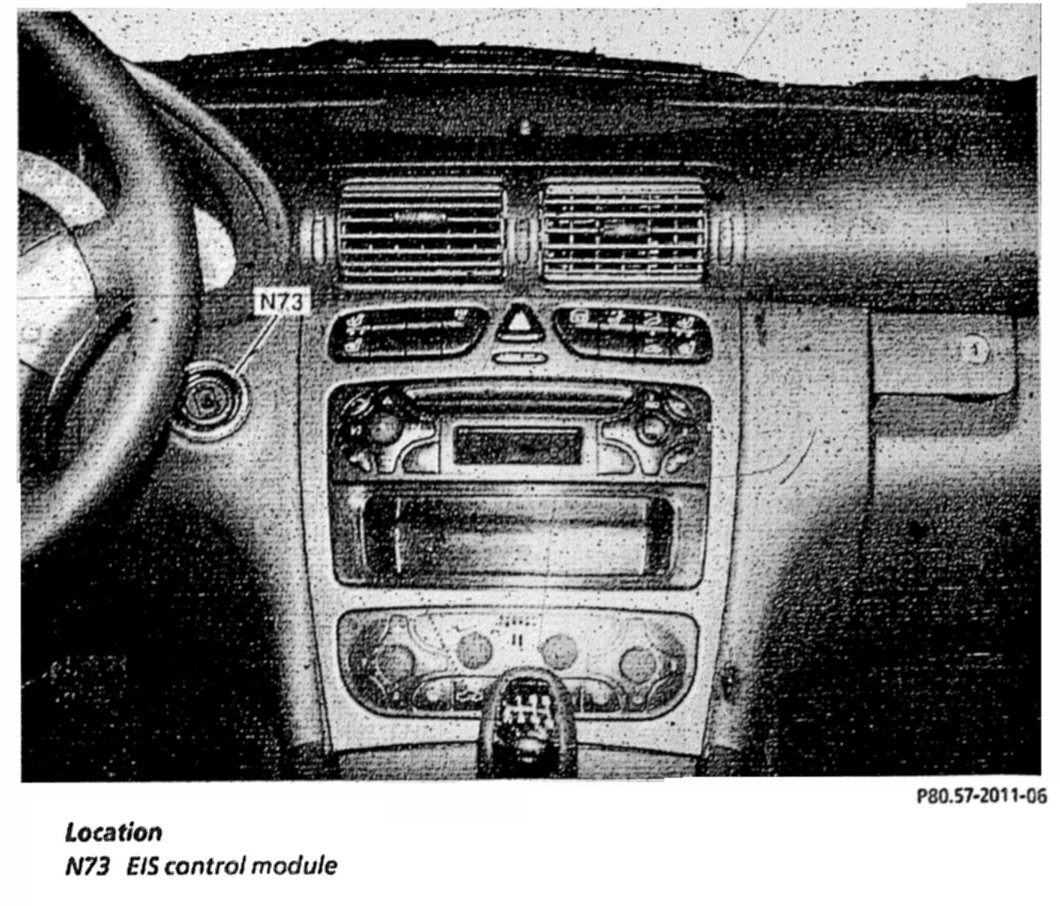

Location
The electronic ignition switch control module (N73) is located on the jacket tube.

Module


NOTE: In combination with the automatic air conditioning and comfort automatic air conditioning


Design
The EIS consists of the electromechanical ignition/starter switch, a control module and an infrared transmitter/receiver.

Function
Data interchange for drive authorization with the remote control key is accomplished via the infrared transmitter/receiver. The remote control key is supplied with power inductively by the EIS.
