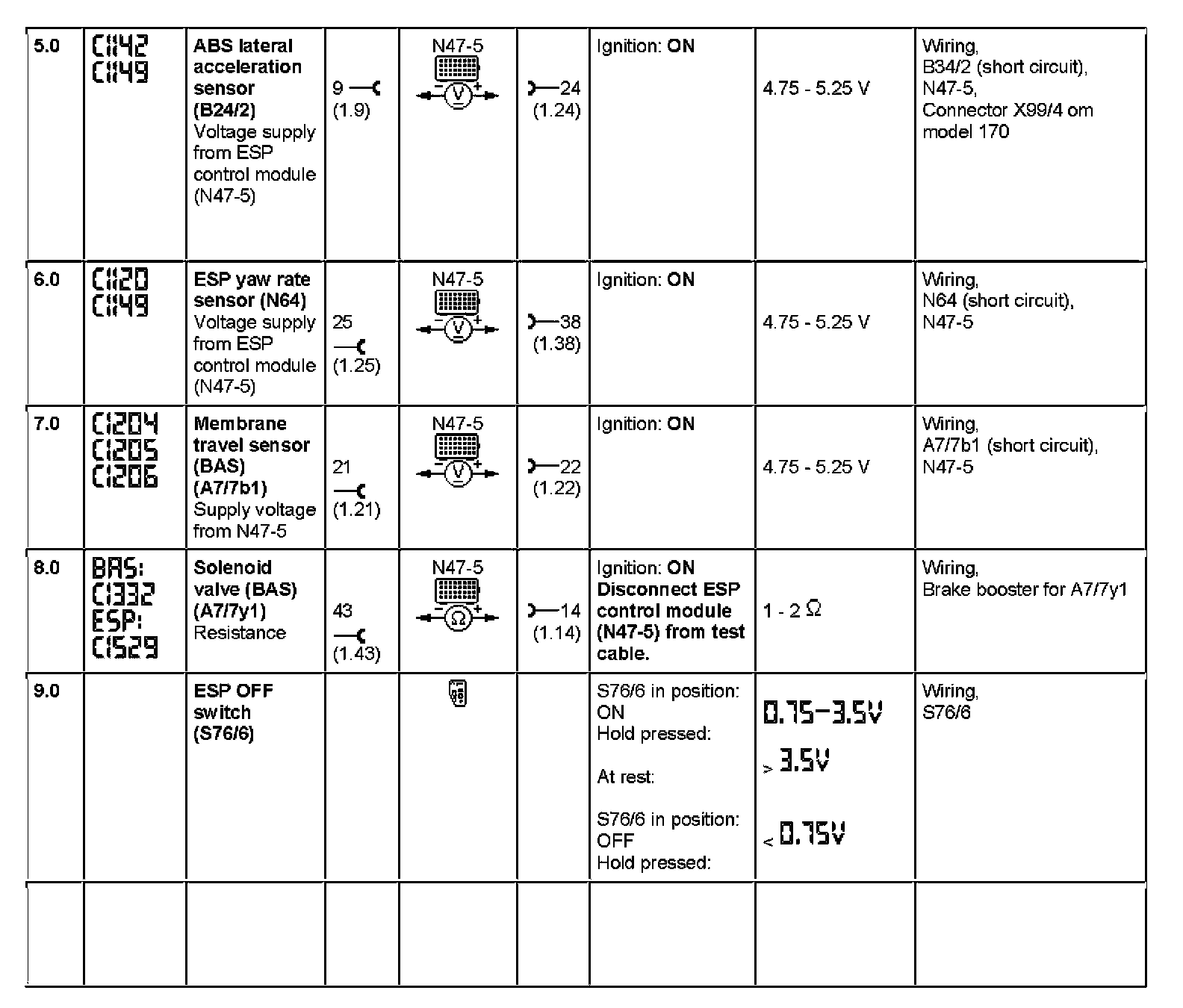

Electronic Stability Program and Speed-Sensitive Power Steering




Electronic Stability Program (ESP) and Speed-Sensitive Power Steering (SPS)

Model 170, 202 (with engine 111) as of MY 1999

Preliminary Information
Component Locations ETP - Component Locations [21]
Preparation for Test ETP - Preparation For Test [22]
Connector Layout ETP - Connector Layout [23]
