Air Flow Meter/Sensor: Service and Repair

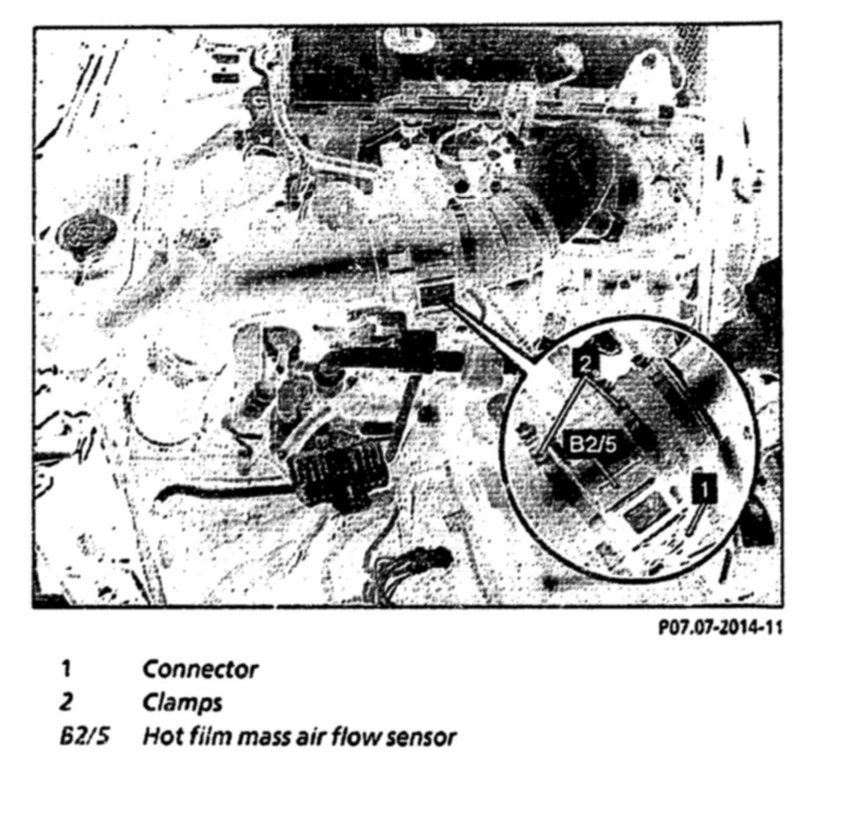

Removing and Installing Hot Film Mass Air Flow SensorRemoving, installing 1
Unplug connector (1) of electrical connection at
hot film mass air flow sensor (B2/5)
2
Slacken clamp (2)
3
Remove
hot film mass air flow sensor (B2/5)
4
Install in the reverse order
