Coolant Temperature Sensor, Task




Coolant Temperature Sensor, Task

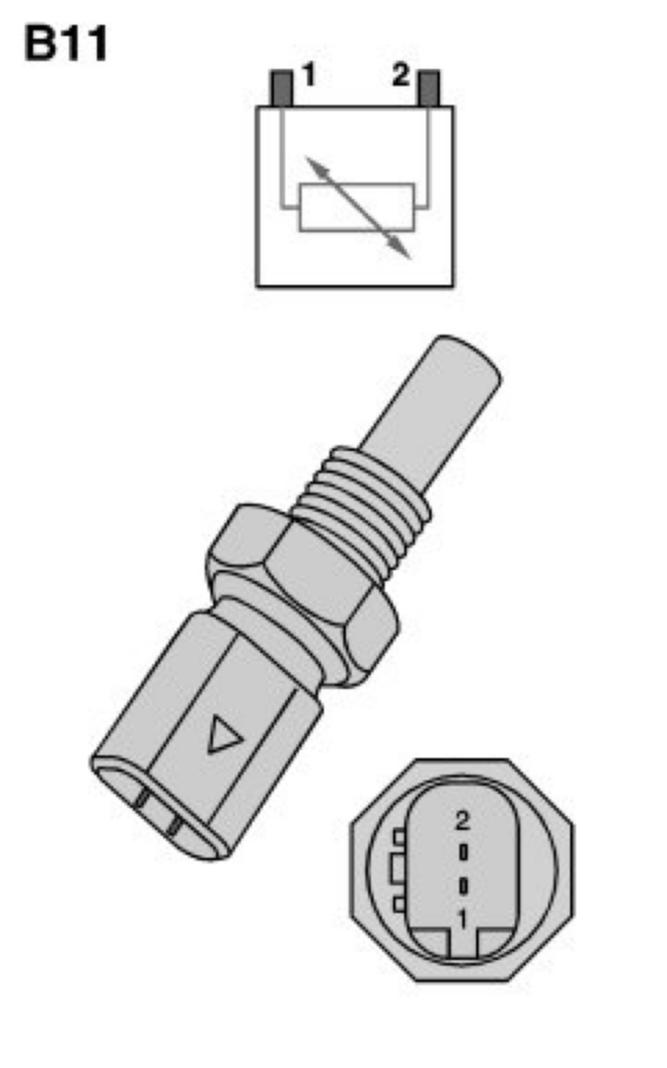

Illustration shows 2-pin plug connection
B11 Coolant temperature sensor

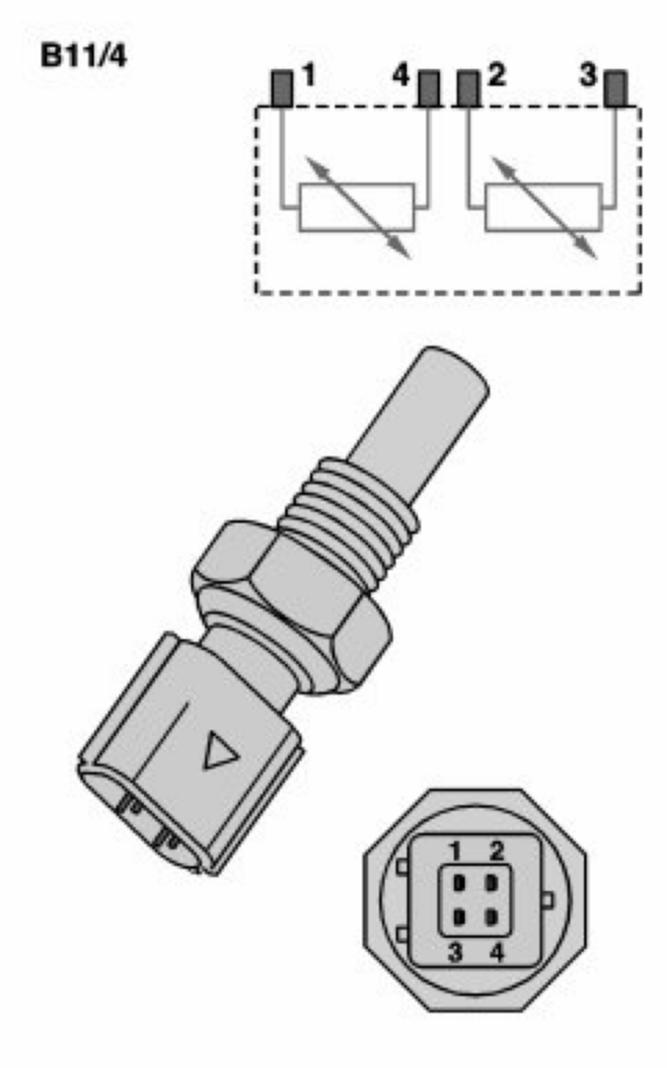

Illustration shows 4-pin plug connection
B11/4 Coolant temperature sensor (further designations e.g. B11/3)

Detecting the coolant temperature and supplying information to the engine control module
