ME-SFI Ignition System Function Diagram




ME-SFI Ignition System Function Diagram

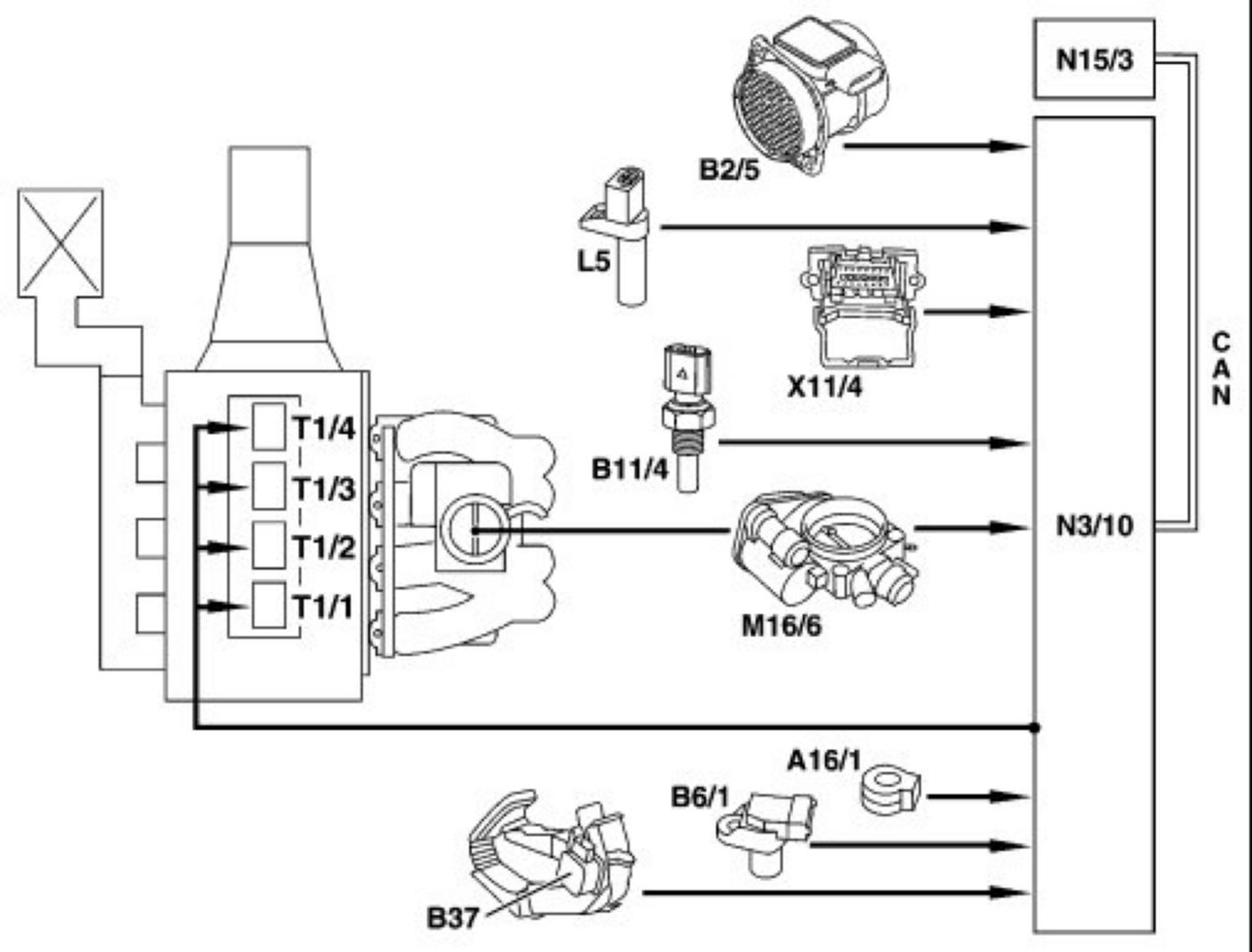

Basic diagram of ignition system with rotorless high voltage distribution engine 111 EURO 3
A16/1 Knock sensor
B2/5 Hot film mass air flow sensor (intake air temperature sensor integrated)
B6/1 Camshaft Hall sensor
B11/4 Coolant temperature sensor
B37 Pedal value sensor
L5 Crankshaft position sensor
M16/6 Throttle valve actuator
N3/10 ME-SFI control module
N15/3 ETC (electronic transmission control) control module
T1/1 Ignition coil cylinder 1
T1/2 Ignition coil cylinder 2
T1/3 Ignition coil cylinder 3
T1/4 Ignition coil cylinder 4
X11/4 Datalink connector
CAN Databus (Controller Area Network)
