AH07.61-P-0002-02KE ME-SFI Vehicle Features



AH07.61-P-0002-02KE ME-SFI Vehicle Features

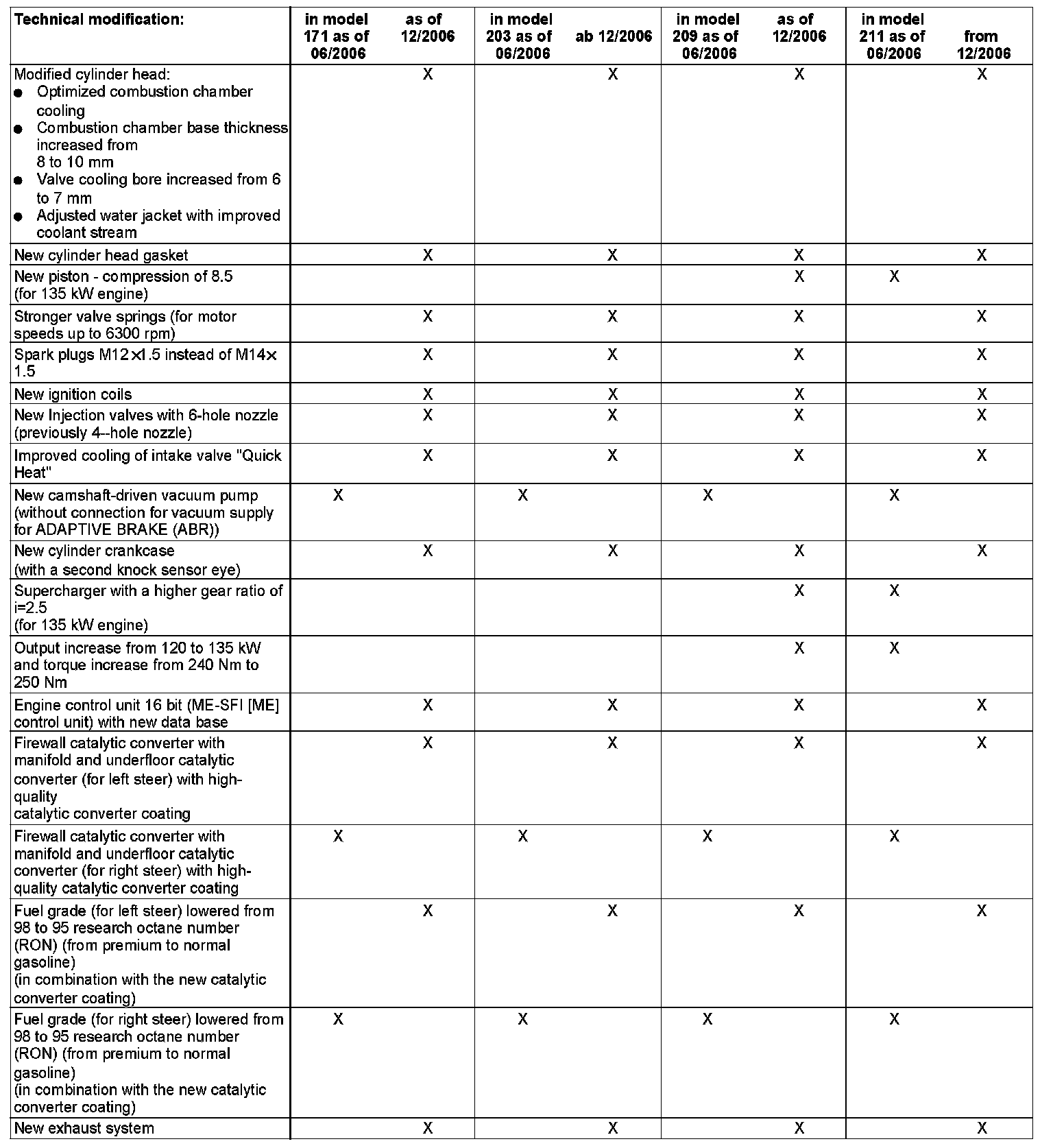

- Scope of changes for engine 271 REPO

Engine 271 underwent model refinement in 2006. Technical modifications on the model refined engines 271 REPO (repositioning) were introduced from 06/06 in two steps.

The following engines belong to the REPO engines:
- 271.944 in model 171 with 120 kW (from 12/06)
- 271.921 in model 203 with 90 kW (from 12/06)
- 271.946 in model 203 with 105 kW (from 12/06)
- 271.940 in model 203 with 120 kW (from 12/06)
- 271.955 in model 209 with 135 kW
- 271.956 in model 211 with 135 kW
