Communications Control Module: Service and Repair



AR82.70-P-7010PC Remove/Install Universal Cell Phone Interface Control Unit
- with CODE (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system

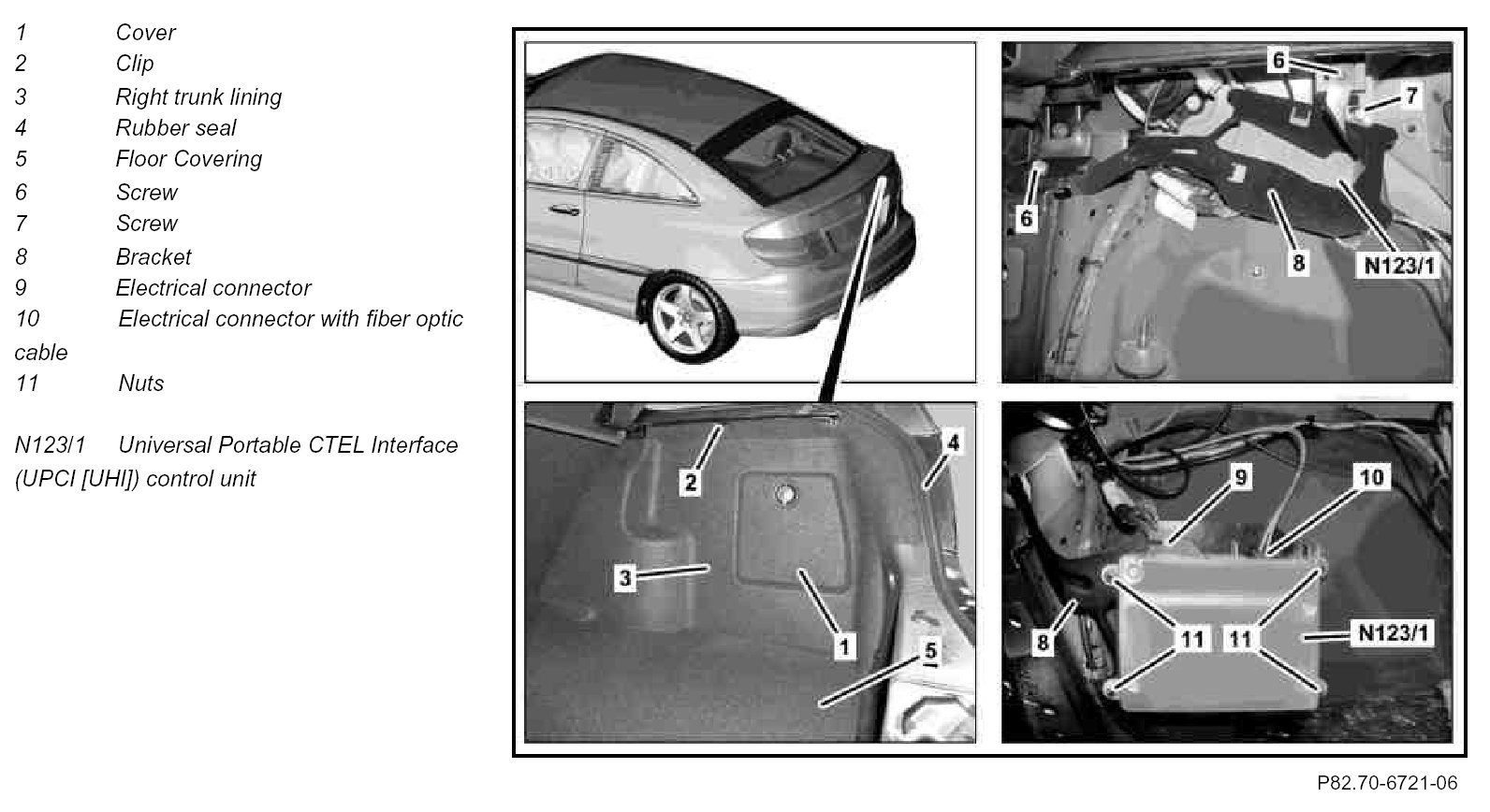

Component Identification:

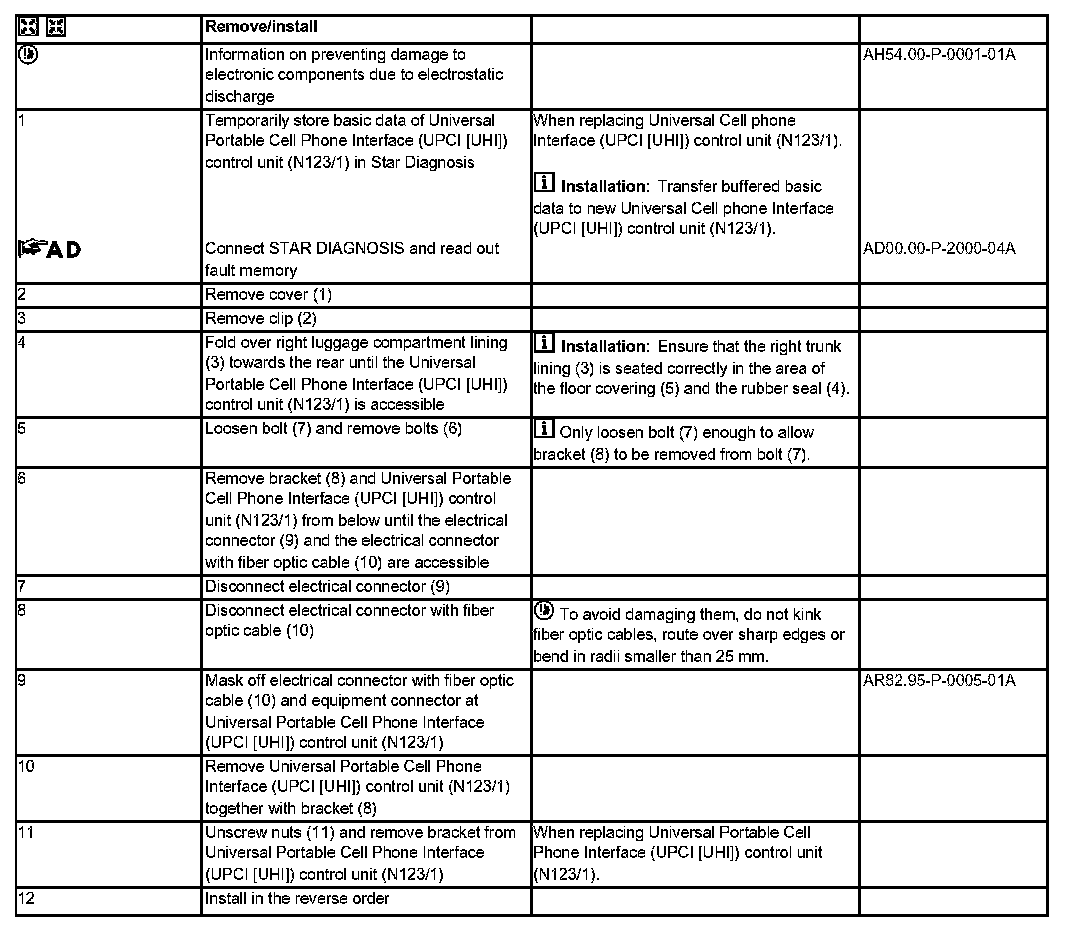

Steps 1 - 12:
