Steering Column Control Module

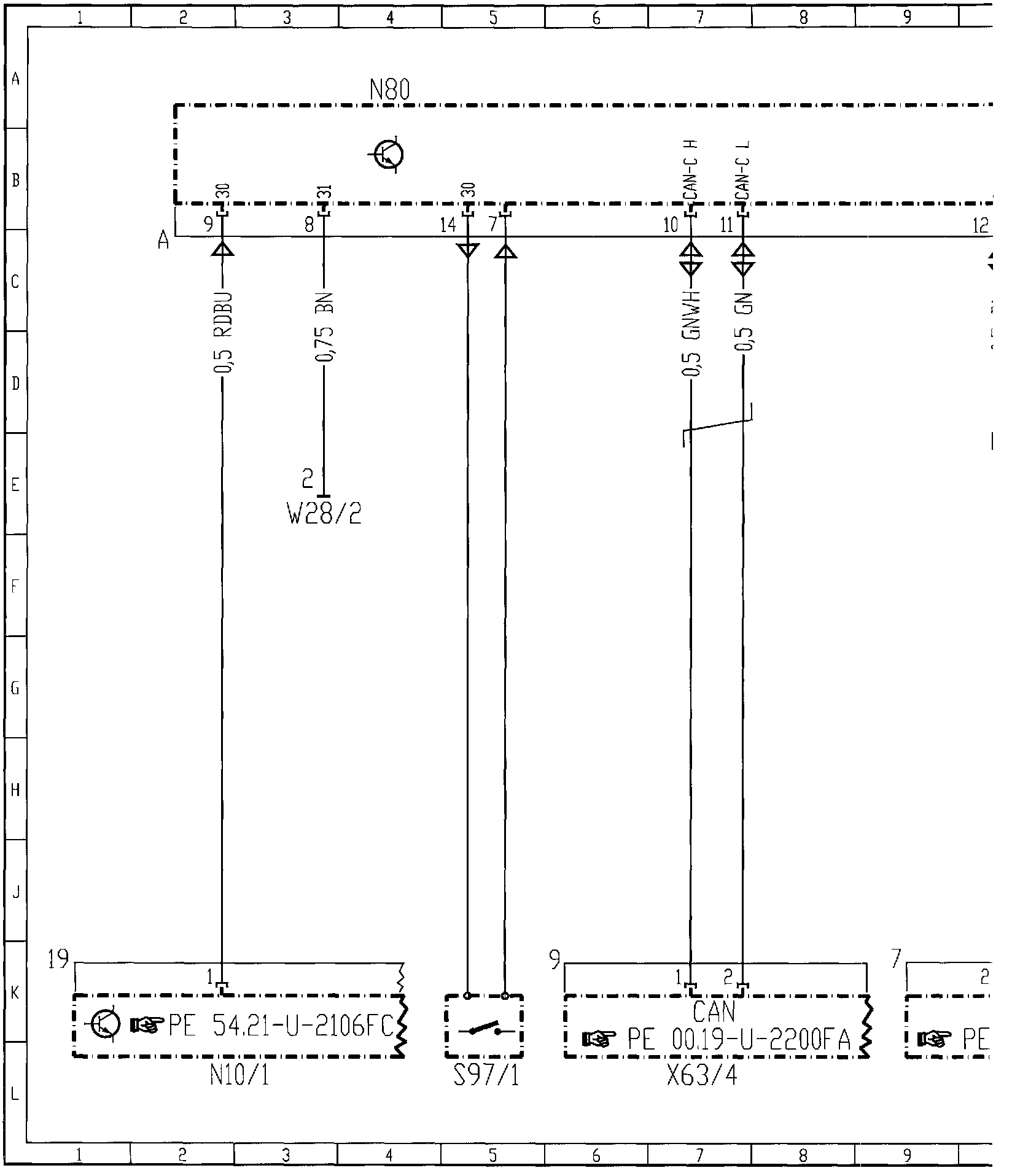

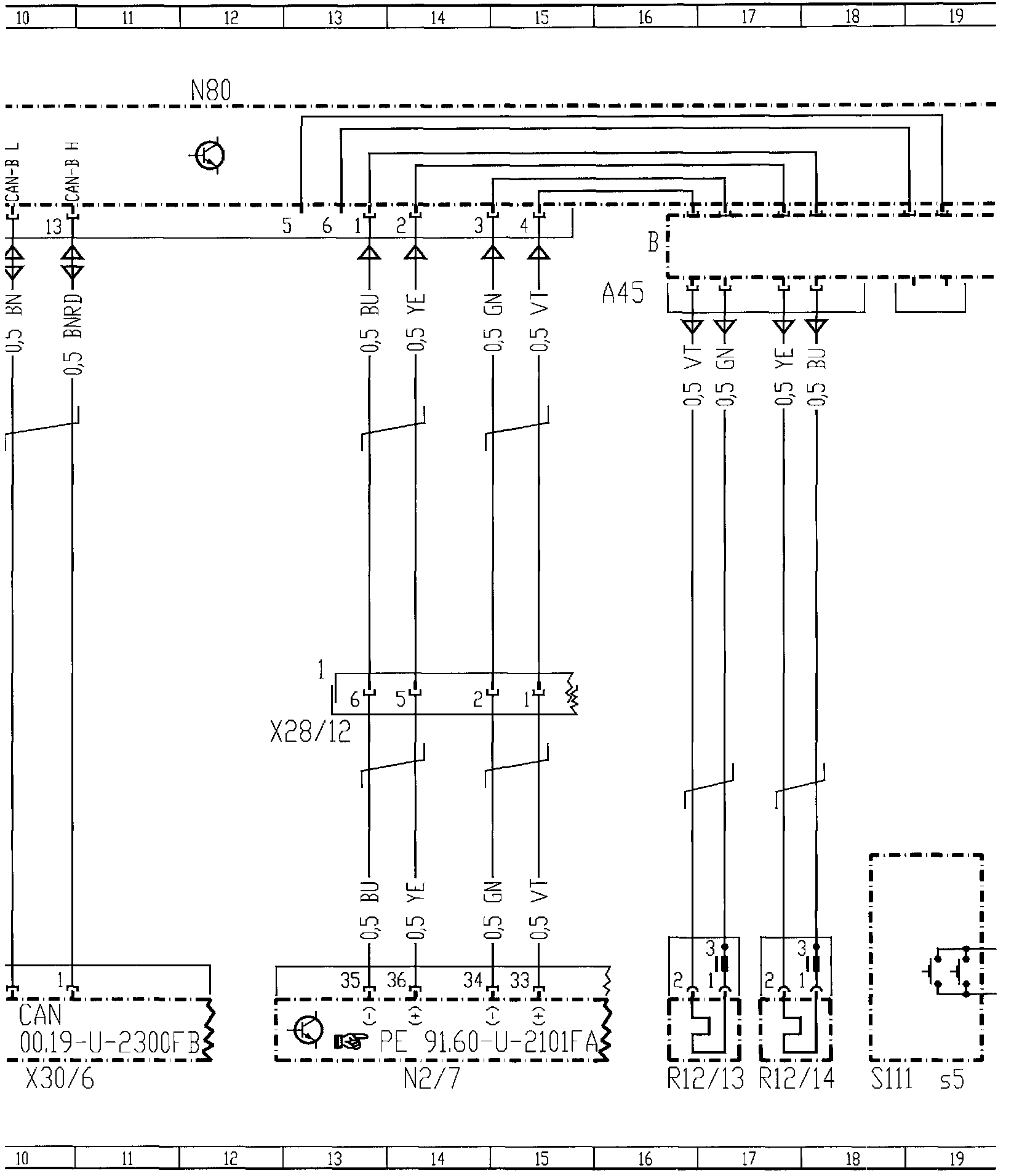

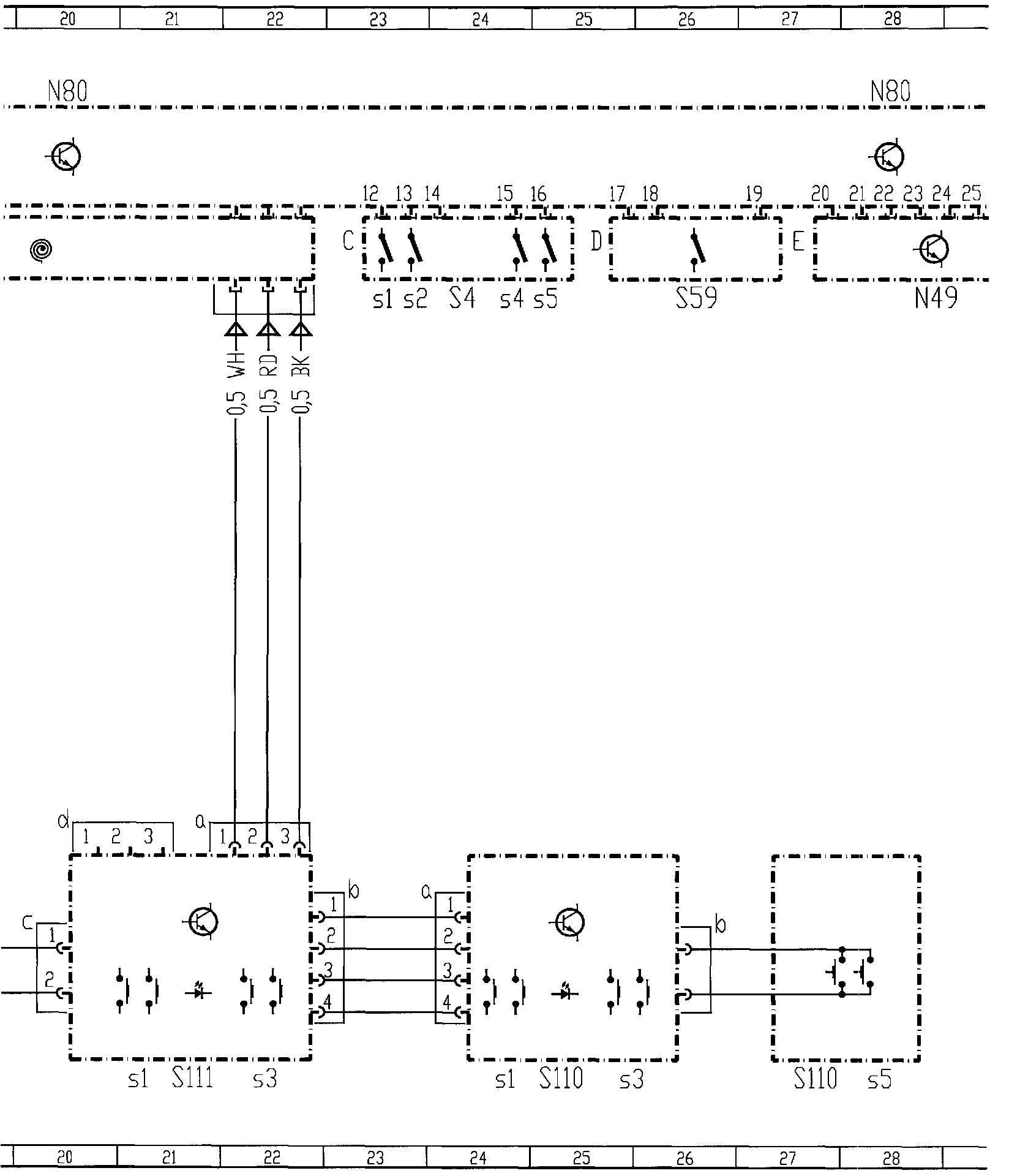

Electric Steering Column (ESC) Control Module PE46.10-U-2101FASteering Column Module Control Module:
Steering Column Module Control Module:
Steering Column Module Control Module:
Steering Column Module Control Module:

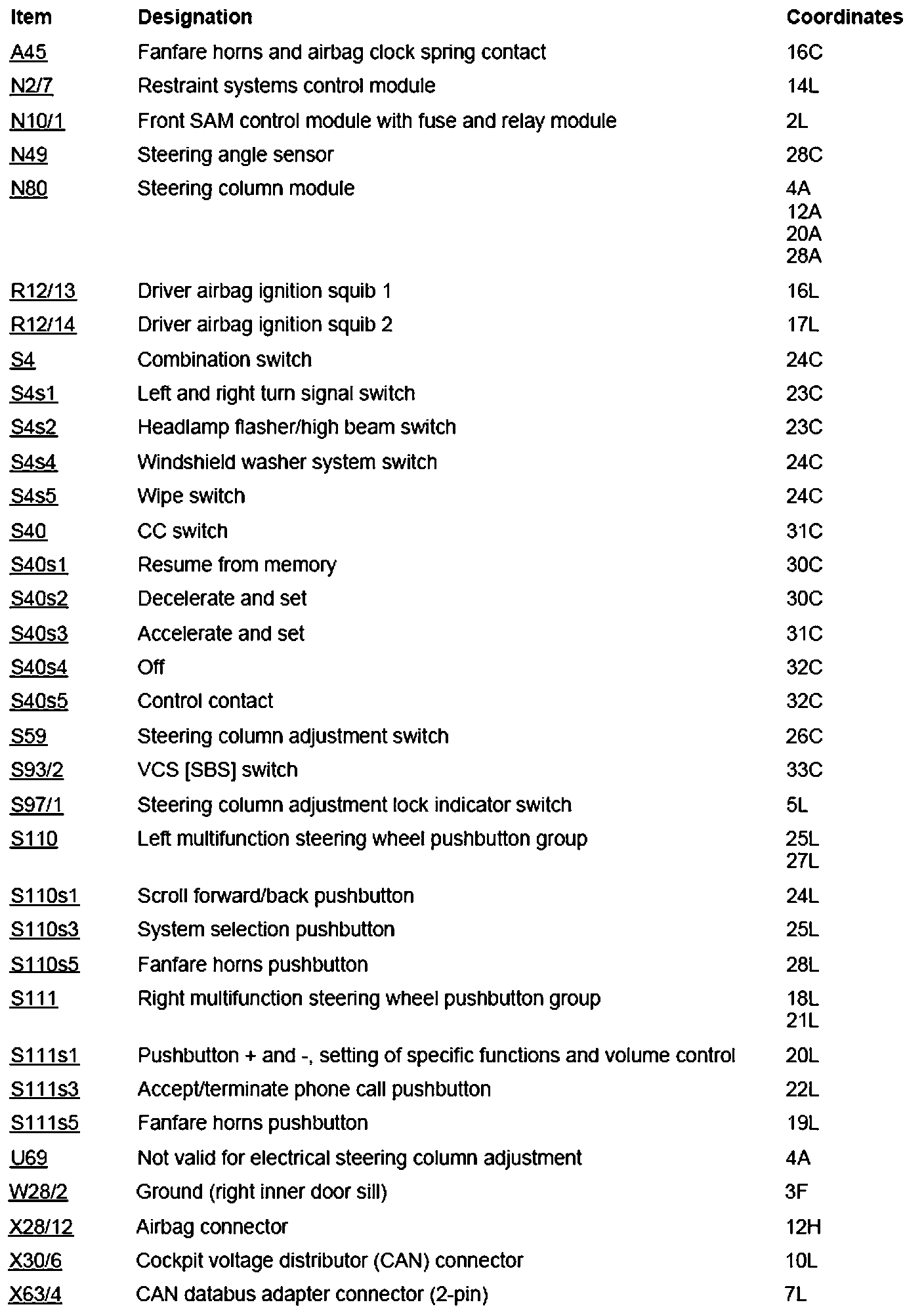

Legend:
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
