Solar Sensor: Service and Repair
AR83.40-P-6720P Remove/Install Sun Sensor
- with CODE (581b) Convenience automatic air conditioning
DANGER:
- Injury Hazard! Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities.
- Always remove ignition key when working on windshield wiper mechanism.
1 Open engine hood

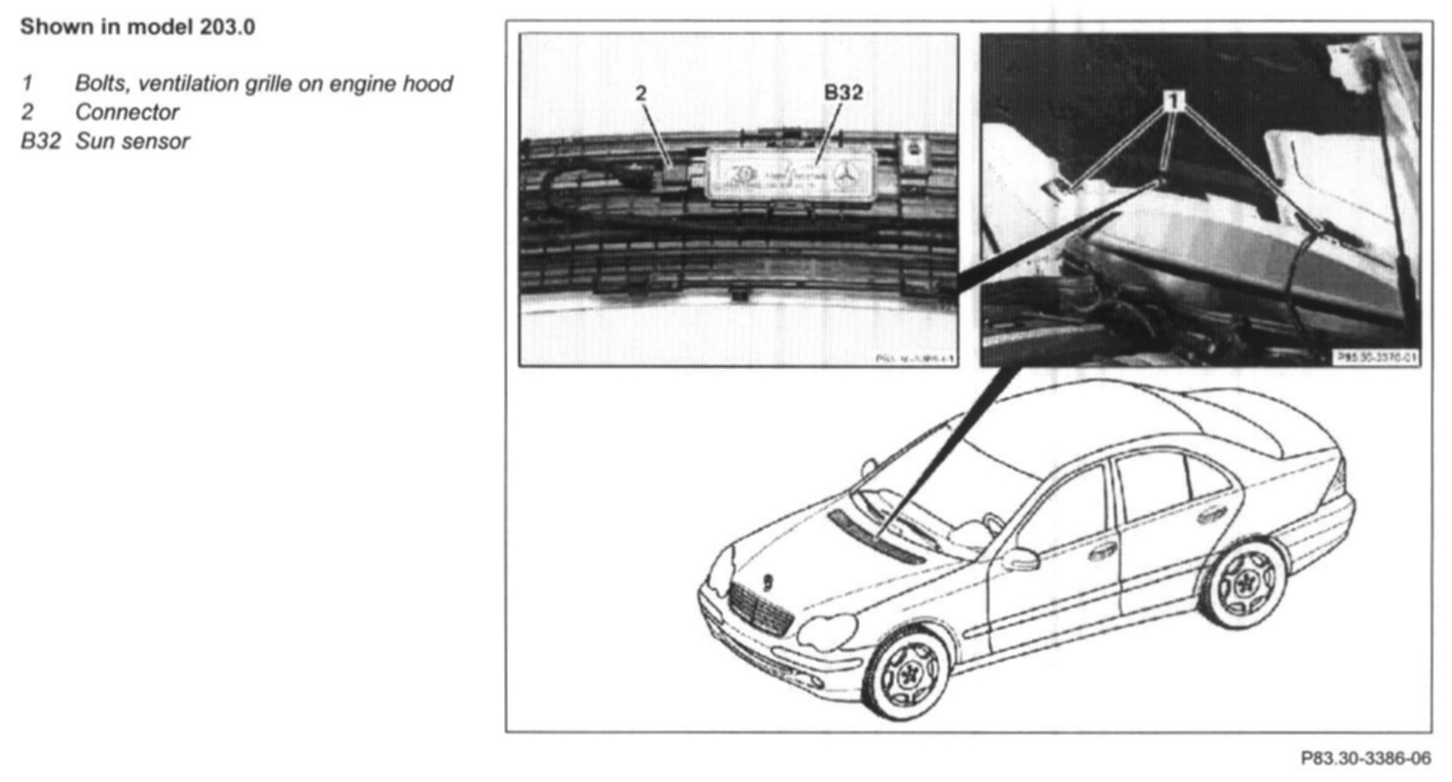

2 Unscrew bolts, ventilation grille to engine hood (1)
3 Remove ventilation grille
CAUTION: Avoid damage to paint at the engine hood and the ventilation grille.
4 Disconnect connector (2) from sun sensor (B32)
5 Unclip sun sensor (B32)
CAUTION: Pay attention to installation position.
6 Install in the reverse order.
