Function Diagrams
Function Diagram Of Electrical System For ME Engine Control PE07.61-U-2050FE - ME SIM4

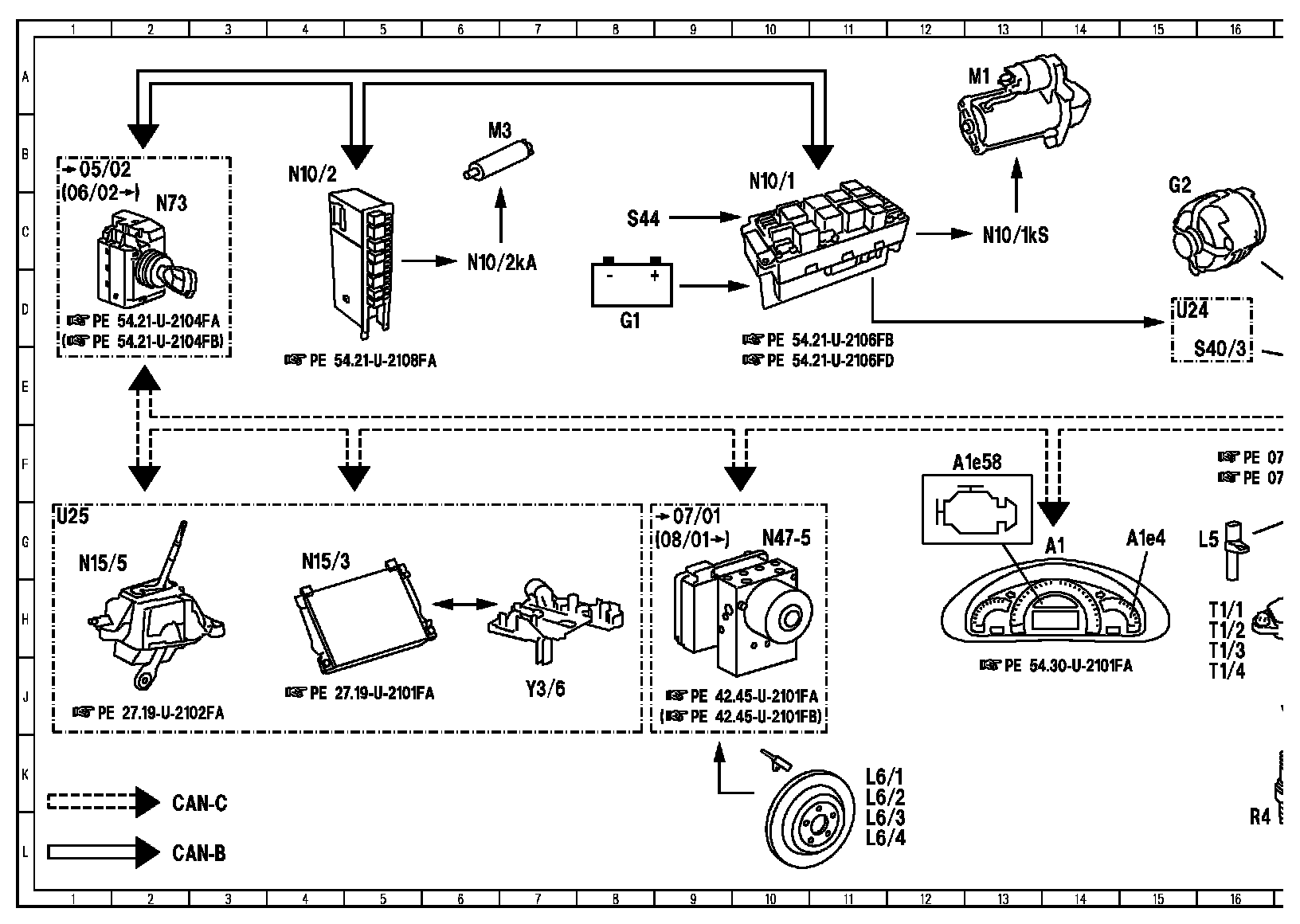

Function Diagram, Part 1:

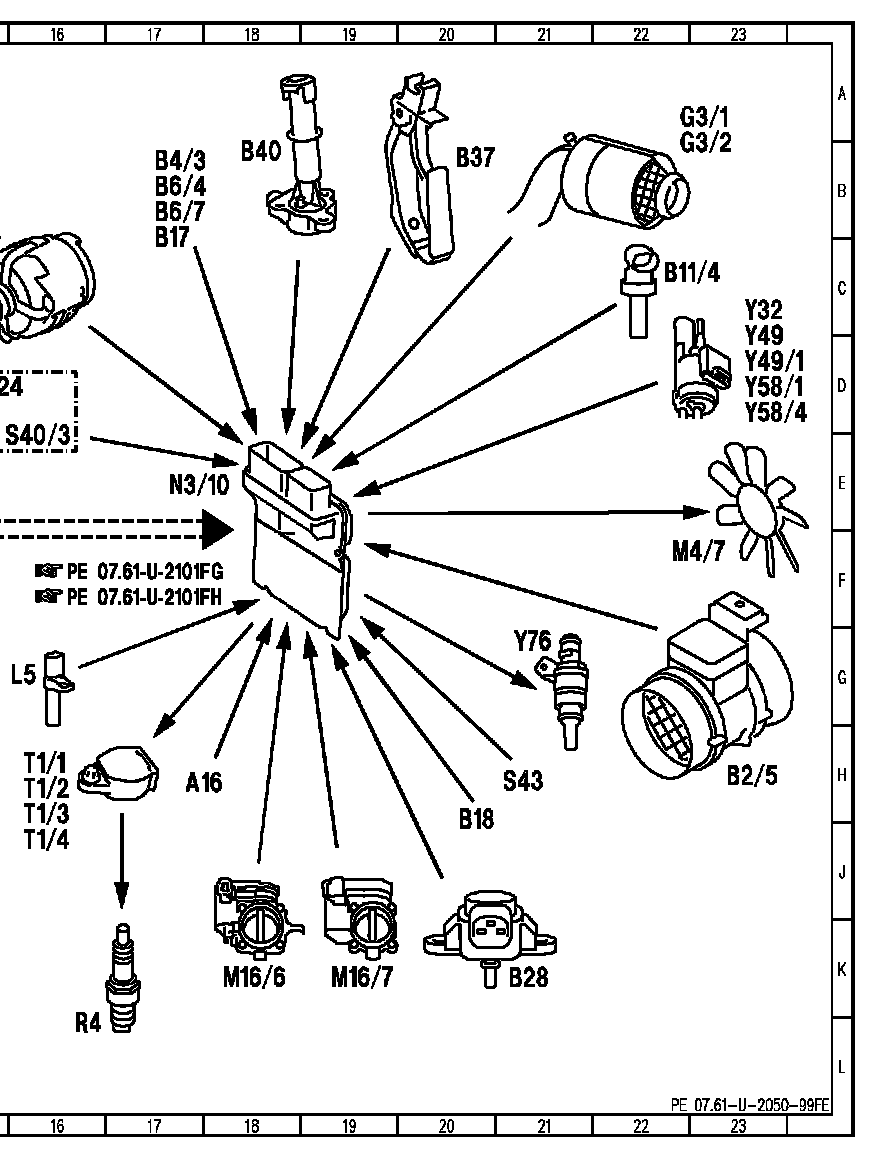

Function Diagram, Part 2:

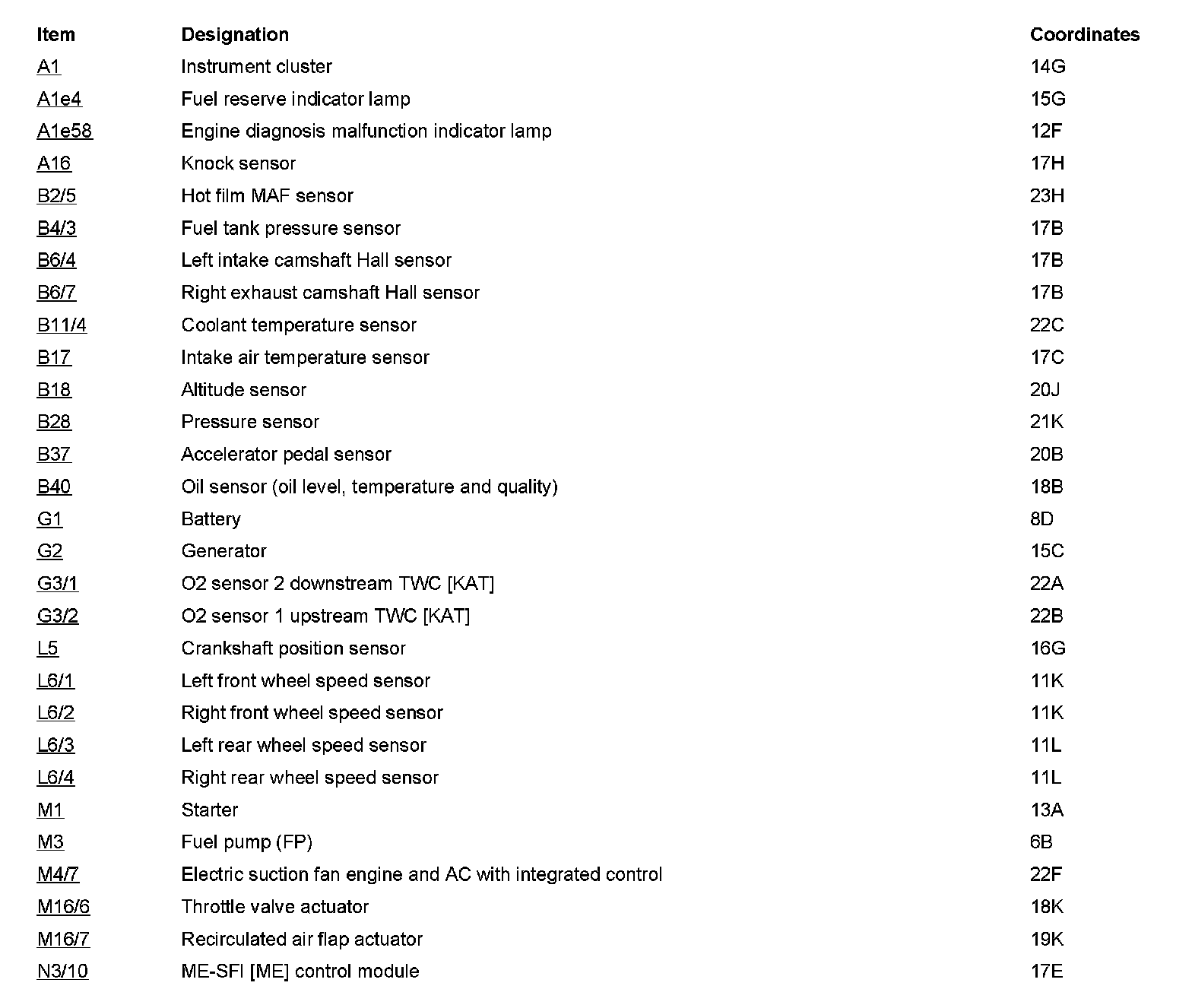

Component Description/Coordinates, A1 To N3/10:

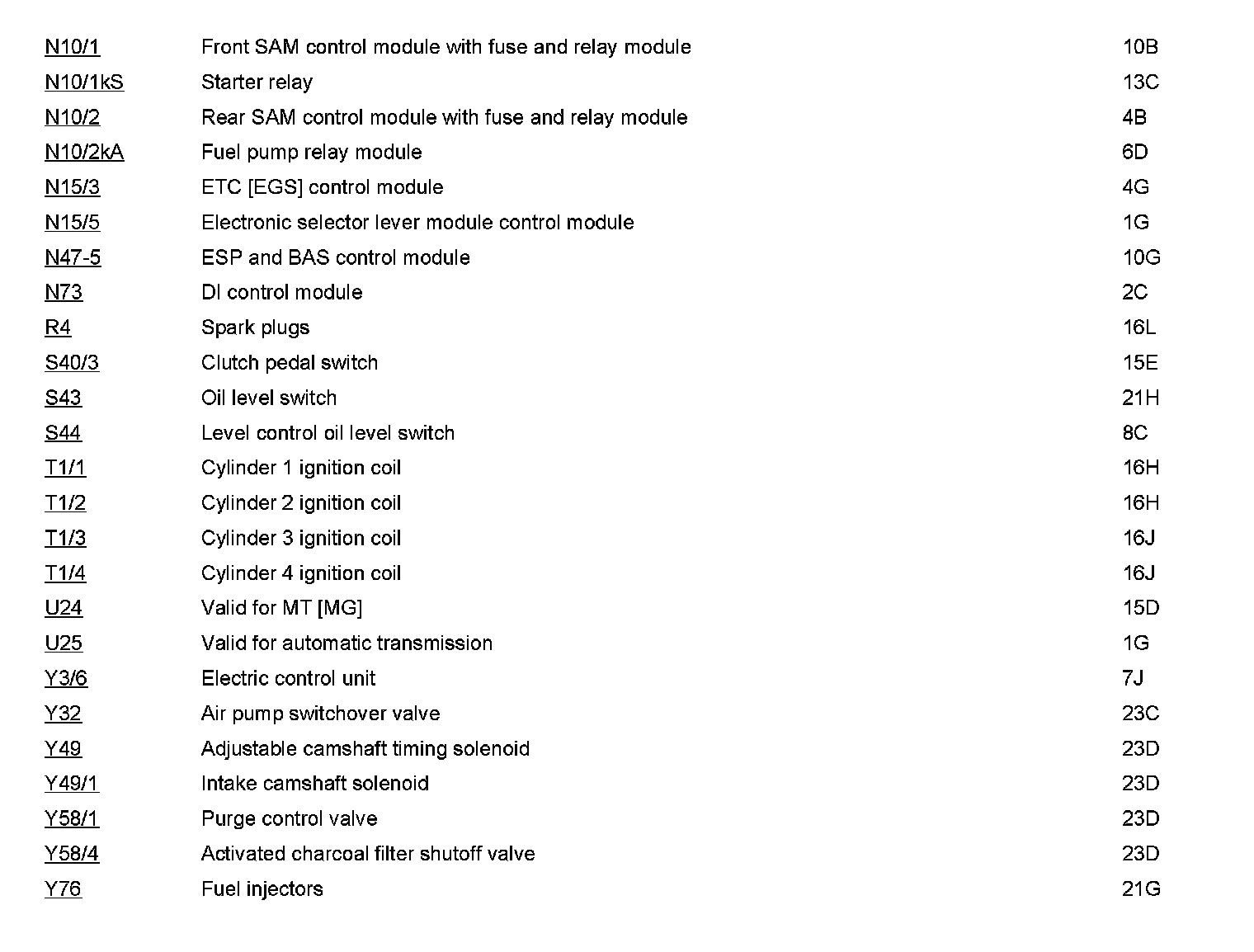

Component Description/Coordinates, N10/1 To Y76:
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
