Electronic Selector Module Control Module PE27.19-U-2102FA



PE27.19-U-2102FA Electronic Selector Module Control Module
- Transmission 722.6/9

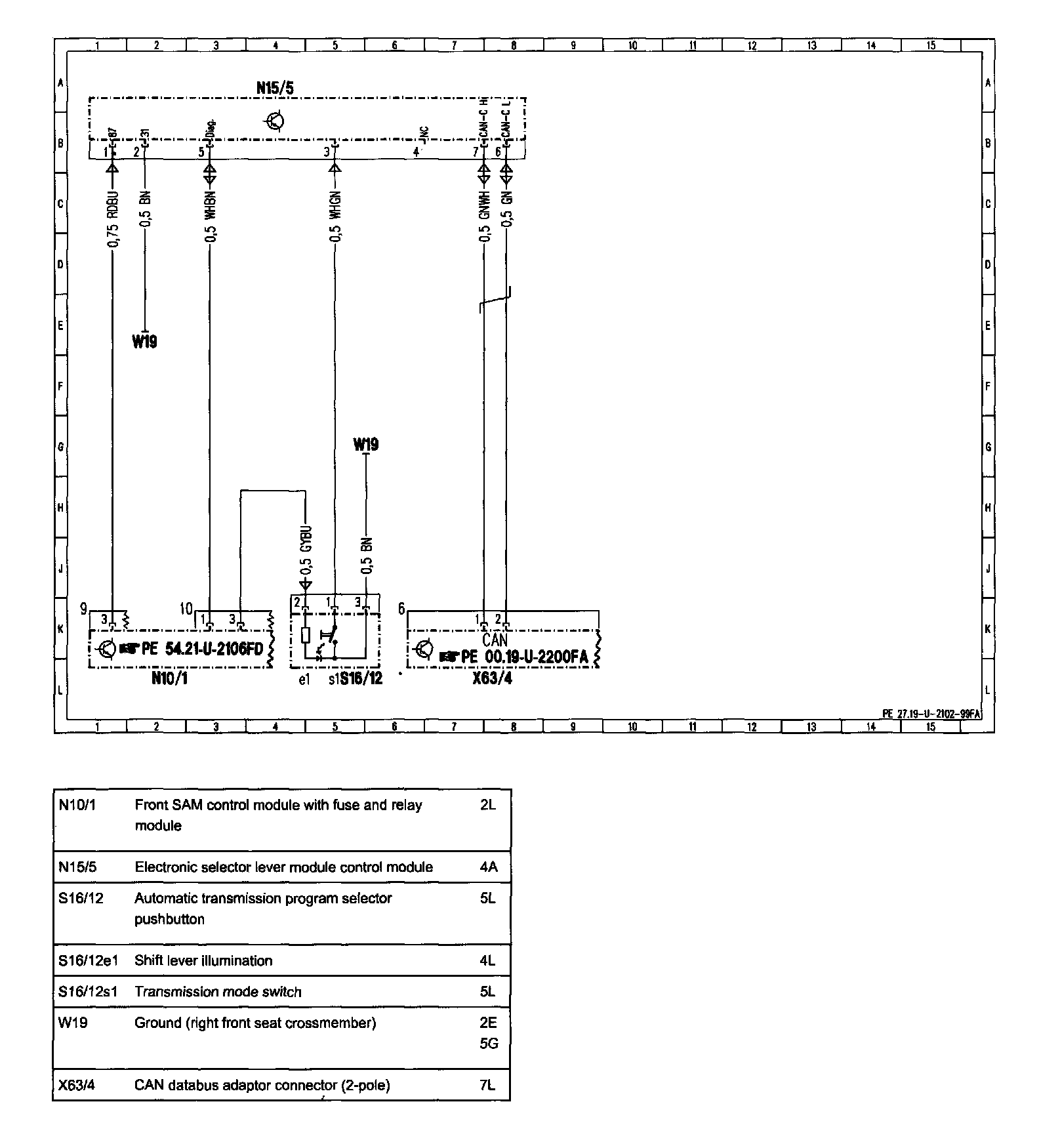

Wiring Diagram PE27.19-U-2102FA:

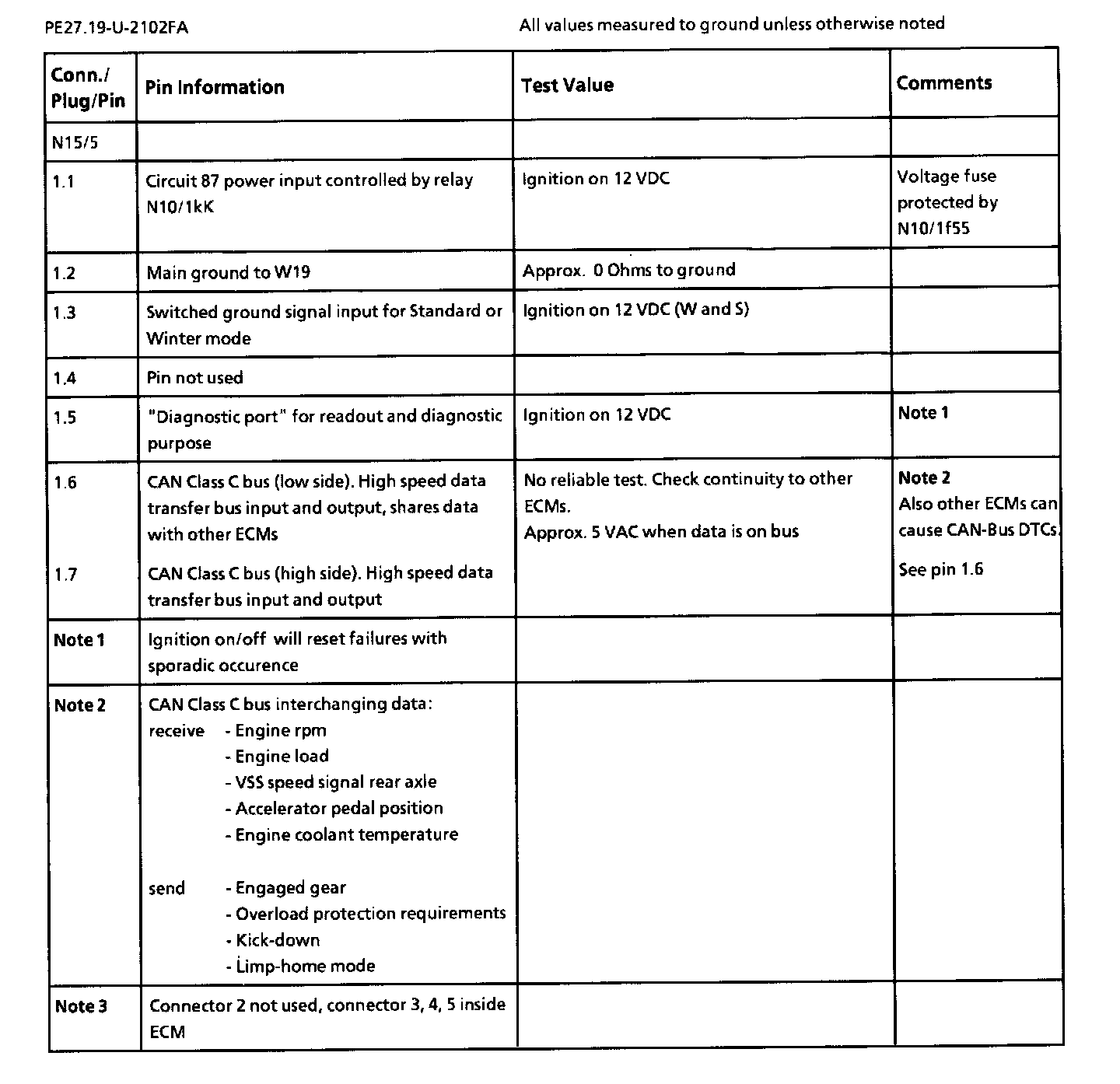

Pin Information:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
