GF54.21-P-4116PP Lower Control Panel Control Module, Location / Task / Design




GF54.21-P-4116PP Lower Control Panel Control Module, Location / Task / Design
- MODEL 203
- with CODE (219) Distronic (DTR) up to Model Year 8 up to Model Year 8

- MODEL 203
- with CODE (228) Stationary heater up to Model Year 8

- MODEL 203
- with CODE (450) Taxi version up to Model Year 8

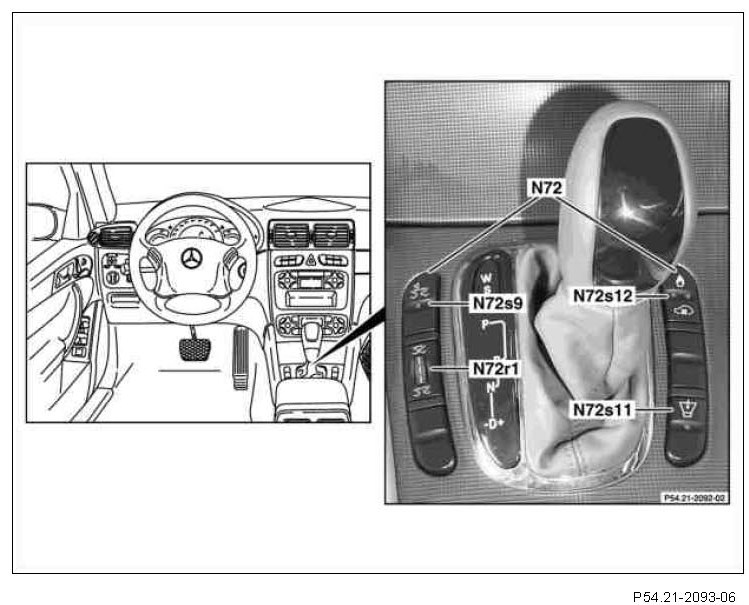

N72 Lower control field control module
N72r1 DTR distance potentiometer
N72s9 DTR switch
N72s11 Radio switch
N72s12 STH switch
