Emergency Call System Control Module PE82.95-U-2101BD



Emergency Call System Control Module PE82.95-U-2101BD
- control module A35/17 with D2-bus

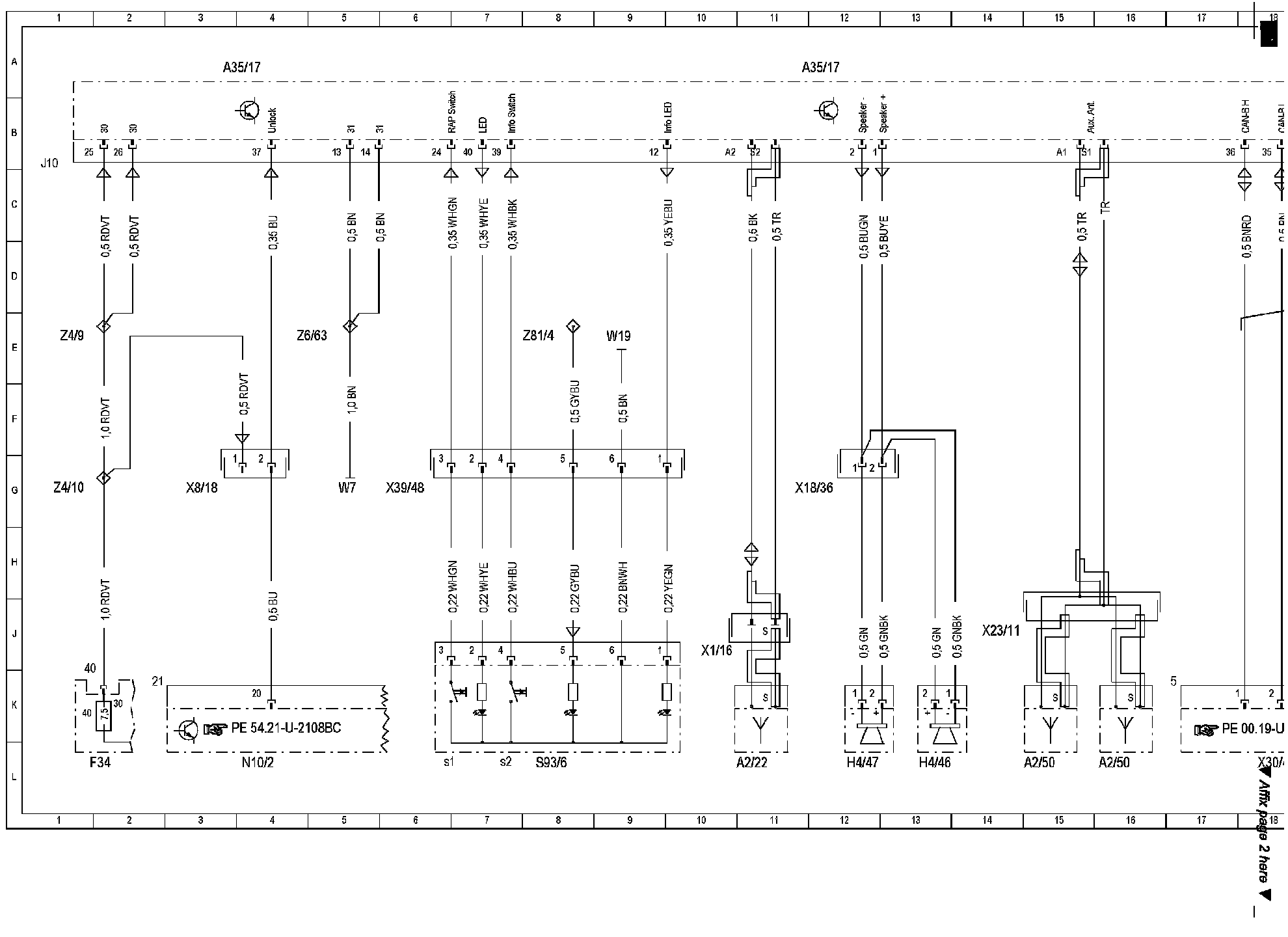

Wiring Diagram (Part 1):

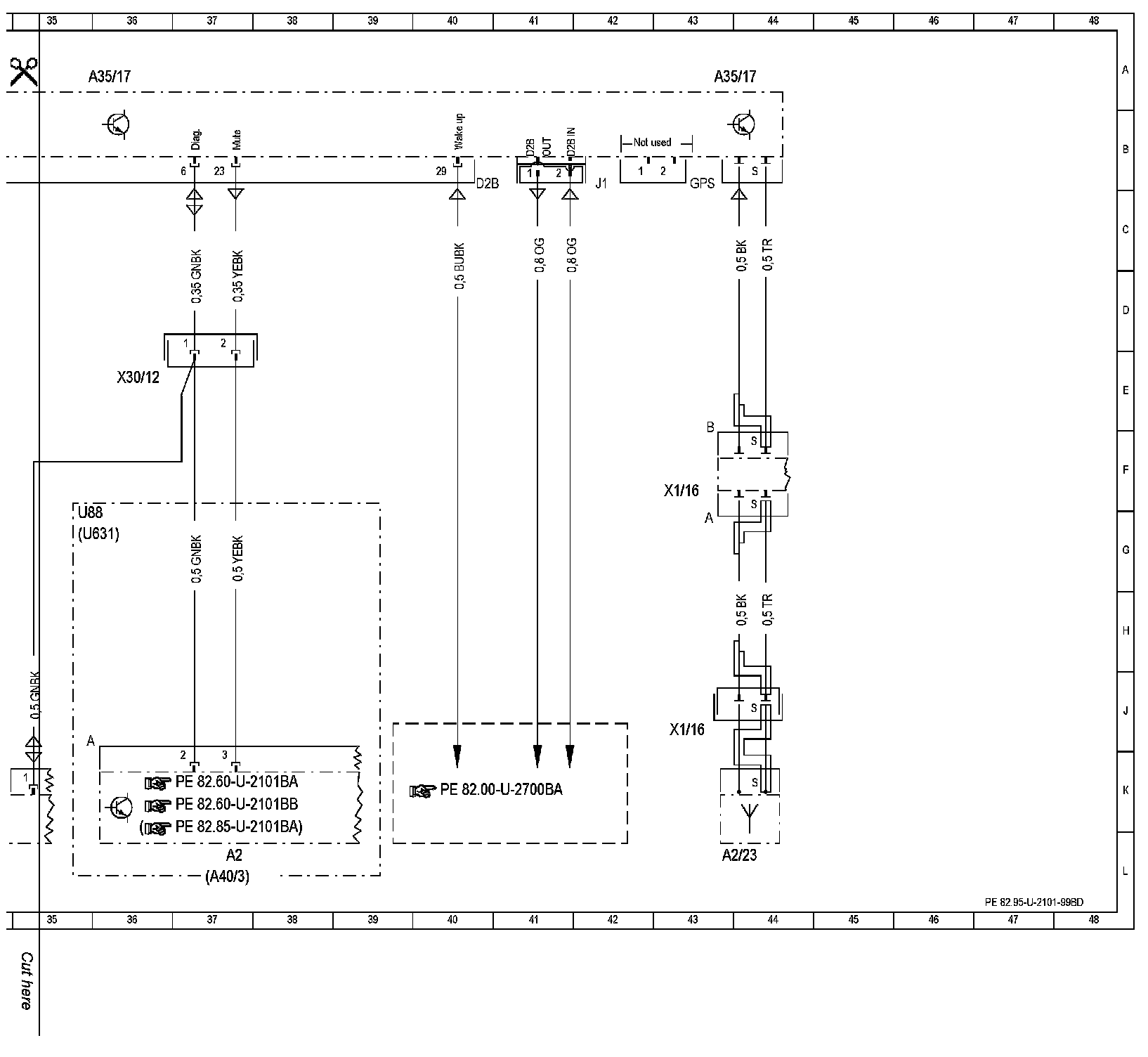

Wiring Diagram (Part 2):

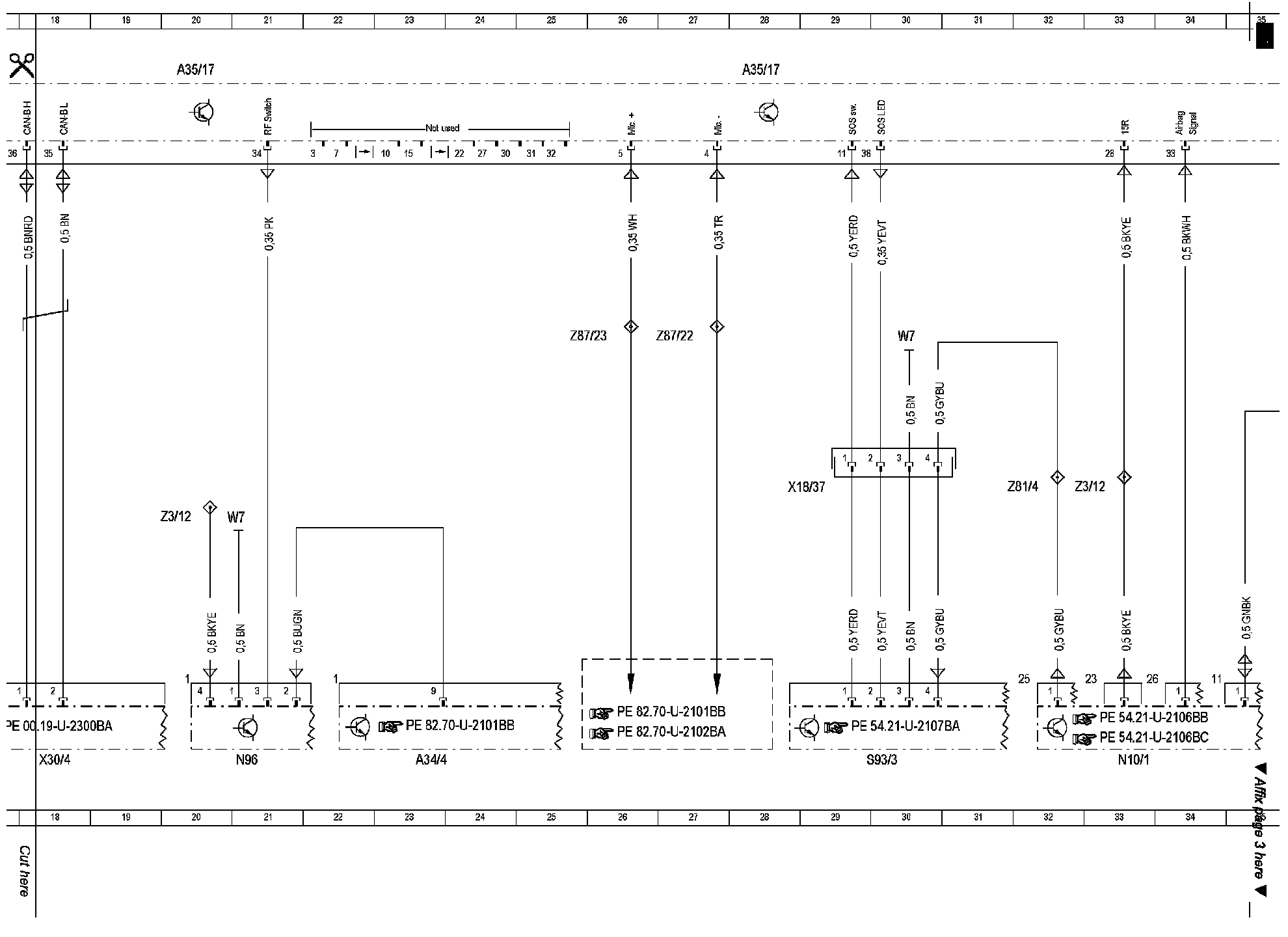

Wiring Diagram (Part 3):

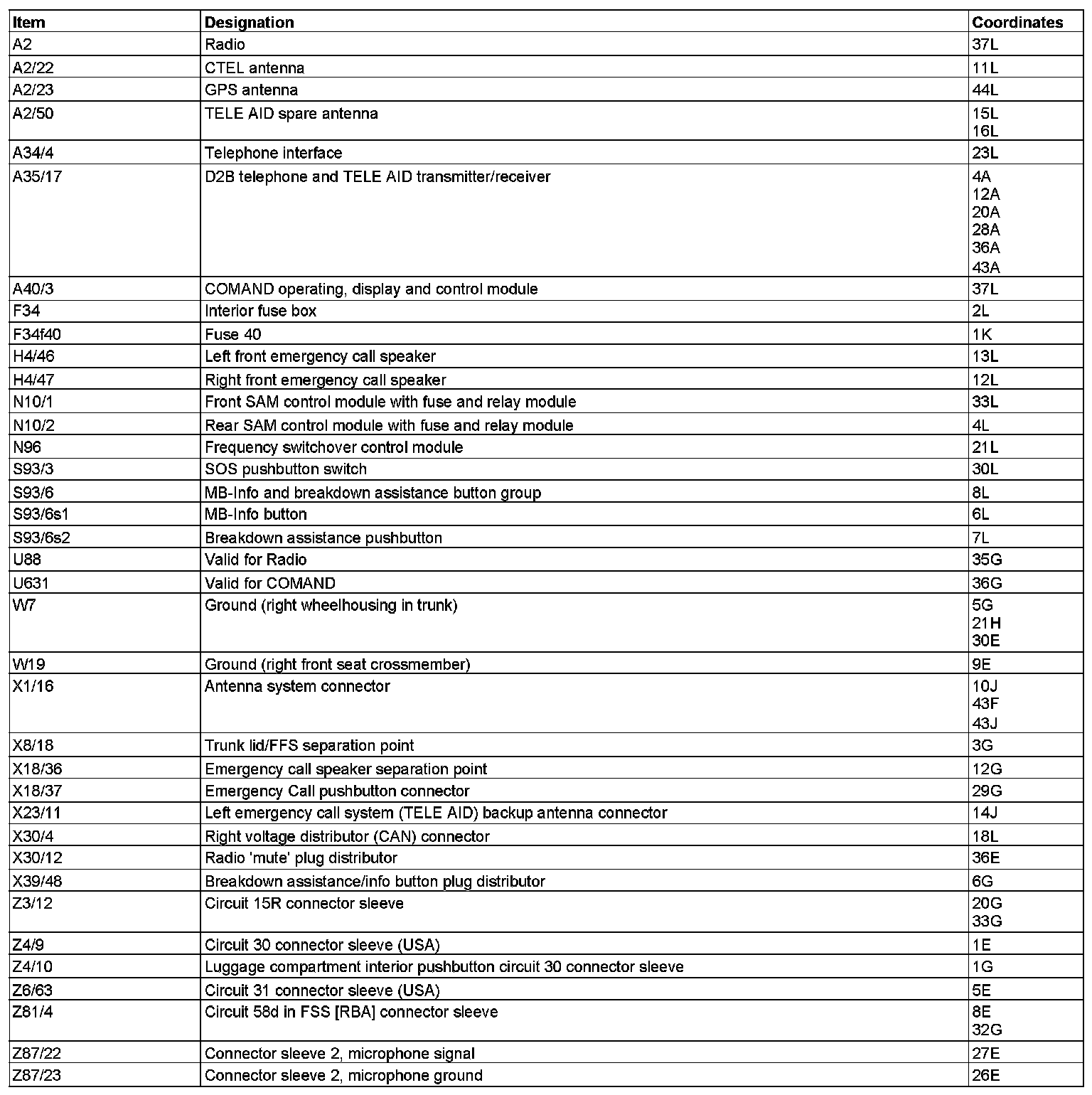

Component Description/Coordinates, A2 To Z87/23:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
