Keyless Entry Transmitter Battery: Service and Repair

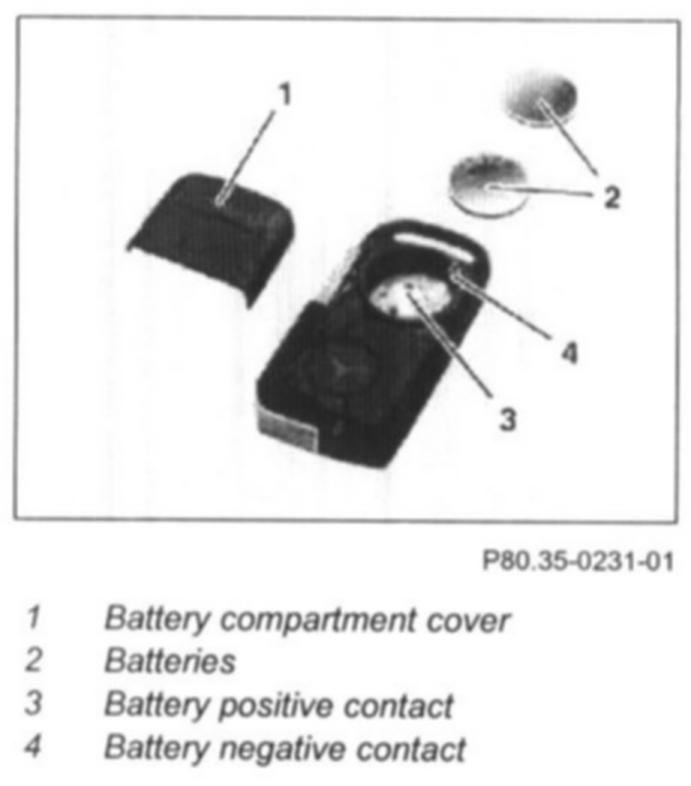

Removing And Installing Batteries For Remote Control Key

Removing, installing
1 Press off battery compartment cover (1)
2 Remove batteries (2) and replace

NOTE:
- Dispose of discharged batteries properly
- Installation: Observe polarity of batteries. Ensure that the battery contacts (3, 4) make proper contact with the battery.

3 Install in the reverse order
4 Synchronize transmitter signal for radio remote control
