AR54.21-P-1200GH Remove/Install Extended-Activity-Module (EAM)

Remove/Install Extended-Activity-Module (EAM)







Remove/Install
1.1 Read out coding of Extended-Activity-Module (EAM)

NOTE: Only when replacing the EAM and if it can still be read out using STAR DIAGNOSIS.

2 Remove cover under the instrument panel (left)

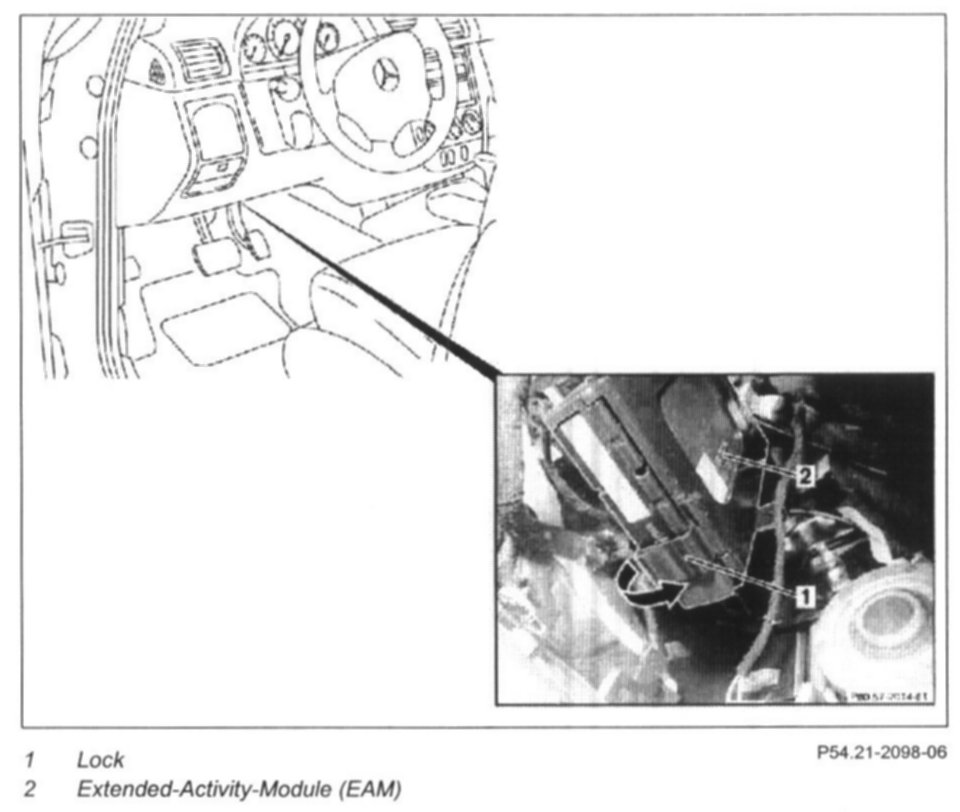

3 Loosen the lock (1) which secures the EAM in the bracket
4 Remove the Extended-Activity-Module (EAM) (2) downwards out of the bracket
5 Disconnect connectors
6 Remove drive authorization module
7 Install in the reverse order
8.1 Code the EAM

NOTE: Only when installing a new EAM.

9 Turn ignition key into position 1 and wait for 40 seconds before first starting the engine.
