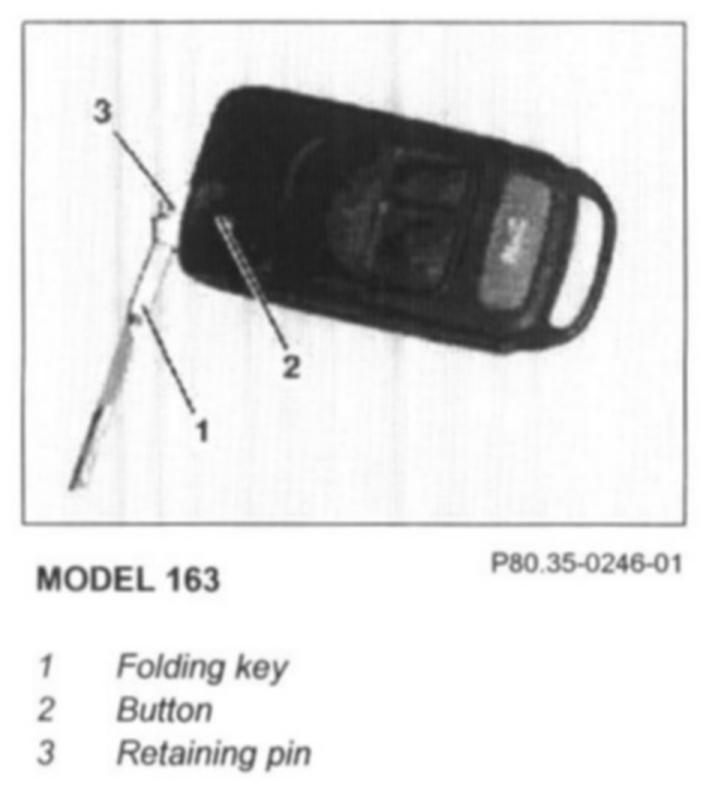

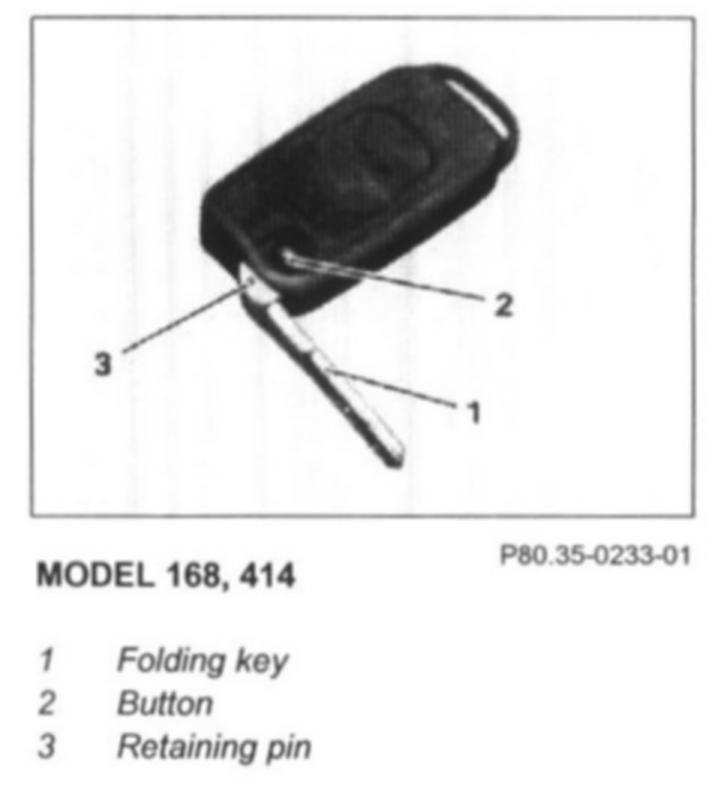

AR80.35-P-4220GC Remove/Install Folding Key on Remote Control Key
Removing And Installing Folding Key On Remote Control KeyRemoving, installing 1
Press button (2)
2
Fold folding key (1) out
approx. 90° 3
Drive retaining pin (3) out with suitable punch
4
Remove folding key (1)
5
Install in the reverse order
