Sorted By Name
NOTE: Components/Connectors may not be listed in alphabetic order by the actual component/connector name.
For Example: The VSS (Vehicle Speed Sensor) for the right rear is listed as "Right Rear Axle VSS Sensor" and will therefore be sorted by the letter "R".

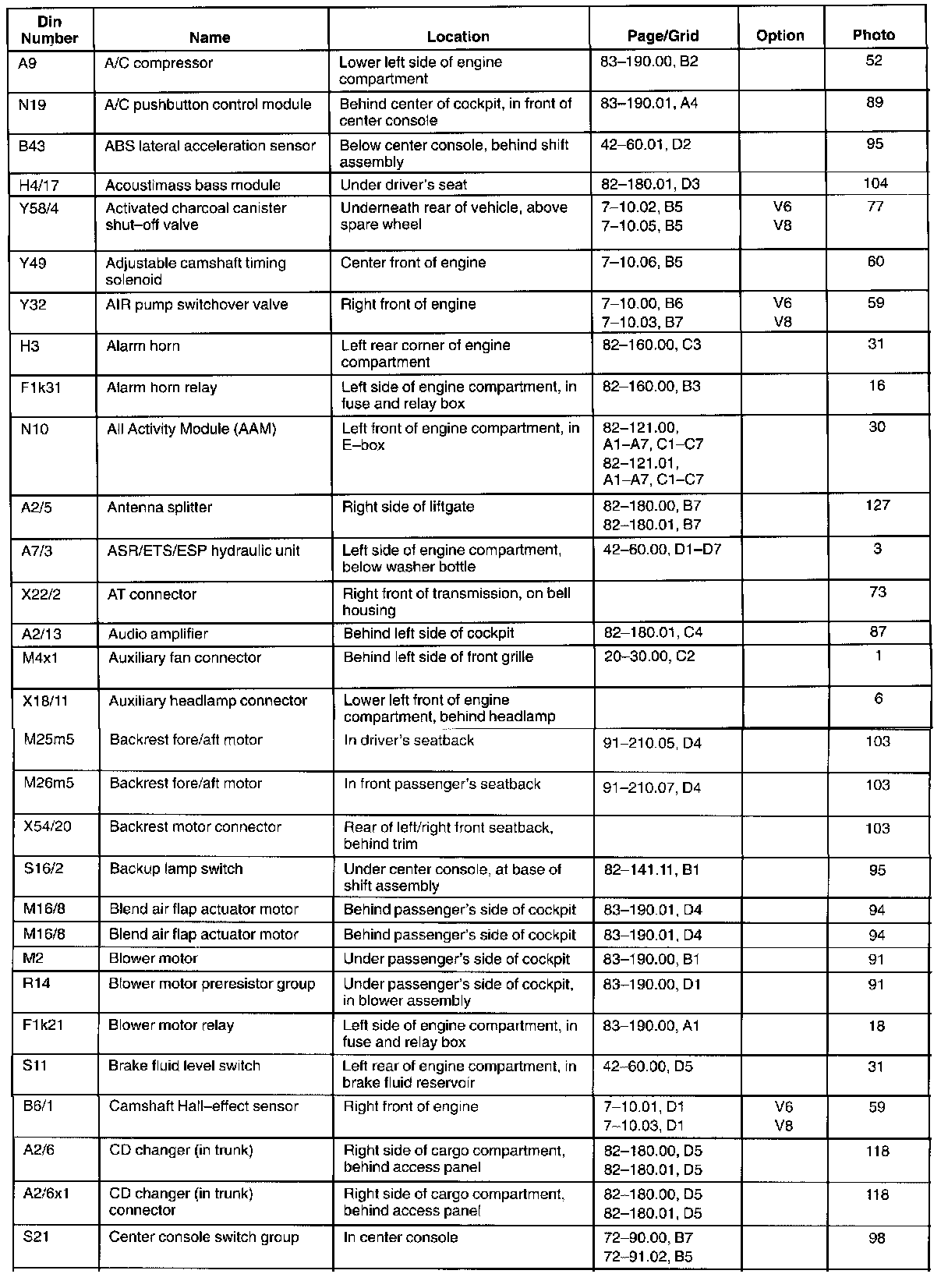

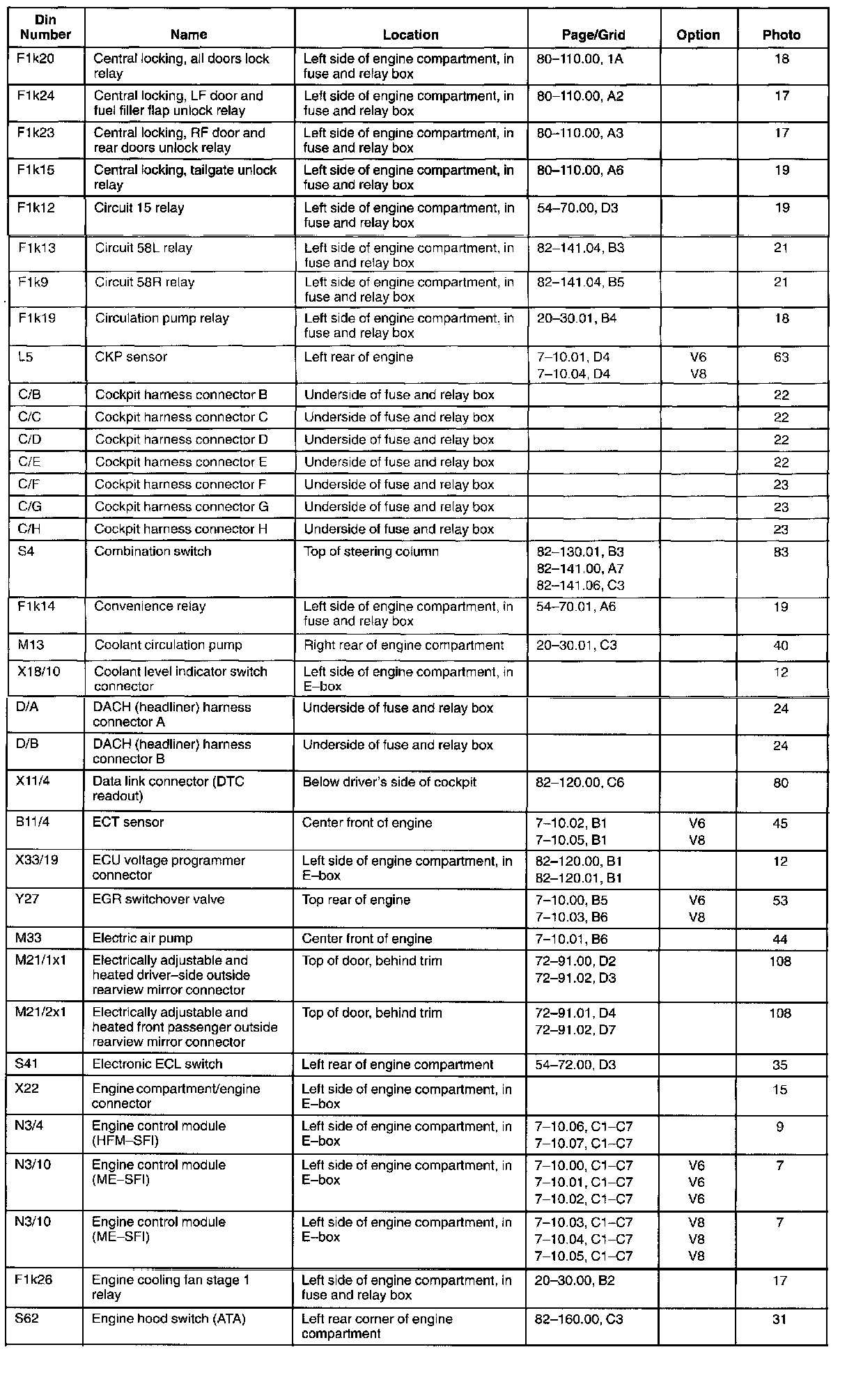

A - C:
C (cont'd) - E:

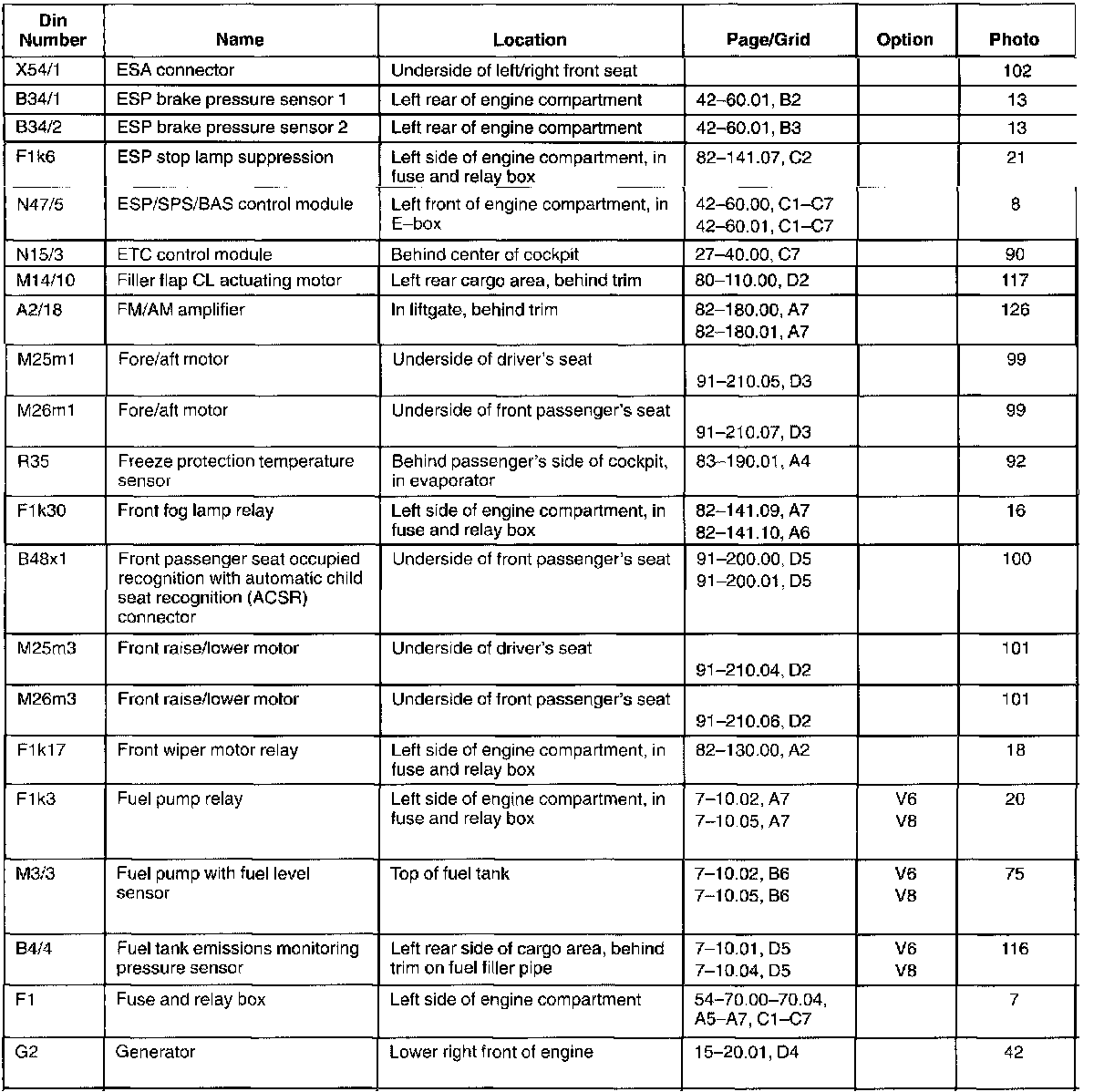

E (cont'd) - G:

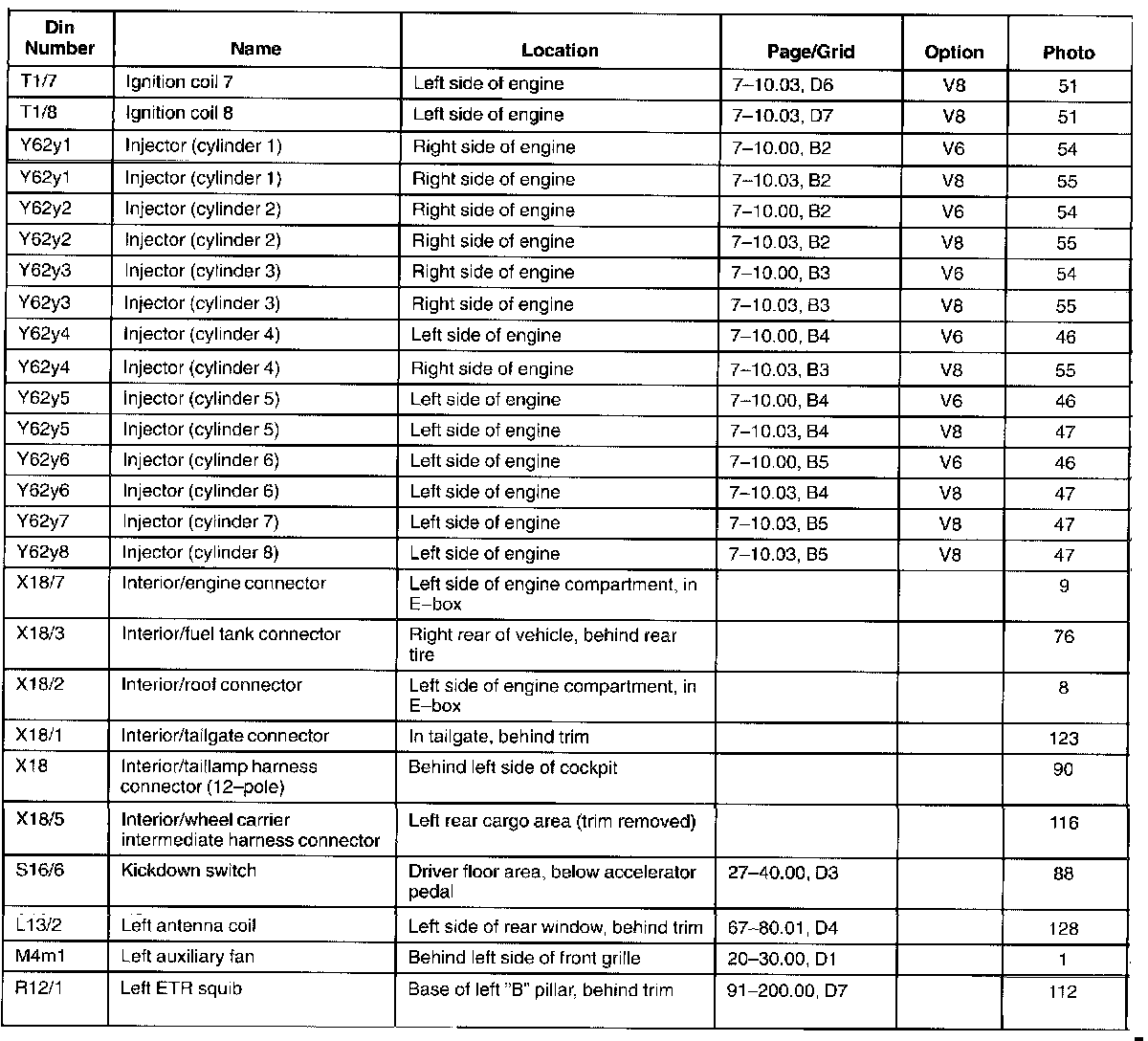

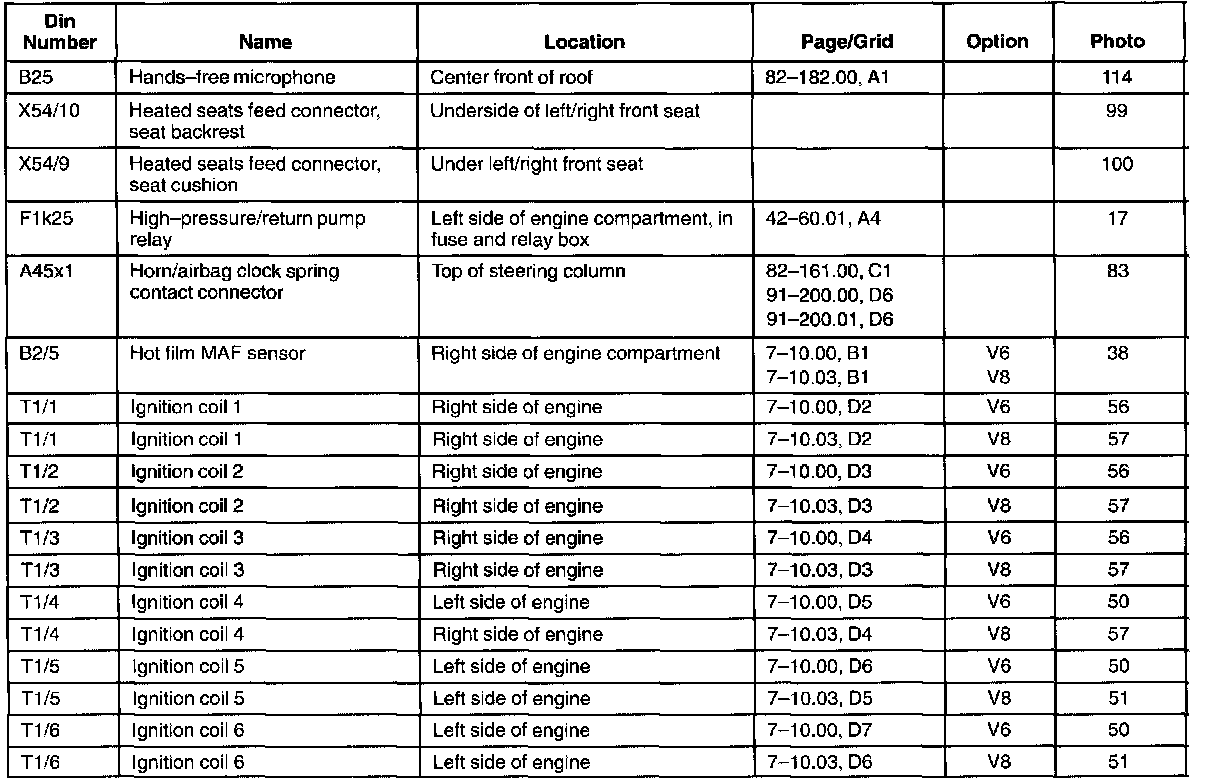

H - I:
I (cont'd) - L:

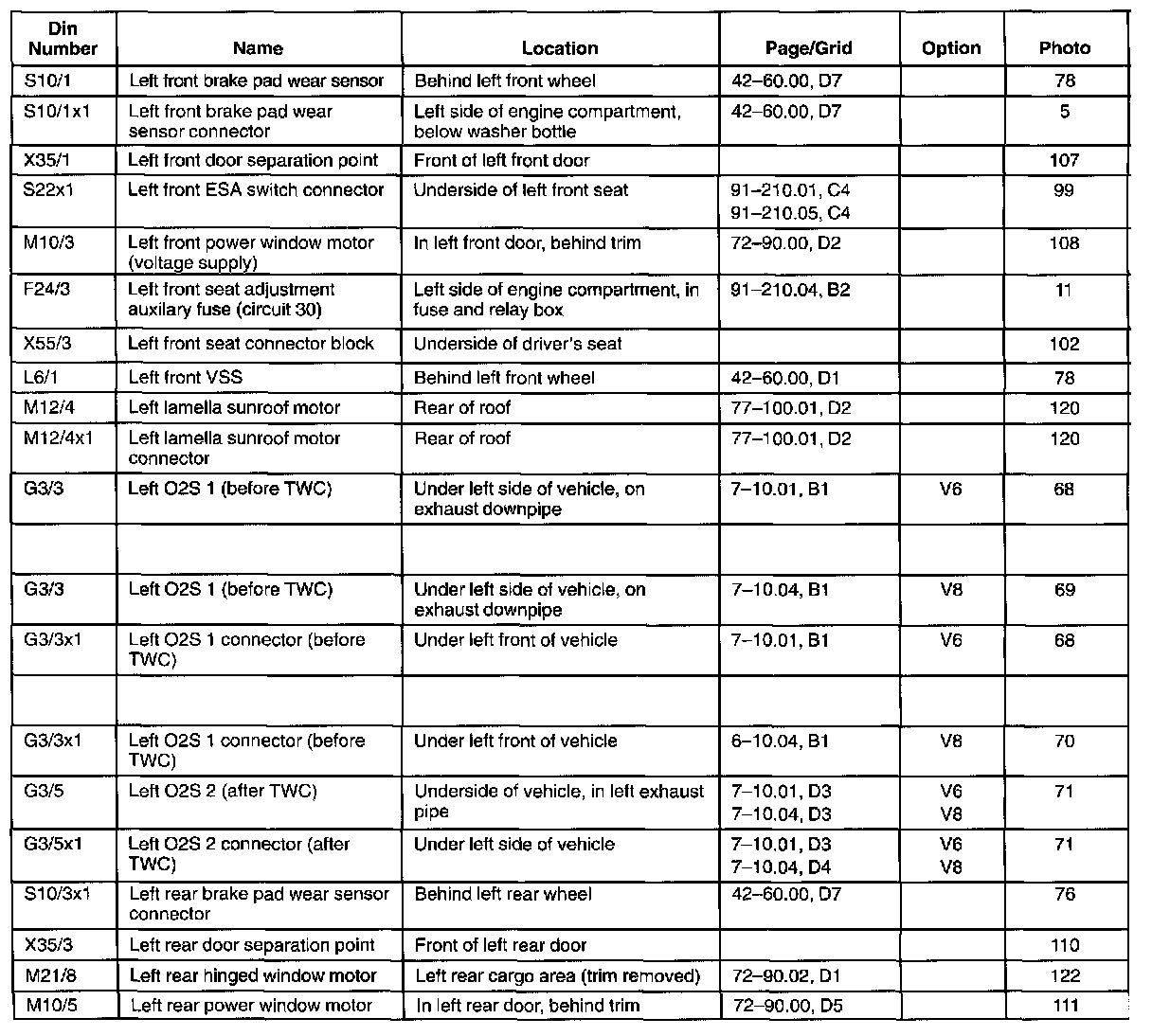

L (cont'd):

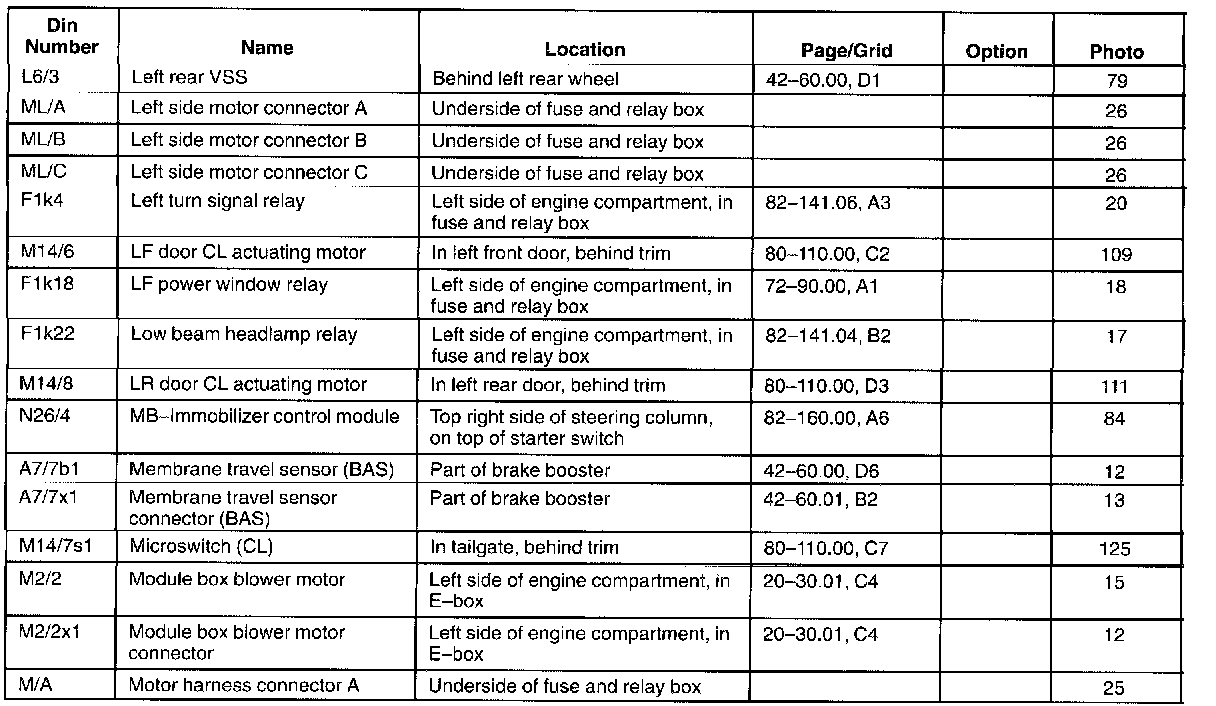

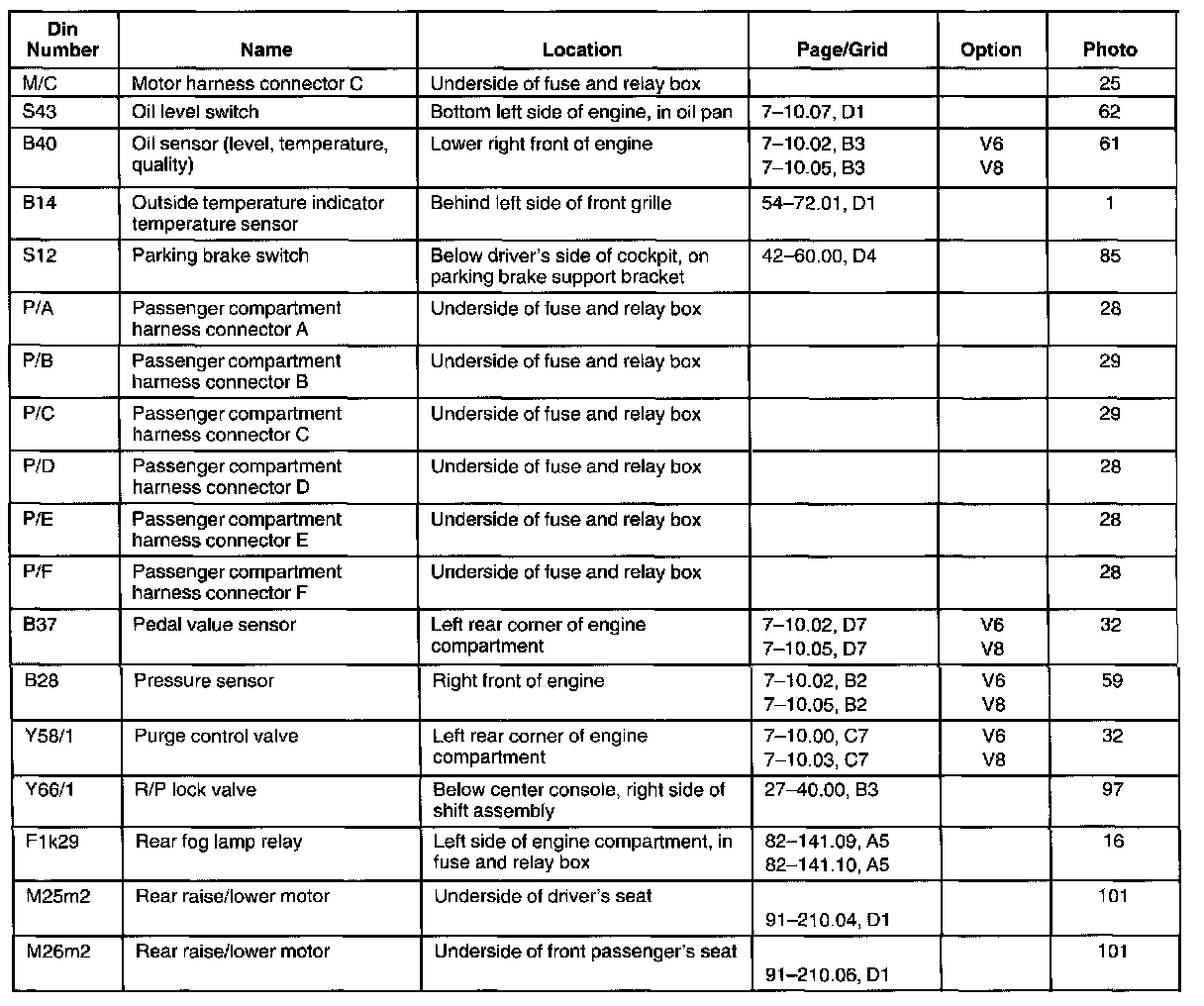

L (cont'd) - M:
M (cont'd) - R:

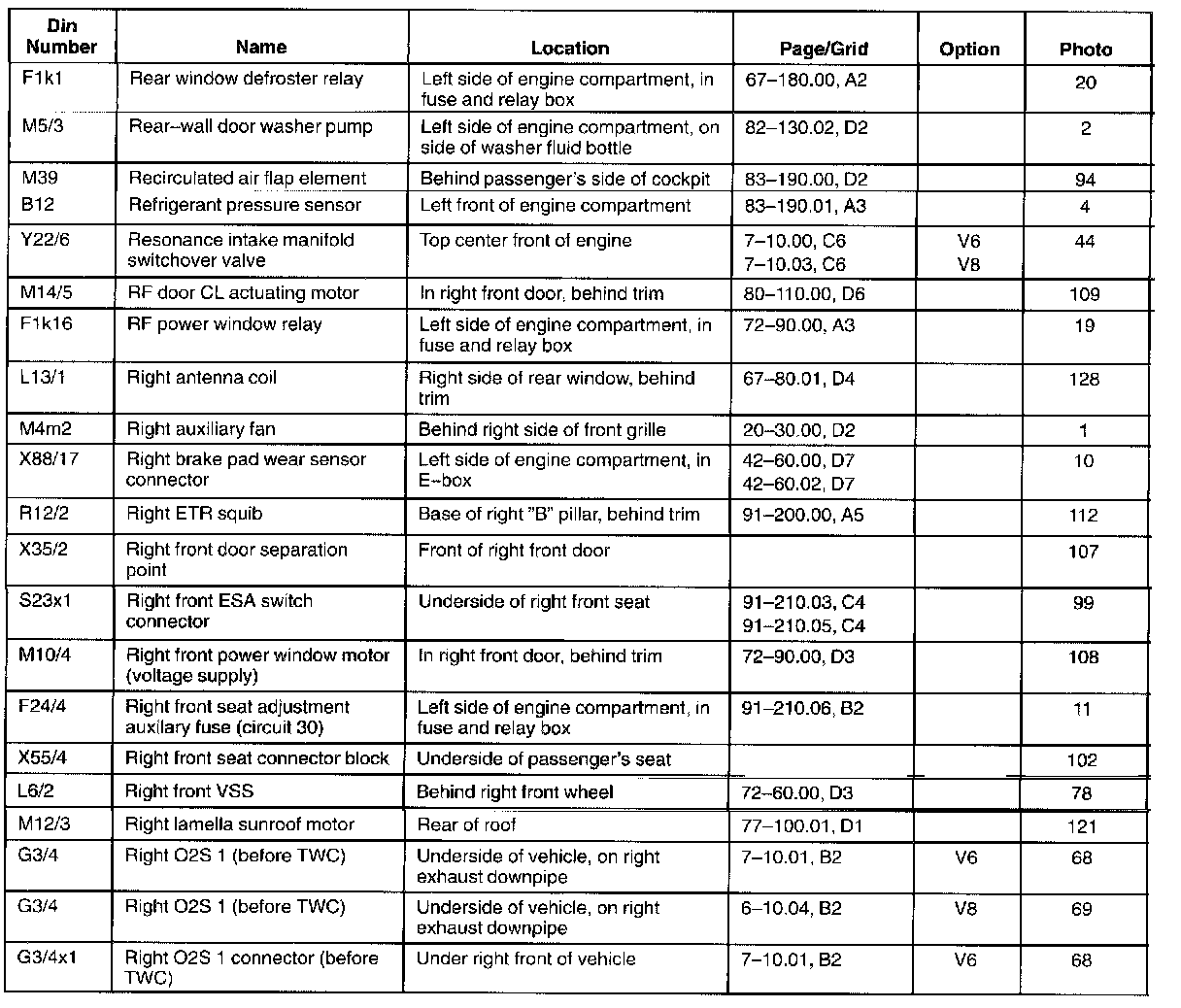

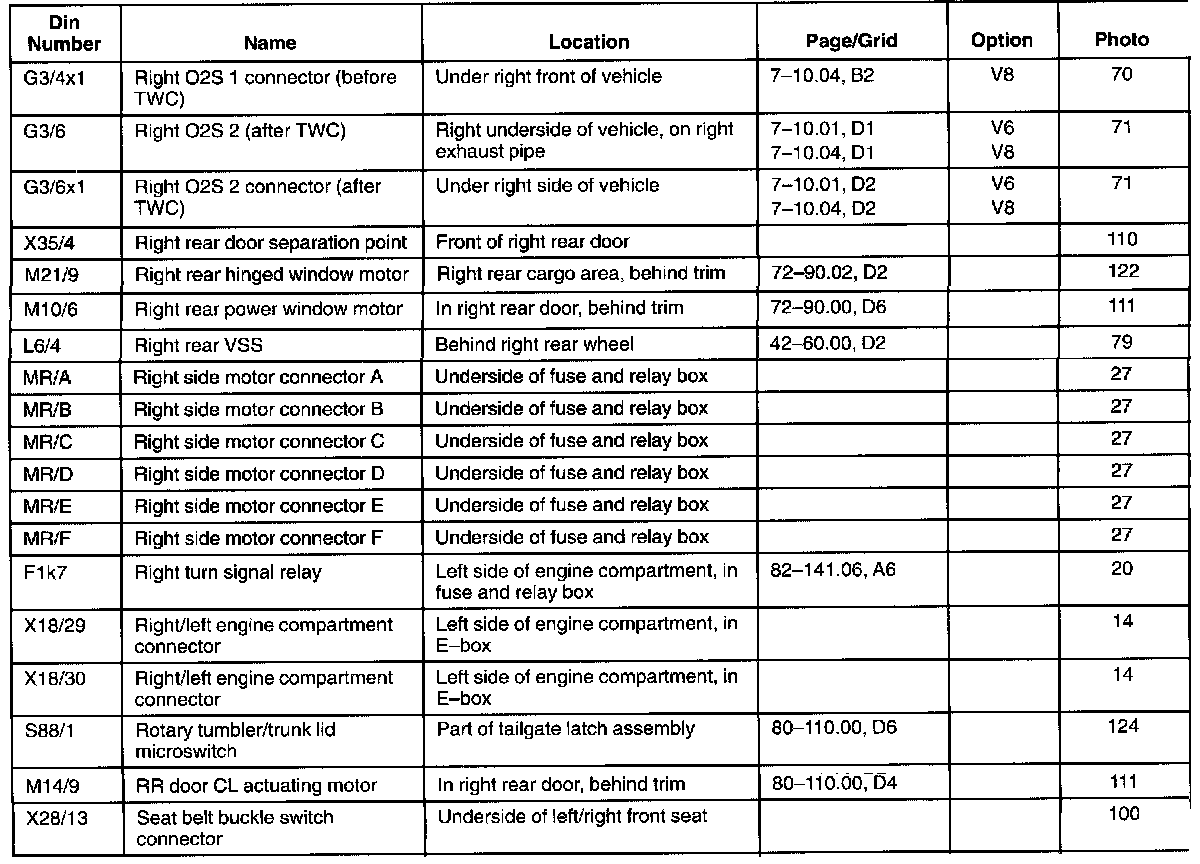

R (cont'd):

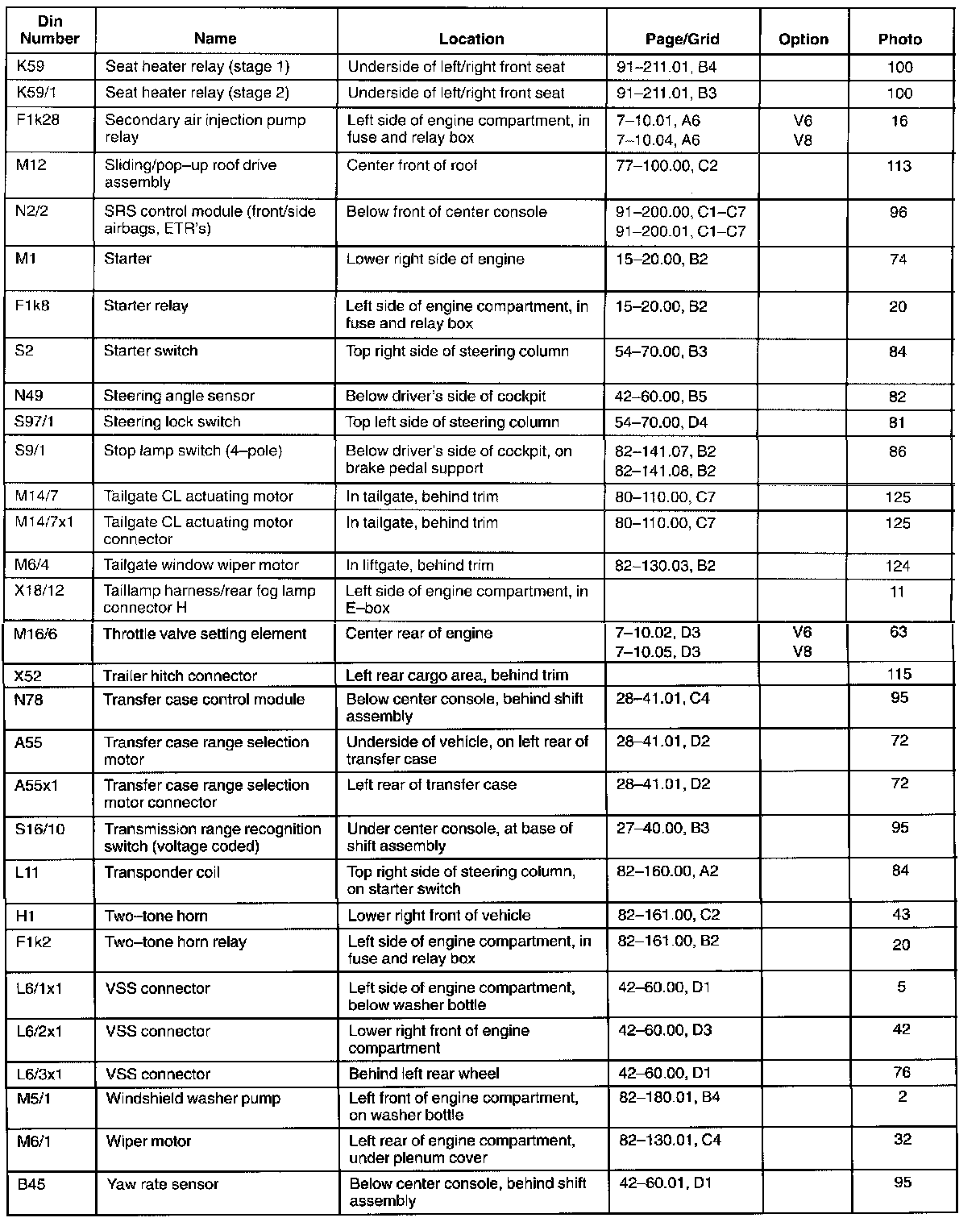

R (cont'd) - S:
S (cont'd) - Z:
