System Diagram





Connector 1:





Connector 2:





Connector 3:





Connector 4:





Connector 5:

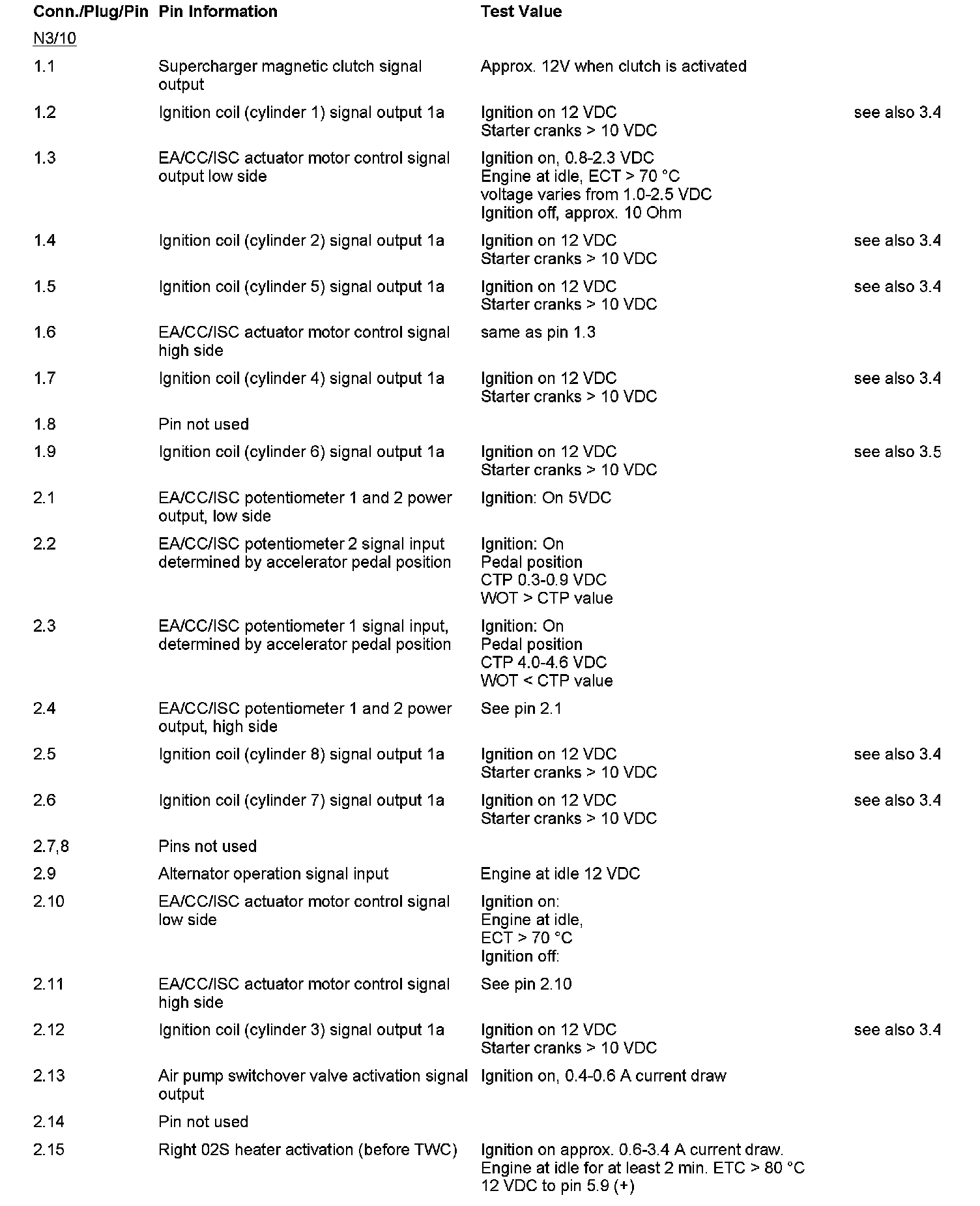

Pinouts Part 1:

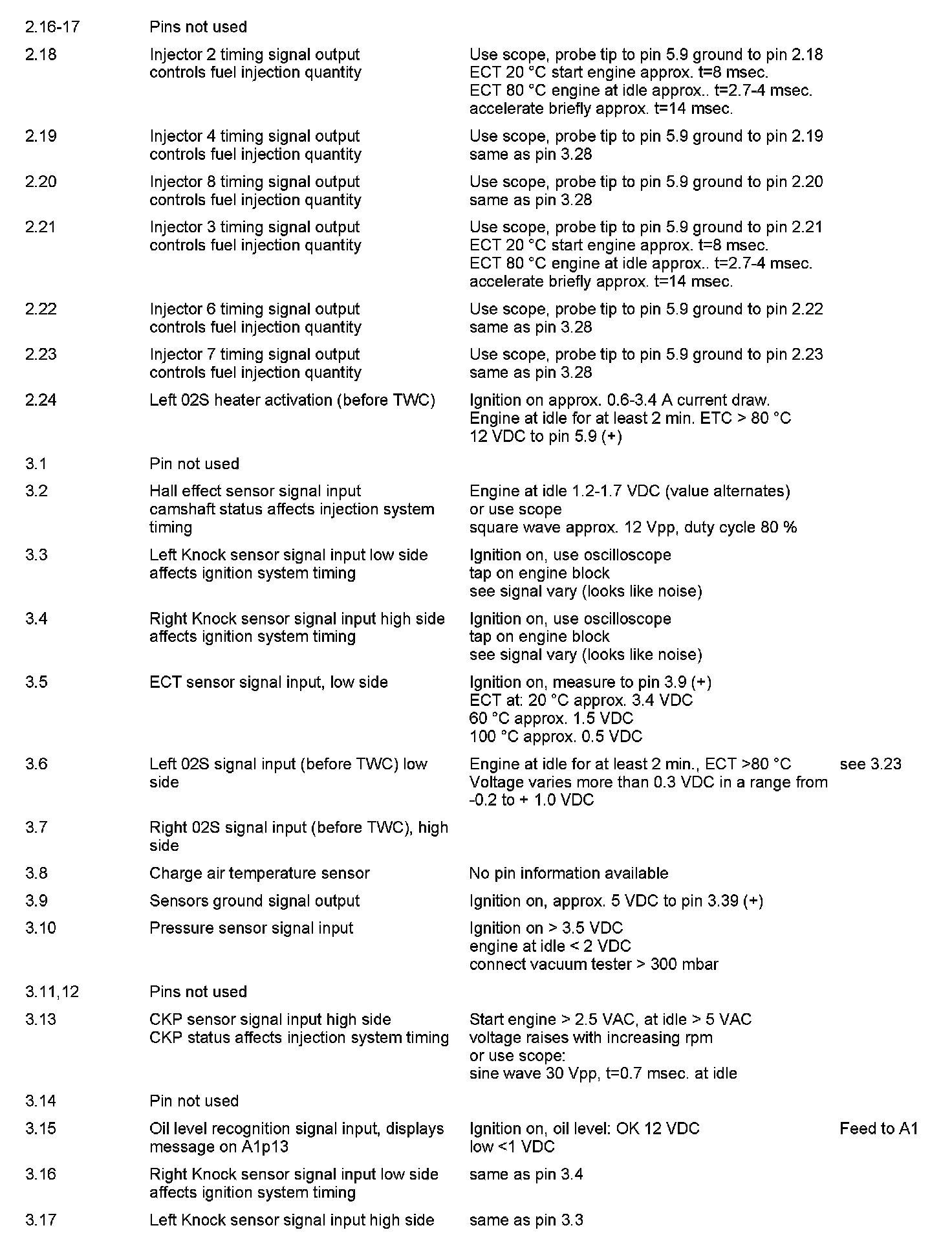

Pinouts Part 2:

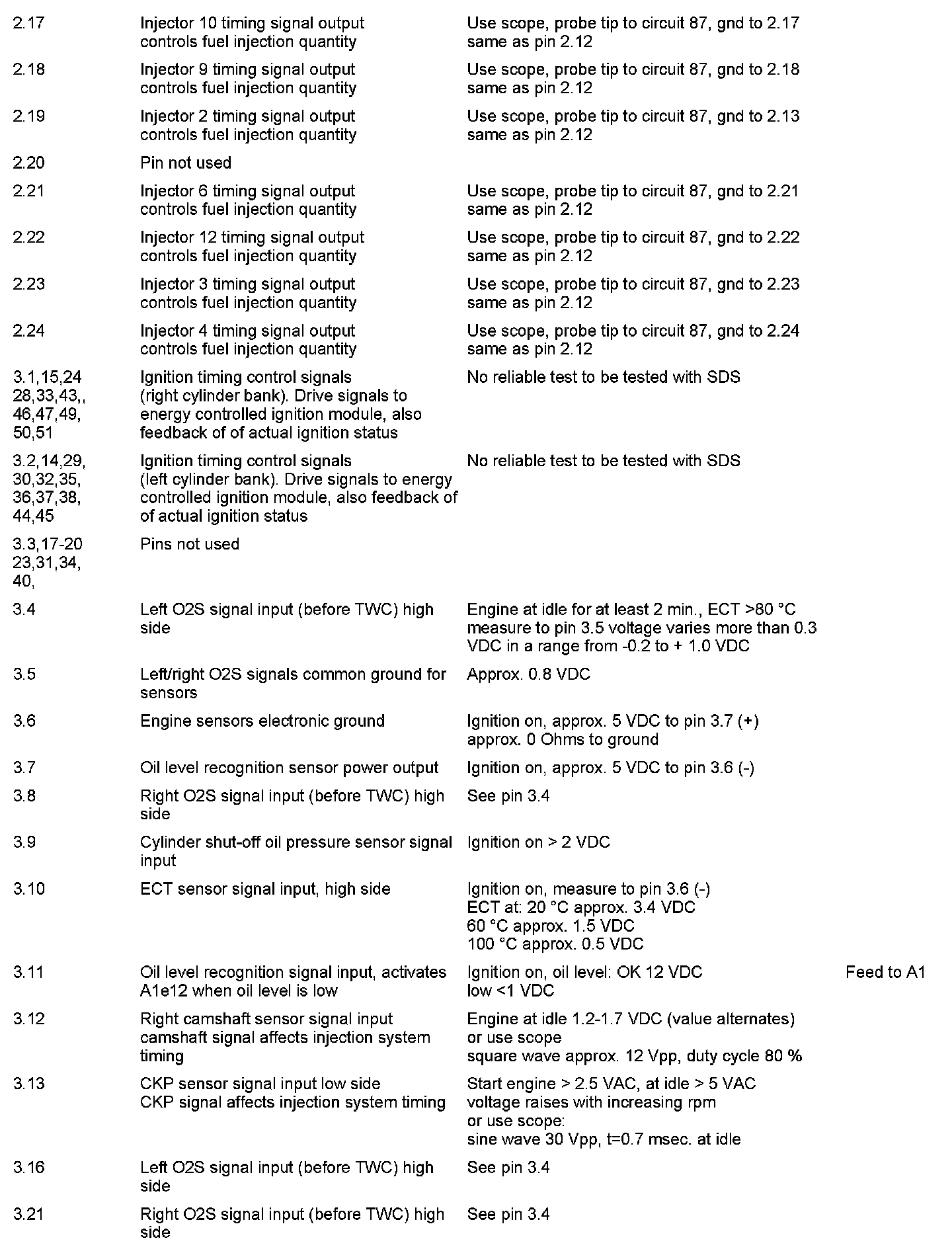

Pinouts Part 3:

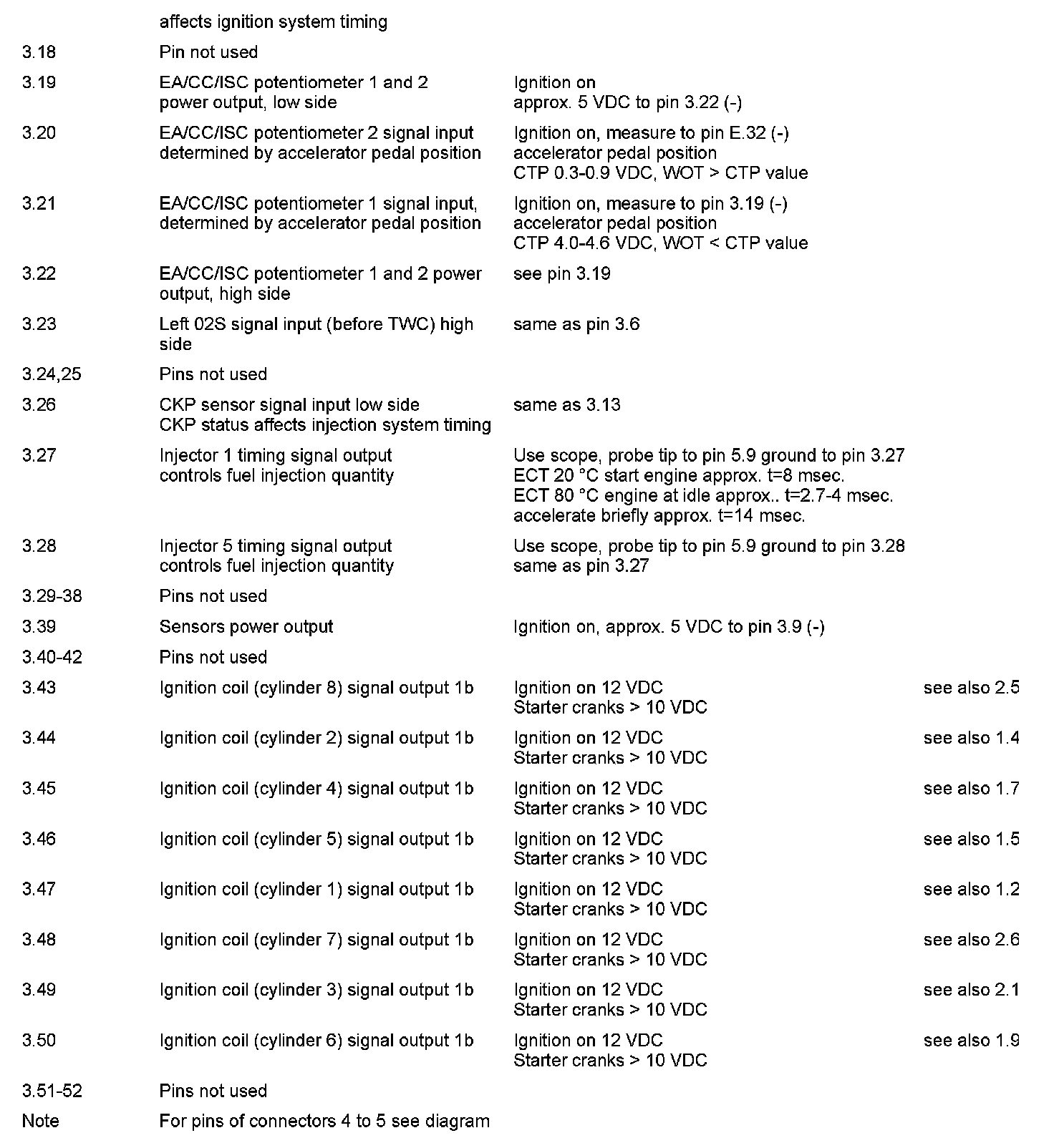

Pinouts Part 4:

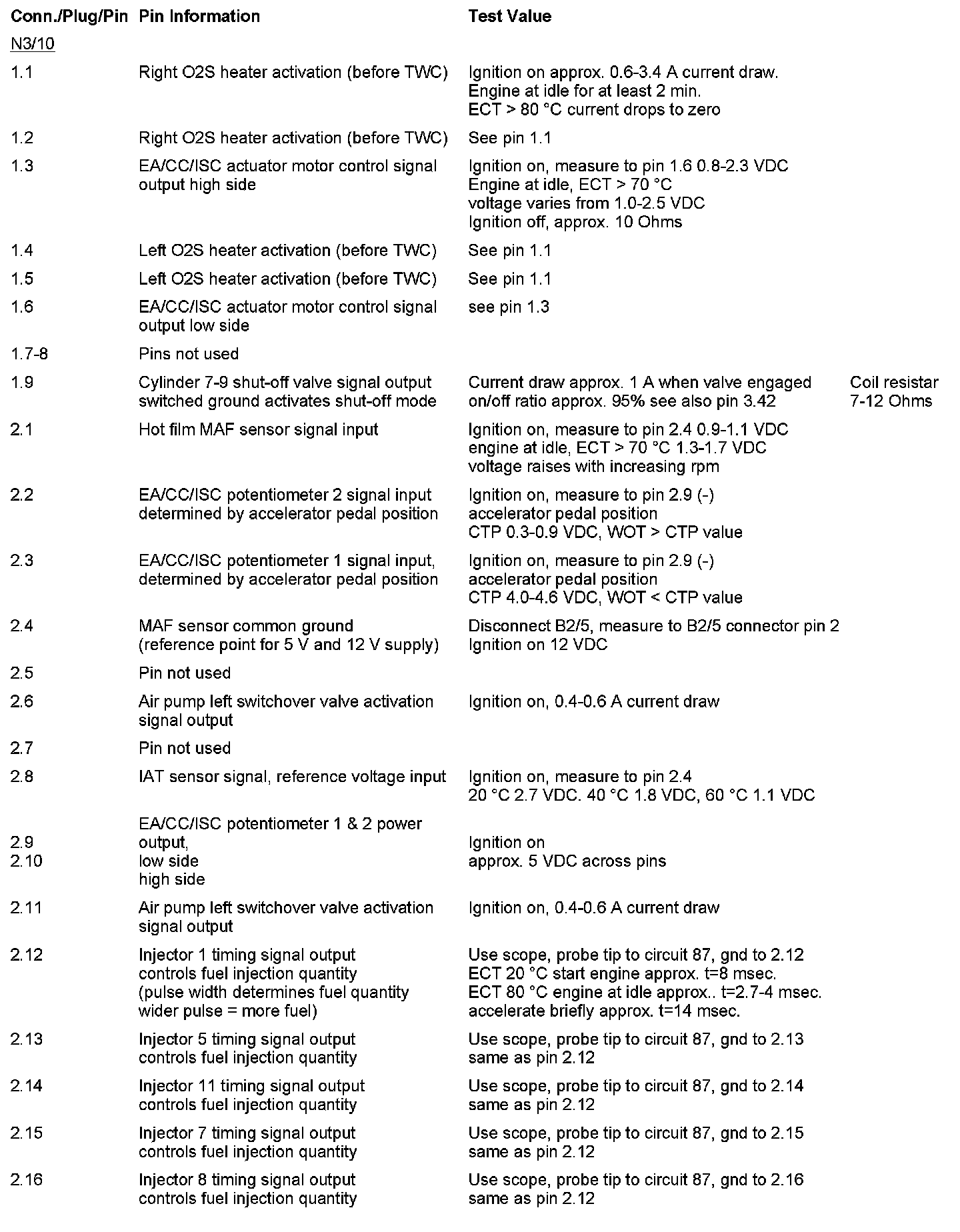

Pinout Part 5:

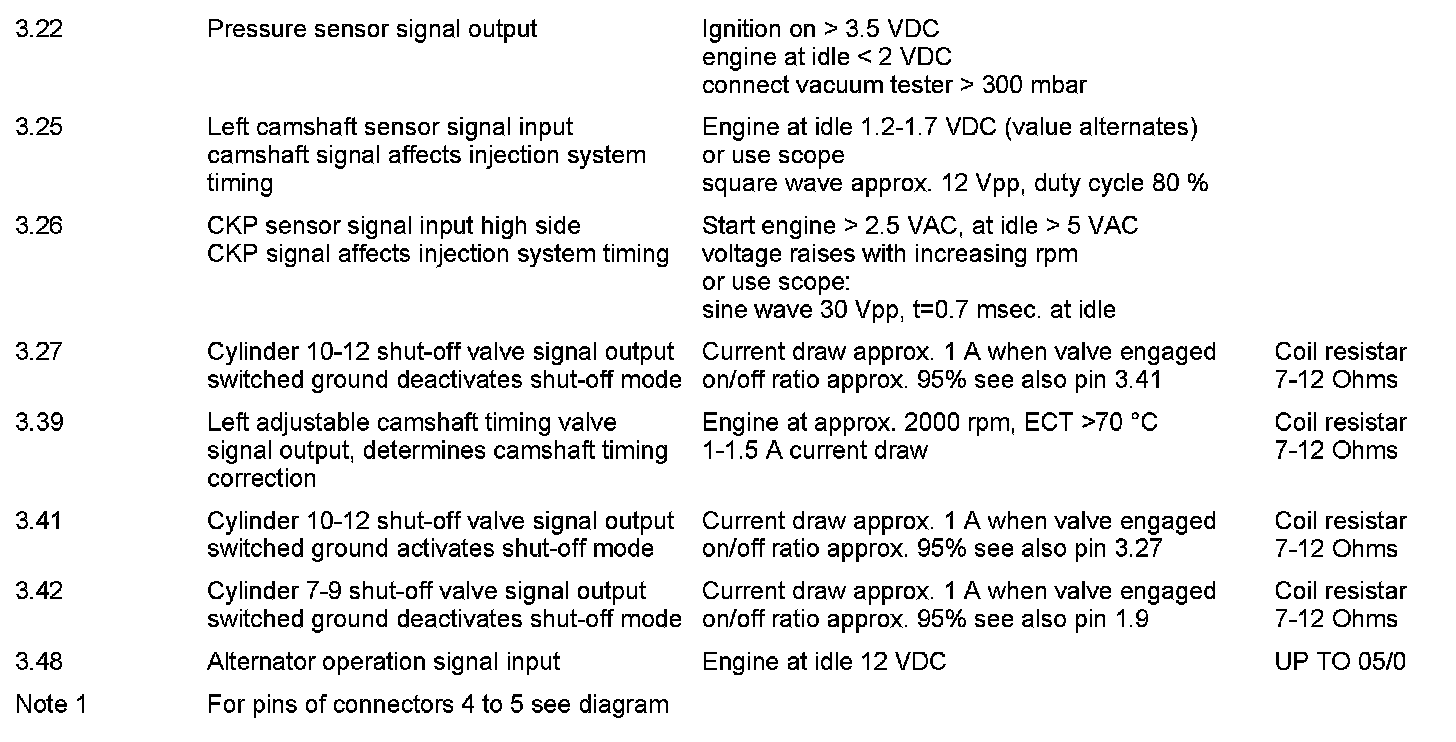

Pinouts Part 6:
