Solar Sensor: Service and Repair

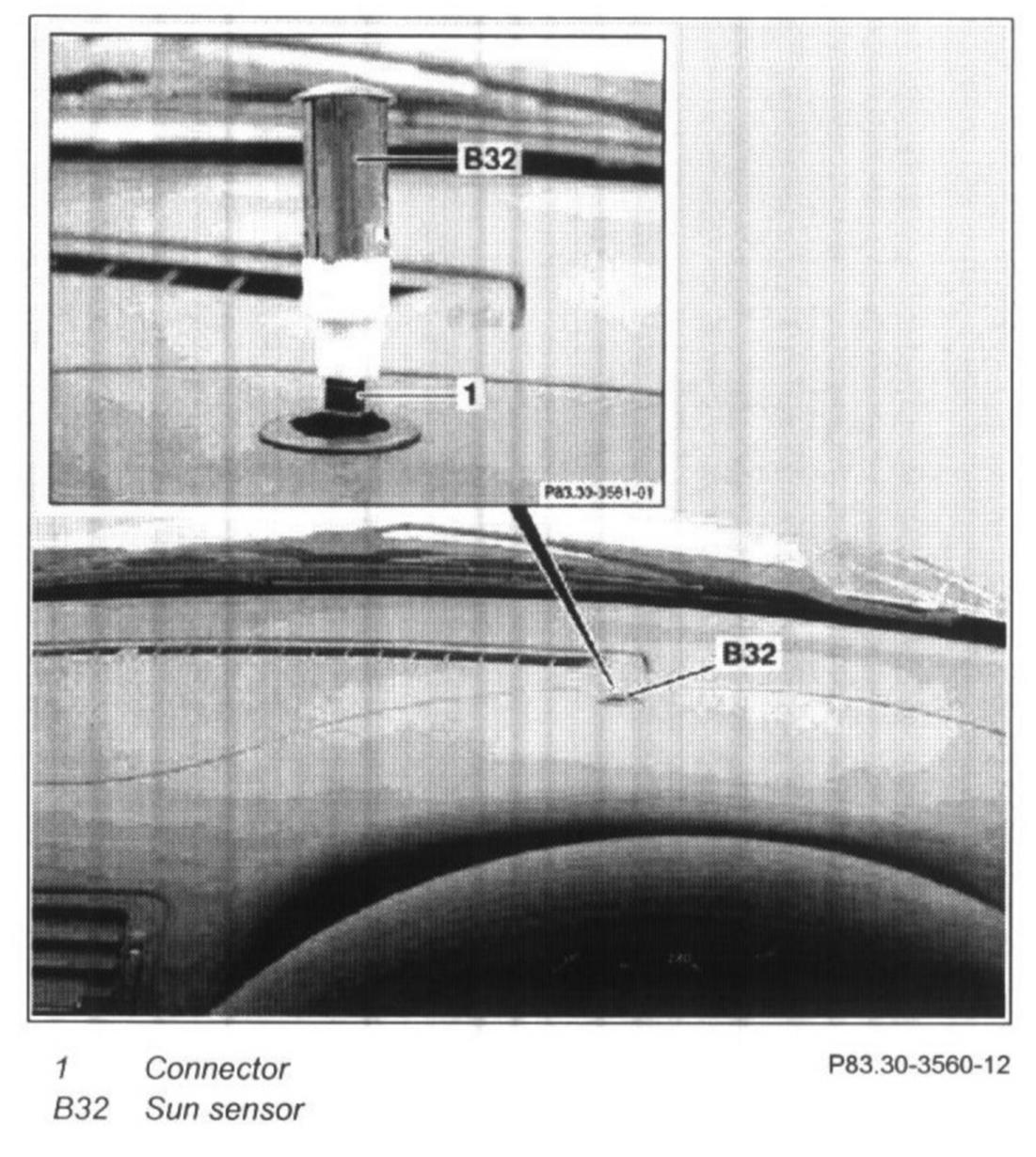

Remove And Install Sun Sensor 1
Pull sun sensor (B32) upwards out of the instrument panel
NOTE: Installation: Do not damage sun sensor and instrument panel.
2
Disconnect plug (1) from sun sensor (B32)
3
Install in the reverse order.
