Computers and Control Systems: Adjustments

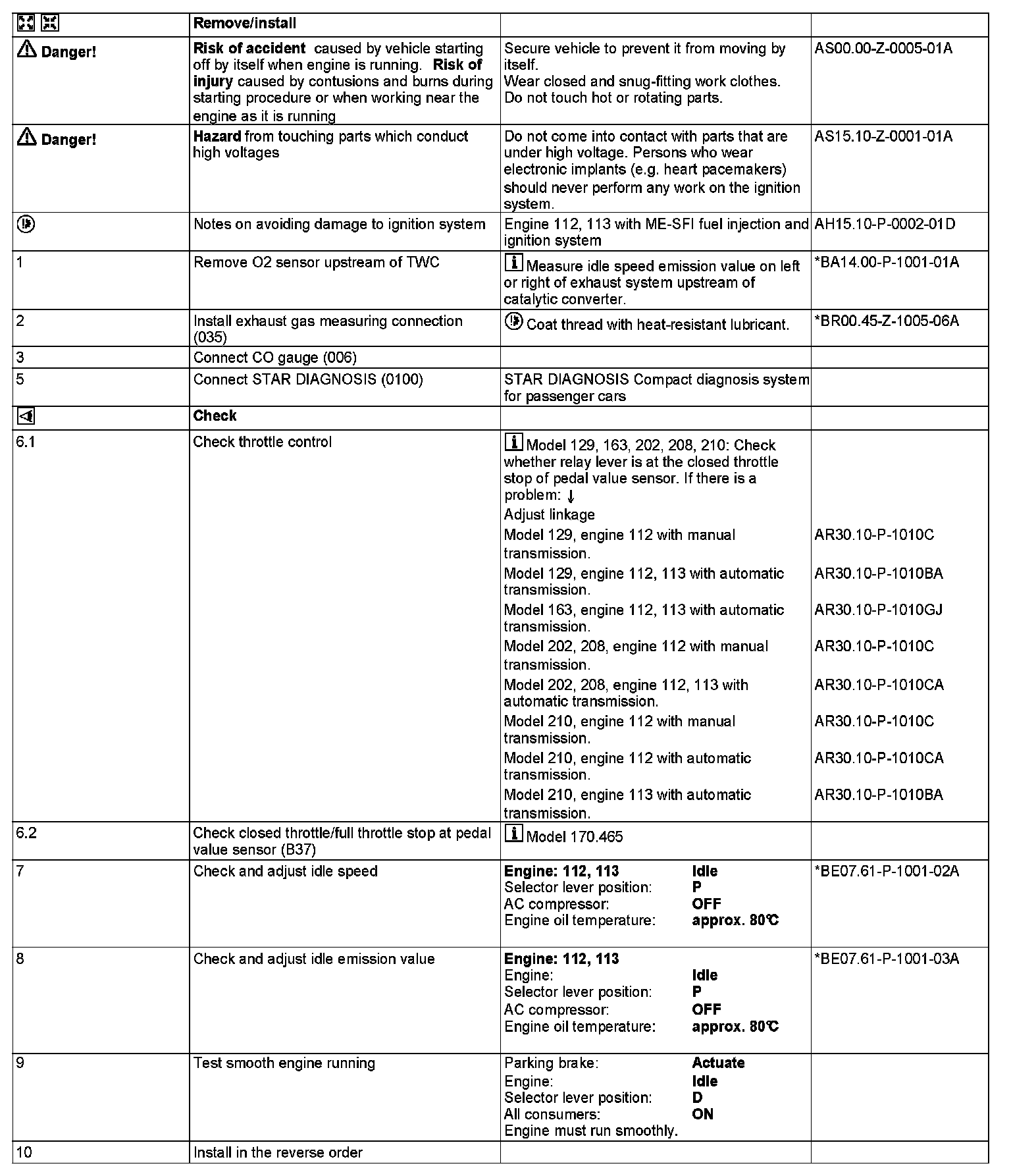

AP07.61-P-0750C Test/adjust Idle Speed, Emission Value/lambda Control (ME-SFI)
- ENGINES 112.923 /943, 113.961 in MODEL 129
- with CODE (918) Open-loop emission control system Vehicles without catalytic converter
- ENGINES 112.942 /970, 113.942 /965 /981 in MODEL 163
- with CODE (918) Open-loop emission control system Vehicles without catalytic converter
- ENGINES 112.947 in MODEL 170
- with CODE (918) Open-loop emission control system Vehicles without catalytic converter
- ENGINES 112.910 /915 /920, 113.944 in MODEL 202
- with CODE (918) Open-loop emission control system Vehicles without catalytic converter
- ENGINES 112.912 /946 /961 in MODEL 203
- with CODE (918) Open-loop emission control system Vehicles without catalytic converter
- ENGINES 112.940, 113.943 /984 in MODEL 208
- with CODE (918) Open-loop emission control system Vehicles without catalytic converter
- ENGINES 112.911 /914 /921 /941, 113.940 /980 in MODEL 210
- with CODE (918) Open-loop emission control system Vehicles without catalytic converter

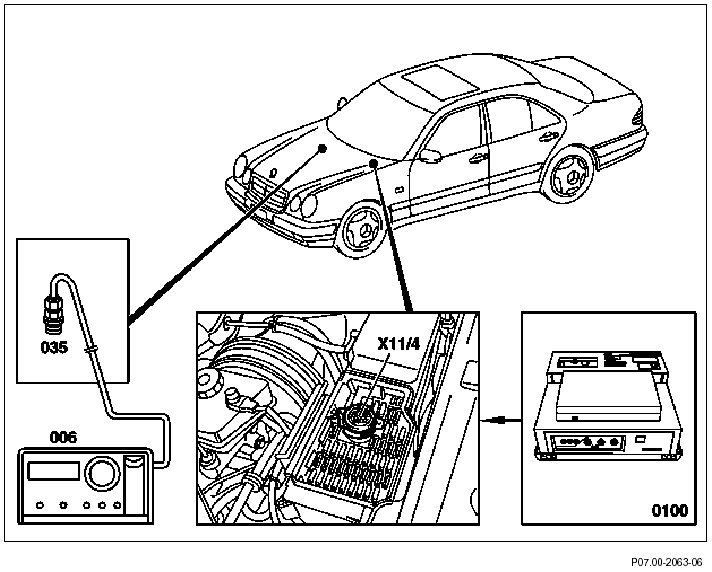

Connection diagram for testing units
Shows model 210







006 CO analyzer
035 Exhaust test connection
0100 STAR DIAGNOSIS

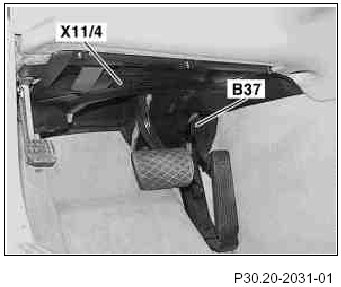

X11/4 Test connector, 38-pin (pulse signal)

Model 129, 163, 202, 208, 210

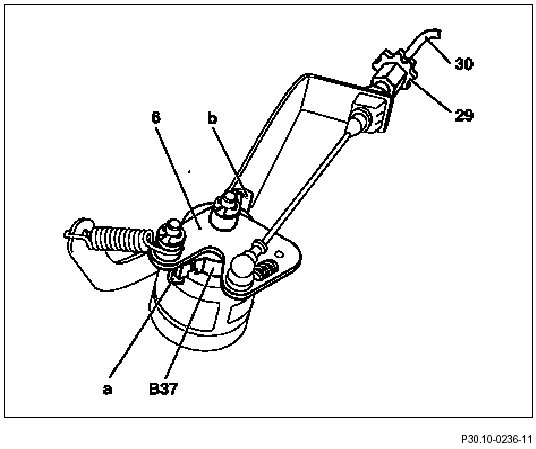

6 Throttle control relay lever
B37 Pedal value sensor
a Closed throttle stop
b Full throttle stop

Model 170







B37 Pedal value sensor























103 589 00 91 00, Test connection
