Mass Airflow Meter Harness/Connector Warning
Component Identification:
NOTE: If a cable break or similar damage exits in the area of the plug connection of the mass air flow sensor (B2) or temperature sensor (B11), it is possible to repair the wiring harness in order to avoid costly replacement of a wiring harness.

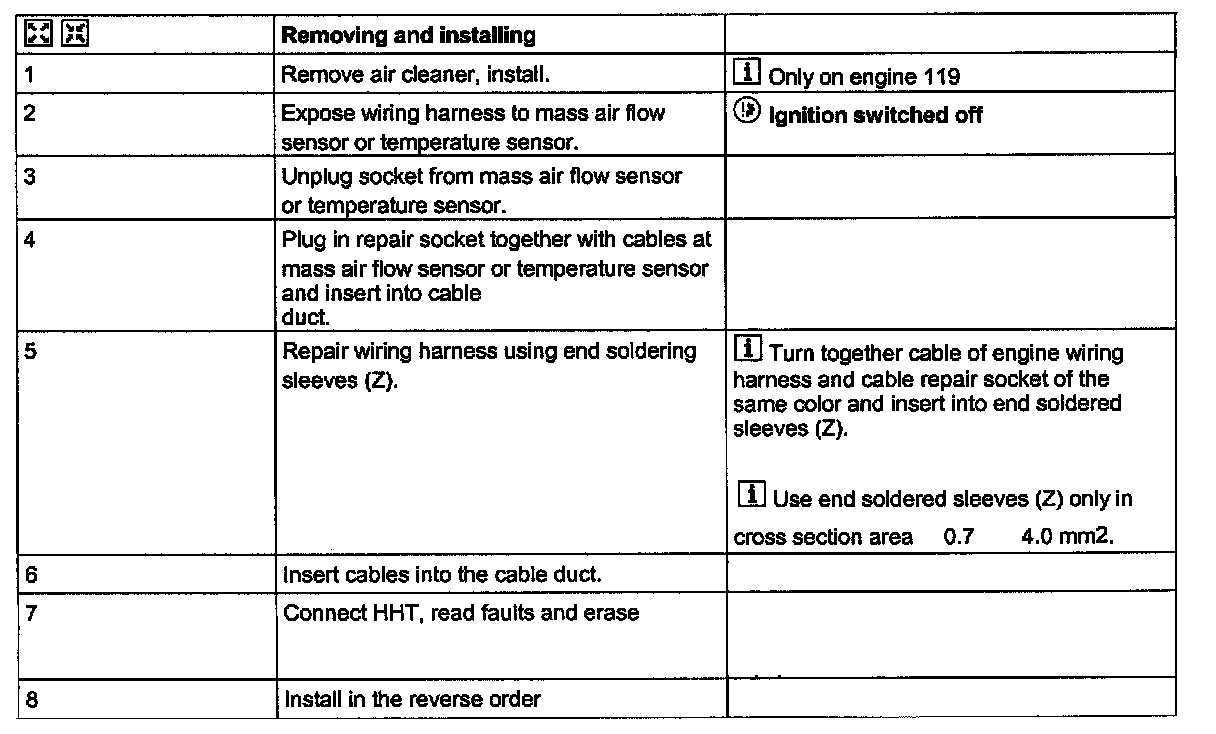

Removing, Installing, Steps 1 - 8:
