Crankshaft Position Sensor: Service and Repair

Remove/Install Crankshaft Position Sensor

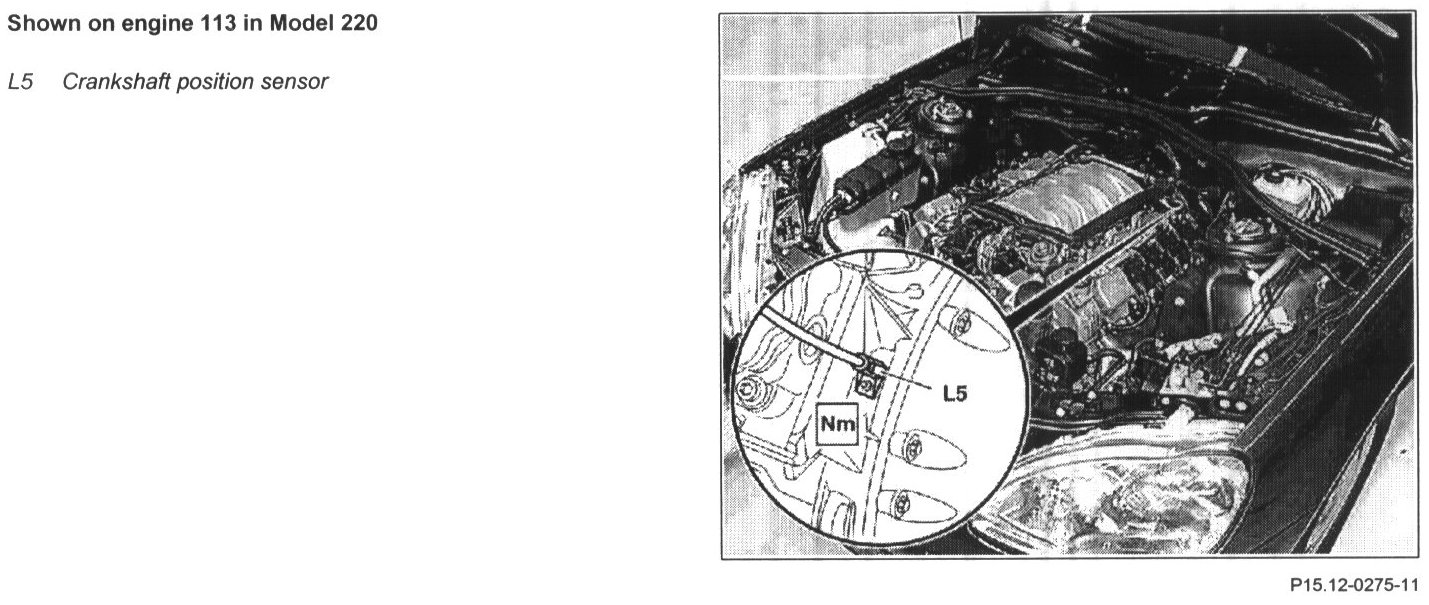

Shown On Engine 113 In Model 220:

Work Instructions

NOTE: Remove Air cleaner (engine side).

Crankshaft position sensor to engine block - 8 N.m

NOTE: If the crankshaft position sensor (L5) was replaced, a re-initialization must be carried out with STAR DIAGNOSIS in the menu item control module adaptations.
