Fuel Level Sensor: Service and Repair



Removing and Installing Fuel Level Sensor







Removing, installing


DANGER: Risk of explosion from ignition, risk of poisoning from inhaling and swallowing fuel as well as risk of injury from skin and eye contact with fuel.

- No fire, sparks, naked flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel.


1 Remove fuel pump

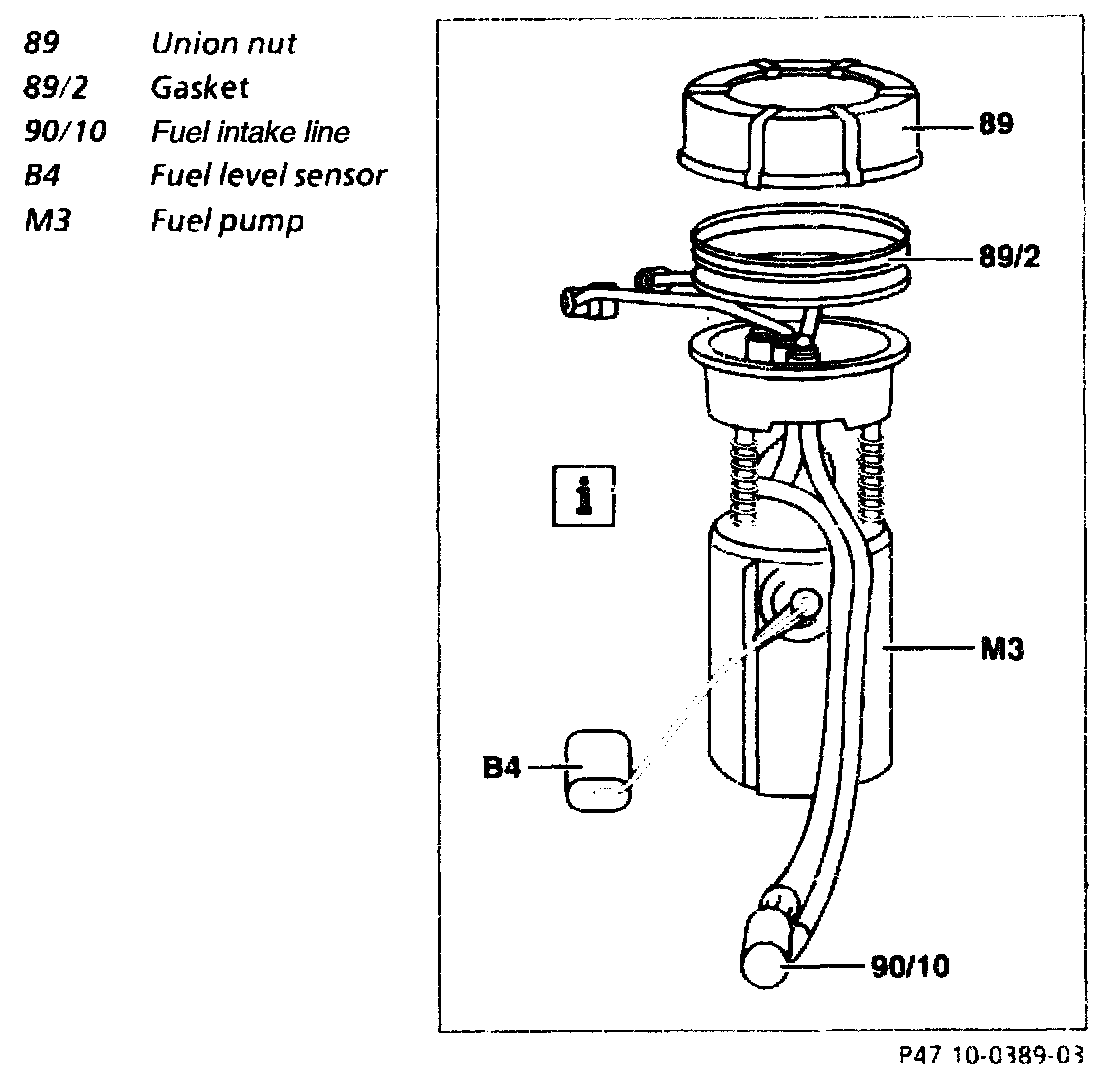

NOTE: Fuel level gauge sensor (B4) and fuel pump (M3) form a single unit and can therefore not be removed separately.


2 Install in the reverse order
