O2 Sensors, Location




O2 Sensors, Position

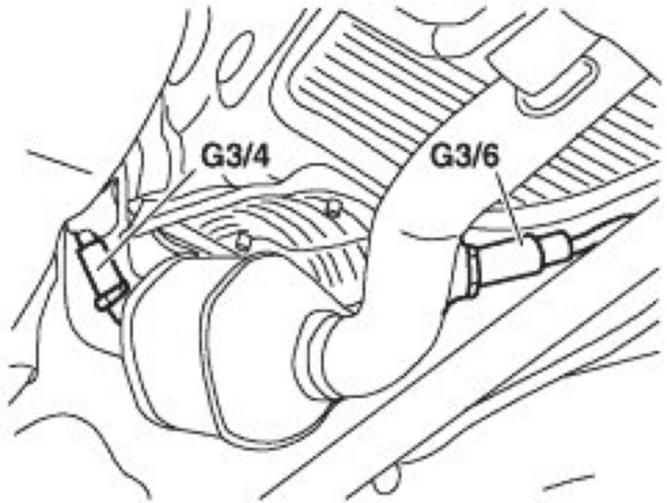

Engine 112, 113
G3/4 O2 sensor on right, upstream of TWC

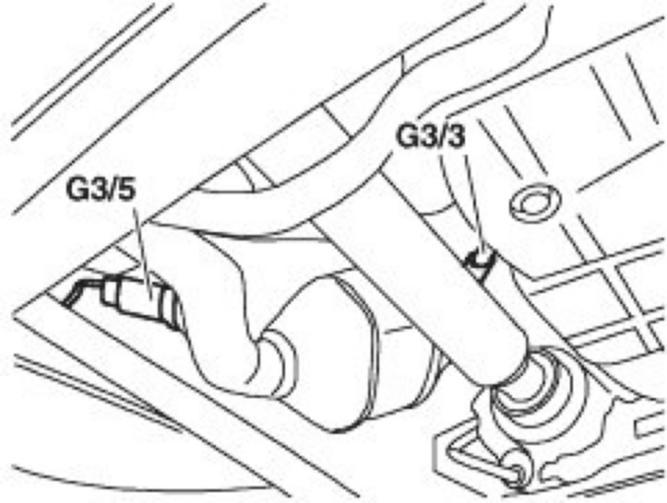

Engine 112, 113
G3/3 O2 sensor on left, upstream of TWC

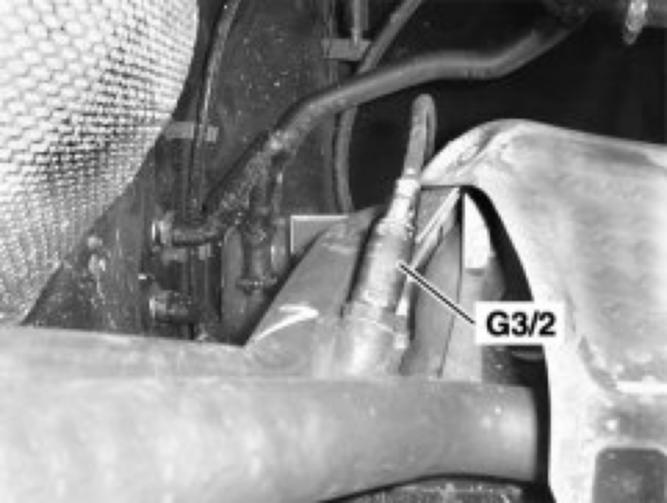

Engine 111
G3/2 O2 sensor upstream of TWC

Located below exhaust manifold
