Accessories - Audio/CD/Phone Inoperative

Date: December 13, 2001

Order No.: T-B-82.95/184

Supersedes:

Group: 54

SUBJECT:
Models 163, Model Year 2002 TeleAid Module

The Model 163, Model Year 2002, vehicles listed below have been identified as having a TeleAid module which results in loss of communication of the D2B ring (Audio, CD, Phone inoperative) and generates an error code 906. The TeleAid units are marked with Q6 and a Hardware date code of 2801.

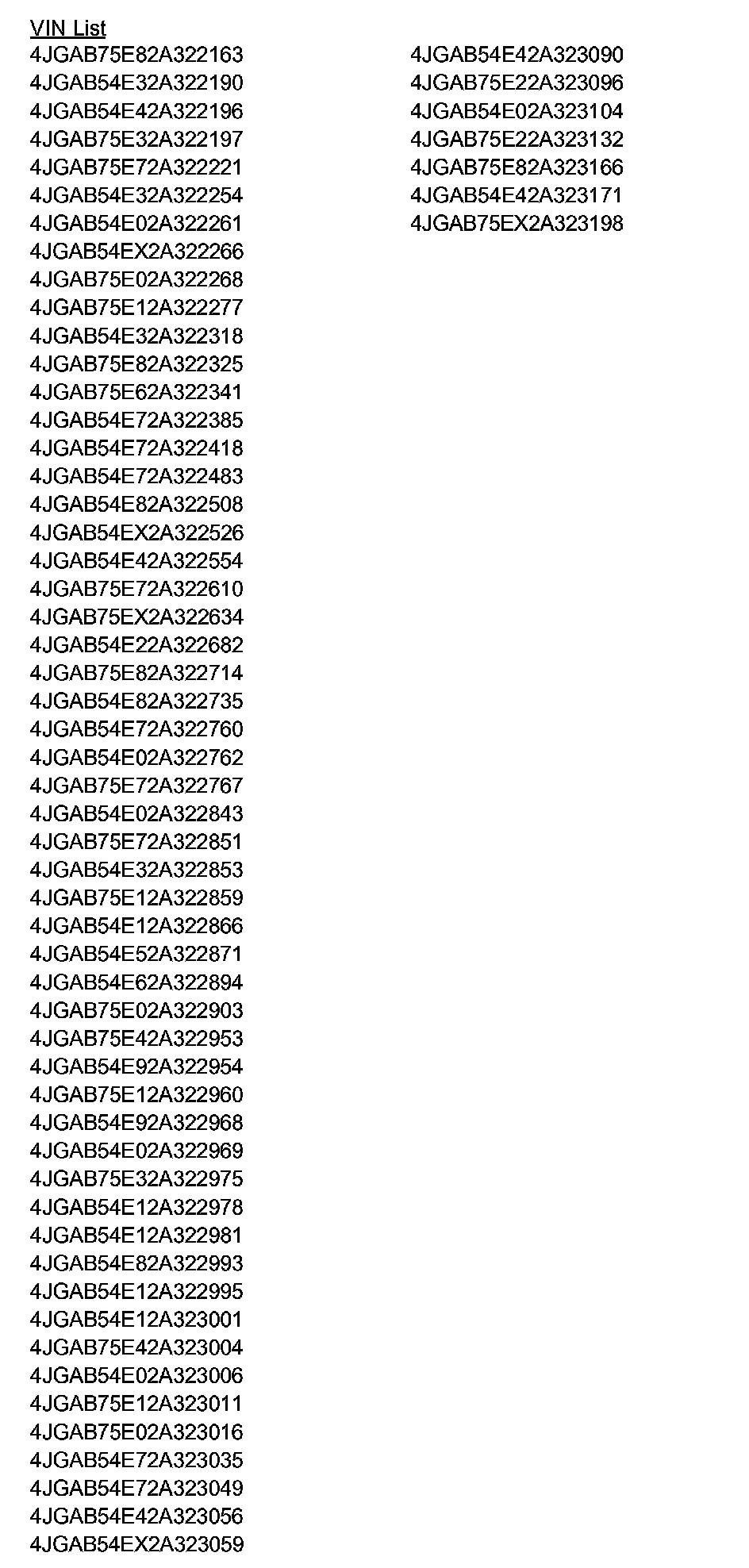

Please check your inventory for vehicles on the attached list and replace the TeleAid control module with a version Q5 unit. Alternatively, if you have already retailed any of these units, please contact the customer to arrange for the replacement of the TeleAid control module. Orders for this part must be placed through Dealer Parts Services using the RPS order form found on Netstar. The order must include the VIN. Dealers without Netstar may fax their orders to 1-888-766-6262.





Parts Information





In Case of Warranty
