GF54.21-P-4106GH Extended Activity Module Position/Task



GF54.21-P-4106GH Extended Activity Module Position/Task

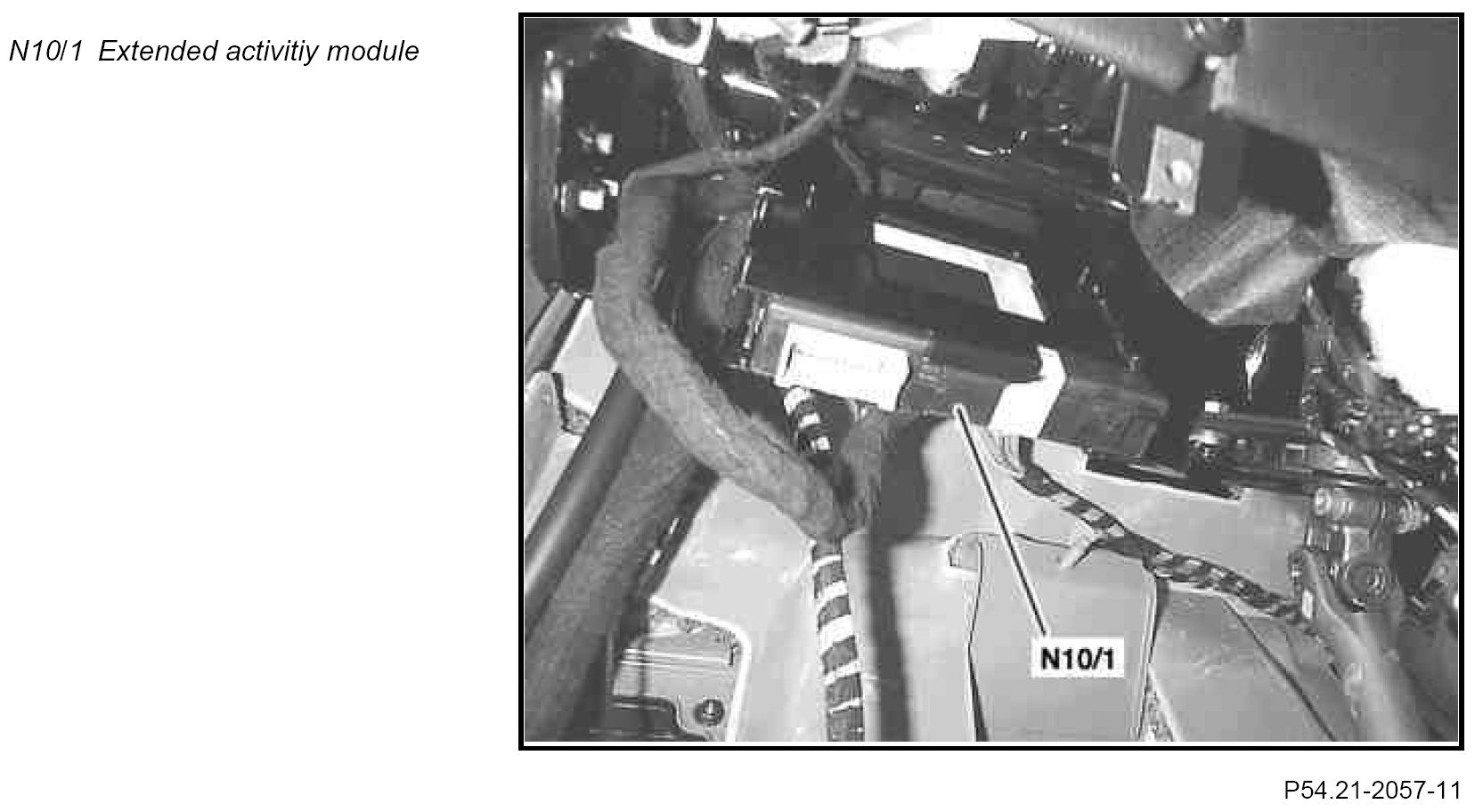

The extended activity module in combination with the new drive authorization system (DAS (N10/ 1- n1)) represents an extension of the All-Activity Module. In addition, the extended activity module acts as a diagnosis gateway for the transfer case, the all-activity module and as of 1.9.00 for the trip computer control module.
