Restraints and Safety Systems: Service and Repair

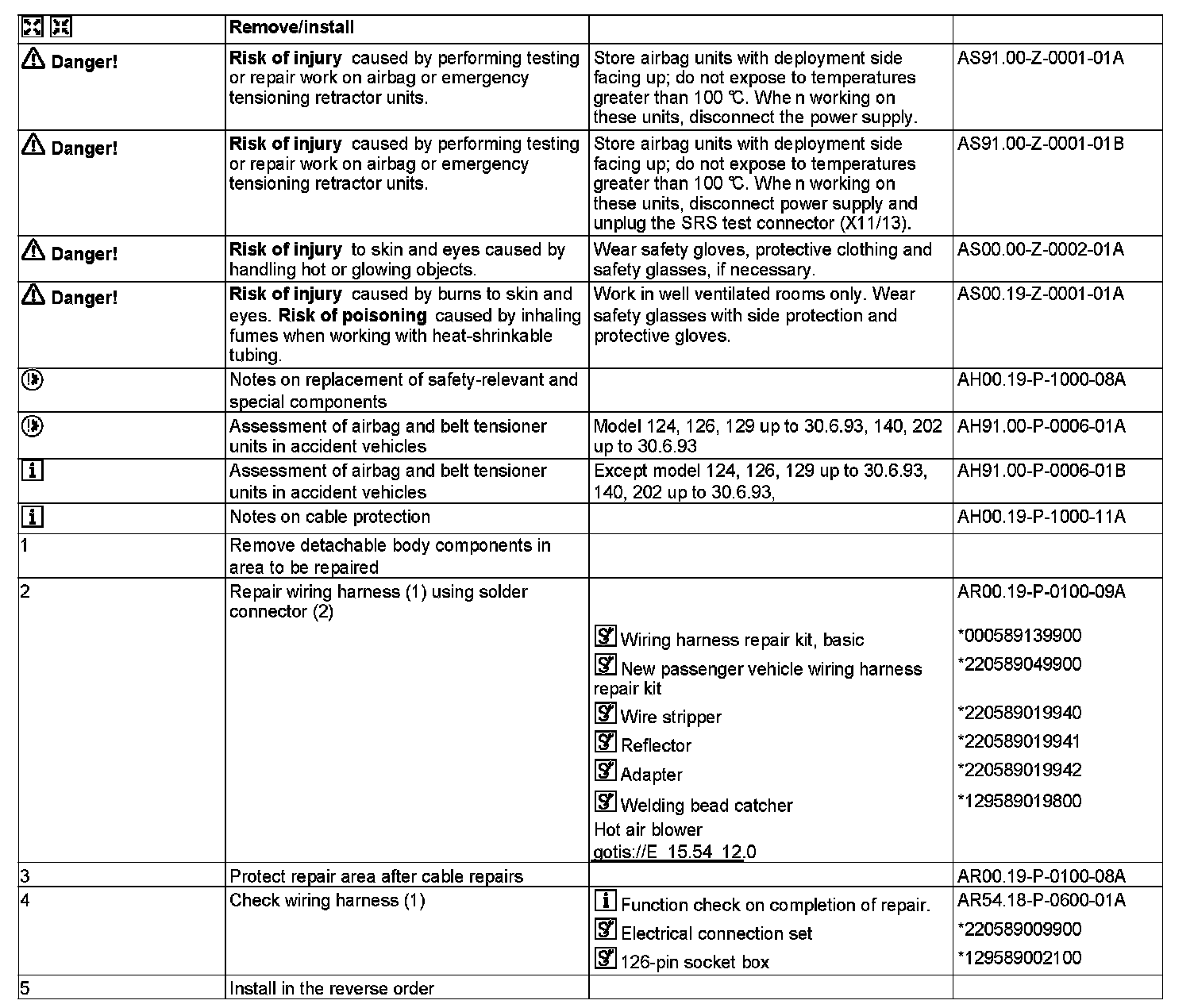

AR54.18-P-0600A Repair Supplemental Restraint System (SRS) Squib Wiring Harness
MODEL 124, 129, 140, 163, 164, 166, 168, 169, 170, 171, 172, 197, 202, 203, 204, 207, 208, 209, 210, 211, 212, 215, 216, 218, 219, 220, 221, 230, 231, 240, 245, 246, 251, 414, 461 as of 1.4.94, 463
MODEL 126
- with CODE (291) Airbag for driver and front passenger (for front passenger only if driver airbag standard)
- with CODE (442) Airbag in steering wheel

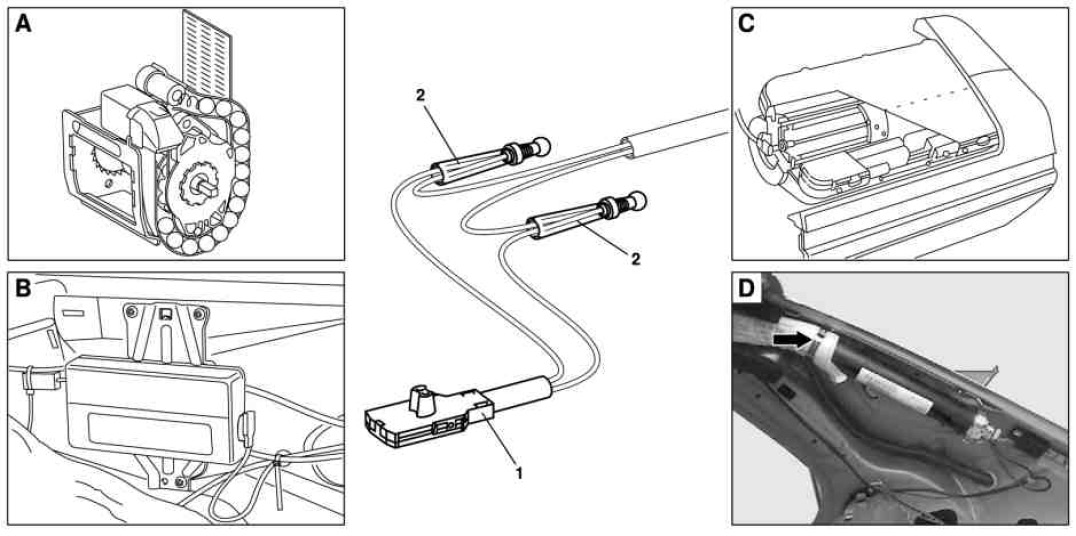

1 Wiring harness
2 Solder connector
A Emergency tensioning retractor unit
B Side bag unit
C Front passenger airbag unit
D Window bag unit

000 589 13 99 00
Wiring harness repair kit, basic

129 589 00 21 00
126-pin socket box

129 589 01 98 00
Welding bead catcher

220 589 00 99 00
Electrical connection kit

220 589 01 99 40
Wire stripper

220 589 01 99 41
Reflector

220 589 01 99 42
Adapter

220 589 04 99 00
New passenger vehicle wiring harness repair kit
