GF54.21-P-4105-03QB Upper Control Panel Control Unit, Design

GF54.21-P-4105-03QB Upper Control Panel Control Unit, Design
- as of 1.9.04

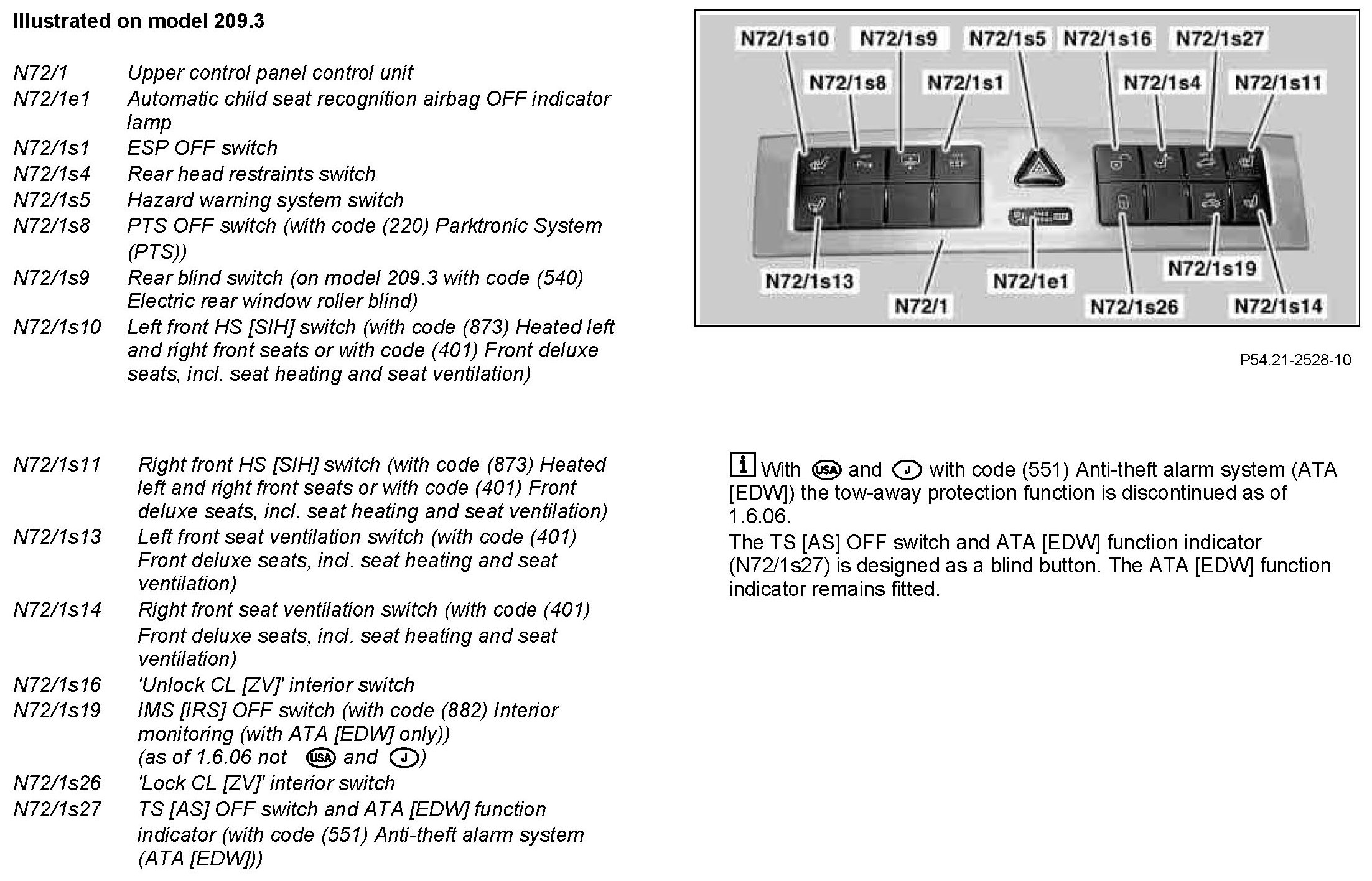

Component Identification:

With (United States of America) and (Japan) with code (551) Anti-theft alarm system (ATA [EDW]) the tow-away protection function is discontinued as of 1.6.06.
The TS [AS] OFF switch and ATA [EDW] function indicator (N72/1s27) is designed as a blind button. The ATA [EDW] function indicator remains fitted.
